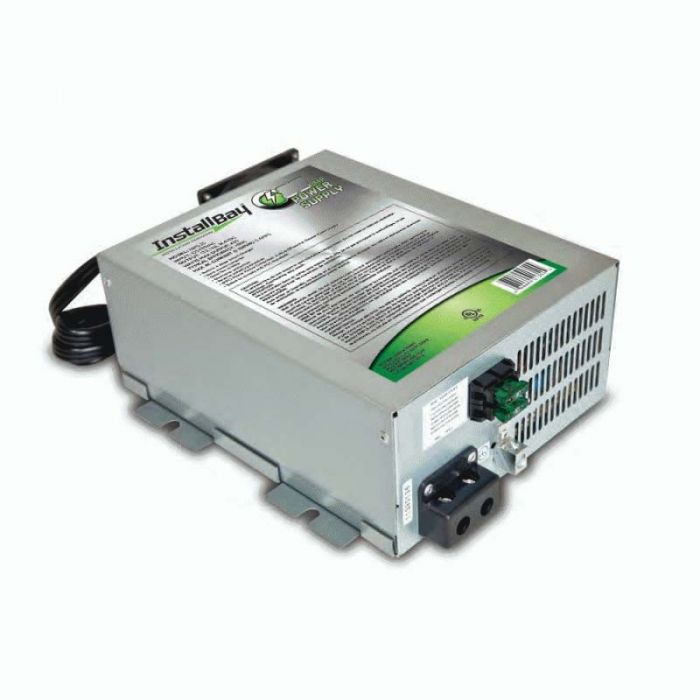

Install Bay IBPS100 100 Amp 4-stage Power supply and Smart Charger
$497.99
In stock
SKU
IBPS100
Expert Knowledge
Talk to a specialist
- 100 Amp 4-stage Power supply and Smart Charger
- Smart charge prevent over-charge situations and maintains battery life
- Adjustable voltage 13.2 Vdc - 16 Vdc
- 1440 Watts Maximum Output
- 4-Gauge output terminals
Unit includes: (1) 100 Amp power supply and Instruction manual
Anderson 943 SB175 Standard High Current power connector
Anderson 943 SB175 Standard High Current power connector
-
Features:
- 100 Amp 4-stage Power supply and Smart Charger
- Smart charge prevent over-charge situations and maintains battery life
- Reverse polarity protection
- Over-temperature protection
- Rated at 100 Amp continuous output
- Adjustable voltage 13.2 Vdc - 16 Vdc
- 1440 Watts Maximum Output
- Stamped steel housing with 4 mounting tabs for permanent installation
- Built in quiet cooling fan
- 4-Gauge output terminals
- UL and CUL Listed and approved
- Tested to comply with FCC standards
- Dimensions:
- Housing: 9-1/4" (W) x 8-3/4" (L) x 3-1/2" (H)
- Specifications:
- Input Range 105-1100 VAC 60 Hz
- 13 Amps Max AC Current @ 108VAC
- Typical Efficiency >93%
| Manufacturer | Metra |
|---|---|
| Part Number | IBPS100 |
| Operation Voltage | 13-16 Volt DC |
| Output gauge | 4 Gauge |
| Output Amperage | 100 Amp |
| Cooling Fan | No |
| UL/Compliance Rating | UL Listed |
| Power consumption Amps | 5 Amps |
| Warranty | 1 Year |
| UPC Code | 086429281152 |
| Return period | 30 days |
| Exchange period | 30 days |
