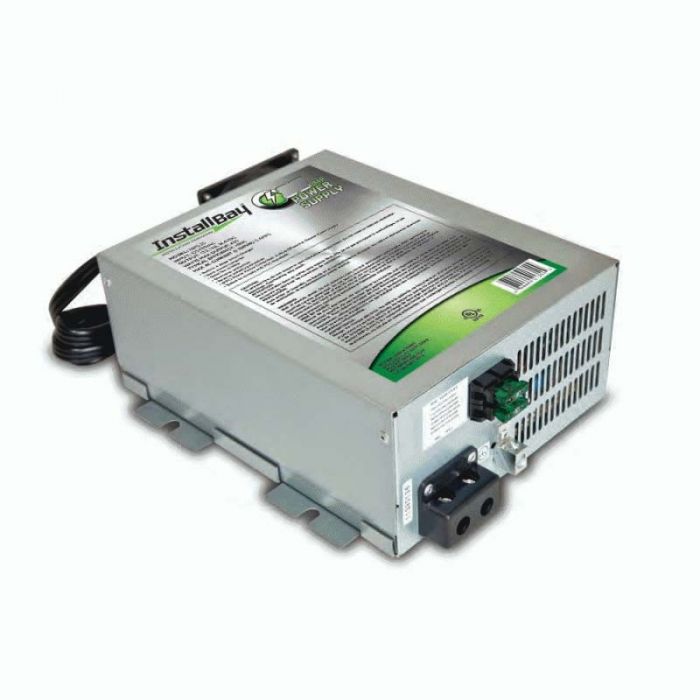

Install Bay IBPS35 35 Amp 4-stage Power supply and Smart Charger

$268.99
In stock
SKU
IBPS35

Key Features

  • 35 Amp 4-stage Power supply and Smart Charger
  • Smart charge prevent over-charge situations and maintains battery life
  • Adjustable voltage 13.2 Vdc - 16 Vdc
  • 430 Watts Maximum Output
  • 4-Gauge output terminals
Unit includes: (1) 35 Amp power supply and Instruction manual

Anderson 943 SB175 Standard High Current power connector

    Features:
  • 35 Amp 4-stage Power supply and Smart Charger
  • Smart charge prevent over-charge situations and maintains battery life
  • Reverse polarity protection
  • Over-temperature protection
  • Rated at 35 Amp continuous output
  • Adjustable voltage 13.2 Vdc - 16 Vdc
  • 430 Watts Maximum Output
  • Stamped steel housing with 4 mounting tabs for permanent installation
  • Built in quiet cooling fan
  • 4-Gauge output terminals
  • UL and CUL Listed and approved
  • Tested to comply with FCC standards
    Dimensions:
  • Housing: 9-1/4" (W) x 8-3/4" (L) x 3-1/2" (H)
    Specifications:
  • Input Range 105-135 VAC 60 Hz
  • 5 Amps Max AC Current @ 108VAC
  • Typical Efficiency >85%
More Information
Manufacturer Metra
Part Number IBPS35
Operation Voltage 13-16 Volt DC
Output gauge 4 Gauge
Output Amperage 35 Amp
Cooling Fan No
UL/Compliance Rating UL Listed
Power consumption Amps 5 Amps
Warranty 1 Year
UPC Code 086429281183
Return period 30 days
Exchange period 30 days
