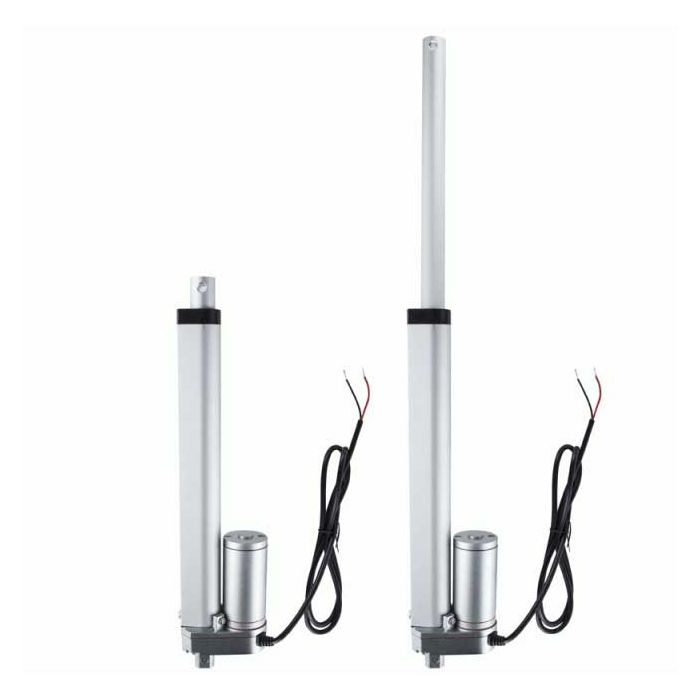

InstallBay FLIN6 12 Volt Linear Actuator with 6" stroke - 110lb Force Capacity
$88.99
In stock
SKU
FLIN6
- 12 Volt Linear Actuator
- Stroke 6"
- Speed: Max 10mm per second
- 110lb Force Capacity
- Low gear and motor noise
- Designed to push or pull a load along its full stroke length
Unit Includes: 6" Linear Actuator
InstallBay FLIN6 12 Volt Linear Actuator with 6" stroke - 110lb Force Capacity
InstallBay FLIN6 12 Volt Linear Actuator with 6" stroke - 110lb Force Capacity
- Features:
- Motorize virtually anything even with minimal space for an actuator with our Quality Mobile Video micro linear actuators
- Not designed for application where there is high moisture, not IP rated
- Low gear and motor noise
- Corrosion resistant aluminum outer tube
- Aluminum extension tube
- Powder coated metal gears
- Simple two wire connection, apply a DC voltage to extend the actuator, and reverse the polarity to retract it
- Designed to push or pull a load along its full stroke length
- Stroke: 6"
- Speed: Max 10mm per second
- Capacity: 110 LB Force
- Voltage: 12 volts DC
- Built in fixed limit switches, these are not adjustable
- Anodized Aluminum housing with high-impact strength plastic end caps and motor housing
- Sold individually
- Dimensions:
- Exdended Lenght: 10-3/4"
Manufacturer | Install Bay |
---|---|
Part Number | FLIN6 |
Warranty | 1 Year |
Actuator load | 110 pounds |
Linear actuator speed | .4 inch per second |
Linear actuator stroke | 6 inch |
Operation Voltage | 12-15 Volt DC |
Waterproof ingress protection | None |
UPC Code | 86429089598 |
Return period | 30 days |
Exchange period | 30 days |
