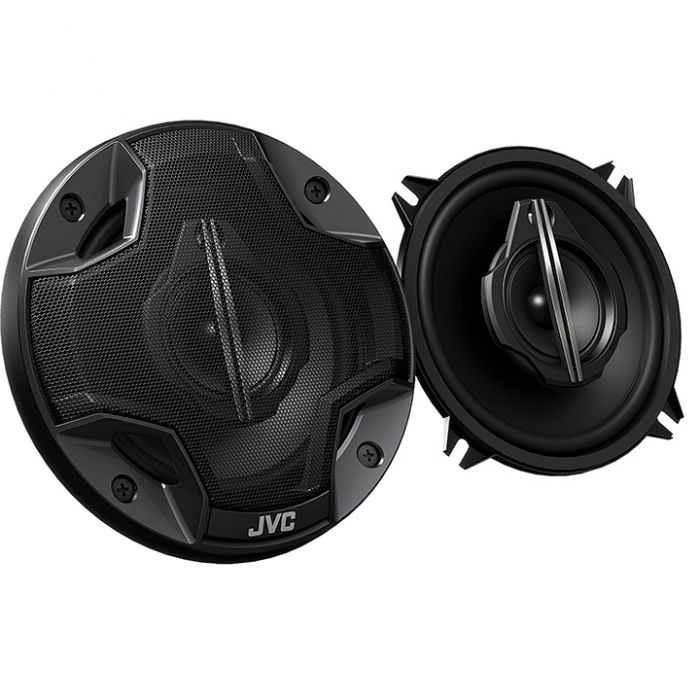

JVC CS-HX539 5 1/4 inch Tri-axial - 3 way Car Speakers
$37.99
In stock
SKU
CSHX539
Expert Knowledge
Talk to a specialist
- JVC CS-HX539 5 1/4 inch Tri-axial - 3 way Car Speakers
- 5 1/4 inch cone woofer with rubber surround
- In-line crossover network for a compact installation
- 4 ohm impedance
- Mounting depth: 1.75 inches
Unit Includes: 5 1/4 inch Speakers, (2) Woofer Grilles, (2) 1 inch tweeters, (2) Mounting cups, (2) Mounting pods, Mounting hardware, Wiring leads, Warranty Card, and Instruction manual
JVC CS-HX539 5 1/4 inch Tri-axial - 3 way Car Speakers
JVC CS-HX539 5 1/4 inch Tri-axial - 3 way Car Speakers
-
Features
- Car 3-Way speaker system for easy installation in factory speaker location
- High quality sound with individual tweeter, midrange and woofer
- 1/2 inch Poly-Ether Imide cone tweeter for crisp highs
- 2-1/16 inch Pulp cone midrange for excellent reproduction of voices
- In-line crossover network for a compact installation without a bulky external crossover
- New shallower mount increasing vehicle and panel compatibillity with minimal tweeter protrusion
- Carbon Mica cone is robust and light weight providing clear undistorted sound
- Hybrid rubber coated surround provides excellent transient response and high efficiency with improvide sonic quality
- 5 1/4 inch Injection PP woofer cone
- Hybrid Rubber coated cloth woofer surround
- Black stamped steel woofer basket
- Ferrite woofer magnet
- 1" Poly-Ether Imide dome tweeter
- Woofer mount depth: 1.75 inches
- Crossover frequency: 4.9 kHz
-
Quick Specs
- Impedance: 4 ohms
- Sensitivity: 87 dB
- Frequency Response: 30 Hz - 25 KHz
-
Power Handling RMS
- 40 watts per speaker
-
Power Handling Max
- 320 watts per pair
-
Dimensions
- Cutout Diameter:
- Mounting Depth: 1.75
| Manufacturer | JVC |
|---|---|
| Part Number | CS-HX539 |
| Speaker Size | 5 1/4 inch |
| Speaker system type | 3 - way |
| Frequency Response | 30 Hz - 25 KHz |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| Power Handling RMS | 40 Watts |
| Power Handling Peak | 320 Watts |
| Sensitivity | 87 dB |
| Mounting Depth | 1.75 Inches |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 046838071089 |
| Return period | 30 days |
| Exchange period | 30 days |
