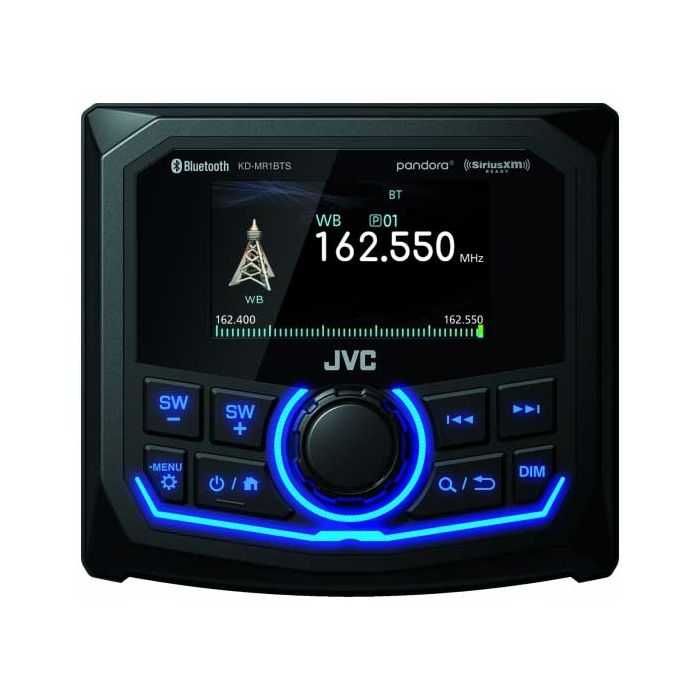

JVC KD-MR1BTS Marine Bluetooth USB Digital Media Receiver with 2.7 inch Display and SiriusXM ready
- Waterproof Bluetooth Marine Receiver with 2.7 inch Display
- IPx6 Water Resistant Design
- AUX and USB Inputs with USB Charging
- Global AM/FM/weather band tuner
- Supports streaming for media devices iPhone/iPod
- 3" Hole Installation
JVC KD-MR1BTS Marine Bluetooth USB Digital Media Receiver with 2.7 inch Display and SiriusXM ready
- Features:
- 3" Hole Installation In-Dash Digital Media Receiver with Bluetooth
- 2.7 inch LCD display
- Blue Button Illumination
- Music Sync Effect changes Illumination patterns according to the rhythm of the music
- Low Battery Information: When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver
- SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
- JVC RM-RK52 Optional Remote Control Sold Separately
- Dual USB ports, front and rear
- Built in Bluetooth with A2DP for wireless audio streaming
- iPhone/Android Bluetooth Automatic Pairing
- Android Open Accessory Protocol (AOA2) and Android™ Music Playback via USB
- AM/FM radio tuner
- Voice control for iPhone, tell your car stereo who to call or what station to listen to
- iPod and iPhone control with standard USB to lightning interface cable, simply connect your iPhone or iPod touch and access your entire music library
- CEA Compliant Amplifier Power Output: 4 channels x 45 watts peak and 4 channels x 16 watts RMS
- MP3, WAV, WMA & FLAC playback from USB
- Displays MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch remote control application
- Pandora, iHeart Radio playback through Bluetooth
- IPX6 Conformal coated circuit board
- Back up camera input
- Audio features:
- Plays MP3, WMA, WAV and FLAC
- Electronic shock protection with built in buffer
- Controls: Volume, Fader, Bass, Treble, Balance
- 7-band customizable Graphic equalizer with 11 presets
- Variable subwoofer level control with selectable Low-Pass and High-Pass digital crossover filter
- MP3 ID3 tag information, display artist and song information
- 24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
- Loudness, Bass Boost, drvnEQ
- Tuner features:
- Includes AM & FM tuner with 30 preset stations memory
- Includes Weather Band tuner with 6 preset stations memory
- RDS (Radio data service) Tuner
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- External microphone for optimal placement
- 2 Phones Full-Time Connection
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Inputs and outputs:
- 3 - 2V preamp outputs (Front, Rear and Subwoofer)
- 1 - USB front accept up to a 32Gb (1.5 amp output)
- 1 - Rear RCA Audio connection for connection to audio devices
- 1 - Rear Bluetooth Microphone input
- 1 - Rear camera RCA input
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 4-9/16"W x 4-3/16"D x 4-5/8"H
Manufacturer | JVC |
---|---|
Part Number | KD-MR1BTS |
NFC (Near Field Communication) | No |
Return period | 30 days |
Exchange period | 30 days |
