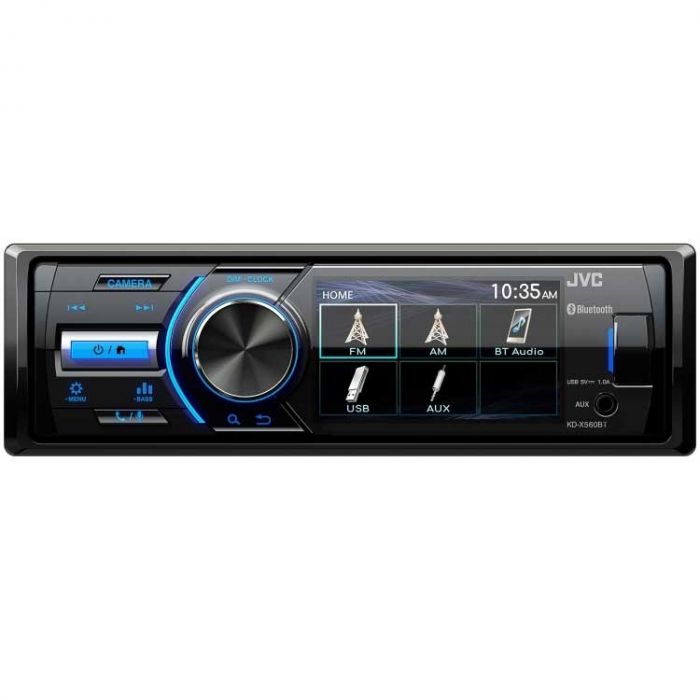

JVC KD-X560BTS Single DIN Marine Bluetooth USB Digital Media Receiver with 3 inch Display
$199.99
In stock
SKU
KD-X560BTS
Expert Knowledge
Talk to a specialist
- Single-DIN In-Dash Marine Digital Media receiver
- Built-in Bluetooth
- 3 inch LCD display
- Built-In MOSFET 45W x 4 Amplifier
- Single front USB ports
- 3 pairs of 42V preamp outputs (front, rear and subwoofer)
- Front 3.5mm Audio connection
Unit includes: Single DIN Stereo, Wiring harness, Mounting hardware, Bluetooth microphone and Instruction manual
JVC KD-X560BTS Single DIN Marine Bluetooth USB Digital Media Receiver with 3 inch Display
JVC KD-X560BTS Single DIN Marine Bluetooth USB Digital Media Receiver with 3 inch Display
- Features:
- Single DIN In-Dash Digital Media Receiver with Bluetooth
- 3 inch LCD display
- Full detachable face-plate for extra security
- Blue Button Illumination
- Music Sync Effect changes Illumination patterns according to the rhythm of the music
- Low Battery Information: When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver
- JVC RM-RK52 Optional Remote Control Sold Separately
- Dual USB ports, front and rear
- Built in Bluetooth with A2DP for wireless audio streaming
- 2 Phones Full-Time Connection
- iPhone/Android Bluetooth Automatic Pairing
- Android Open Accessory Protocol (AOA2) and Android™ Music Playback via USB
- AM/FM radio tuner
- Voice control for iPhone, tell your car stereo who to call or what station to listen to
- iPod and iPhone control with standard USB to lightning interface cable, simply connect your iPhone or iPod touch and access your entire music library
- CEA Compliant Amplifier Power Output: 4 channels x 45 watts peak and 4 channels x 16 watts RMS
- MP3, WAV, WMA & FLAC playback from USB
- Displays MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch remote control application
- Pandora, iHeart Radio and Spotify control
- Conformal coated circuit board
- Back up camera input
- Audio features:
- Plays MP1, MP2, MP3, MP4, H.264, WMA, AAC, WAV, AVI, MKV, JPEG, PNG, BMP and FLAC
- Electronic shock protection with built in buffer
- Controls: Volume, Fader, Bass, Treble, Balance
- 13-band customizable Graphic equalizer with 9 presets
- Variable subwoofer level control with selectable Low-Pass and High-Pass digital crossover filter
- MP3 ID3 tag information, display artist and song information
- 24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
- Loudness, Bass Boost, drvnEQ
- Tuner features:
- Includes AM & FM tuner with 30 preset stations memory
- RDS (Radio data service) Tuner
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- External microphone for optimal placement
- 2 Phones Full-Time Connection
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Inputs and outputs:
- 3 - 2V preamp outputs (Front, Rear and Subwoofer)
- 1 - USB front accept up to a 32Gb (1.0 amp output)
- 1 - Front 3.5mm Audio connection for connection to multiple devices
- 1 - Rear Bluetooth Microphone input
- 1 - Rear camera RCA input
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7-3/16"W x 4-5/8"D x 2-1/8"H
| Manufacturer | JVC |
|---|---|
| Part Number | KD-X560BTS |
| Chassis Size | Single DIN |
| Faceplate features | Detachable face plate |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 2 volts |
| LCD Screen Size | 3 inch - 4 inch |
| Illumination color | Blue |
| Swivel Screen | No |
| Touchscreen | No |
| Widescreen Display | 16:9 Widescreen Display |
| Native Screen Resolution | 800 x 480 |
| Front camera input | No |
| Back up camera input | Yes |
| Audio Video inputs | 1 Audio Video Input |
| Front mounted auxiliary input | 3.5 mm audio/video input |
| Audio Video Outputs | None |
| Built-in DVD Player | No |
| Disc Playback | No |
| Dual Zone Control | Yes |
| SD Card input | No |
| USB input | Yes |
| Smartphone Compatible | Yes |
| Built in Crossover | High-pass, Low-pass, None |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Navigation | No |
| Steering Wheel Control | Yes, requires external module |
| Wireless Remote Control | Optional |
| CEA2006 Compliant | No |
| Warranty | 1 Year parts, 90 day labor |
| Return period | 30 days |
| Exchange period | 30 days |
