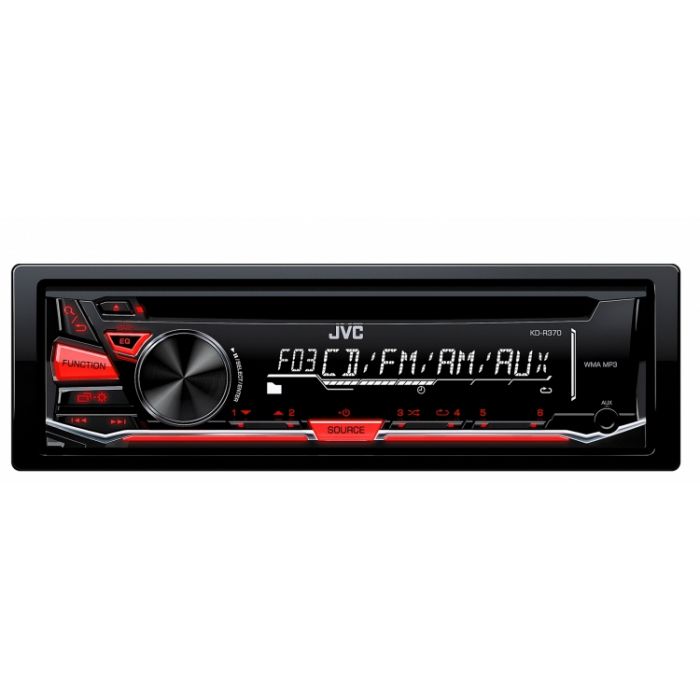

JVC KD-R370K Single DIN CD Receiver
Expert Knowledge
Talk to a specialist
- Single-DIN in-dash CD receiver
- Red Button, White LCD Illumination
- Built-In MOSFET 50W x 4 Amplifier
- 1 set of 2.5 volt RCA outputs
- Front 3.5mm Audio connection
JVC KD-R370K Single DIN CD Receiver
- Features:
- Single DIN In-Dash CD receiver
- Full detachable face-plate for extra security
- 2-Line VA(Vertical Alignment) LCD Display with animation effects
- Red Button, White LCD Illumination
- White LCD Illumination
- AM/FM radio tuner
- Spanish Text Display Compatible
- Power Output: 4 channels x 50 watts peak and 4 channels x 22 watts RMS
- MP3, WMA playback from CD
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Audio features:
- Plays CD, CD-R, CD-RW, MP3, MP3, WMA
- Controls: Volume, Fader, Bass, Treble, Balance
- 3-band customizable Graphic equalizer with 13 presets
- Variable subwoofer level control with selectable Low-Pass digital crossover filter
- CD text information, display artist and song information
- MP3 ID3 tag information, display artist and song information
- Tuner features:
- Includes AM & FM tuner with 24 preset stations memory
- Best Station Memory (BSM)
- RDS (Radio data service) Tuner
- Inputs and outputs:
- 1 - 2.5V preamp outputs (front, rear or subwoofer)
- 1 - Front 3.5mm Audio connection for connection to multiple devices
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7-3/16"W x 6-1/4"D x 2-1/8"H
| Manufacturer | JVC |
|---|---|
| Part Number | KD-R370K |
| Chassis Size | Single DIN |
| Illumination color | Red |
| 2-Zone Color Illumination | Yes, Single-Color |
| Faceplate features | Detachable face plate |
| Disc Playback | CD |
| Anti-Shock | Yes |
| Amazon Alexa | No |
| Built in Bluetooth | No Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Front mounted auxiliary input | 3.5 mm audio input |
| USB input | No |
| SD Card input | No |
| Audio Formats | Mpeg-3, WMA |
| Time Alignment | No |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 2.5 volts2.5 volts |
| Steering Wheel Control | No |
| Built in Crossover | High-pass, Low-pass |
| Wireless Remote Control | No |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
