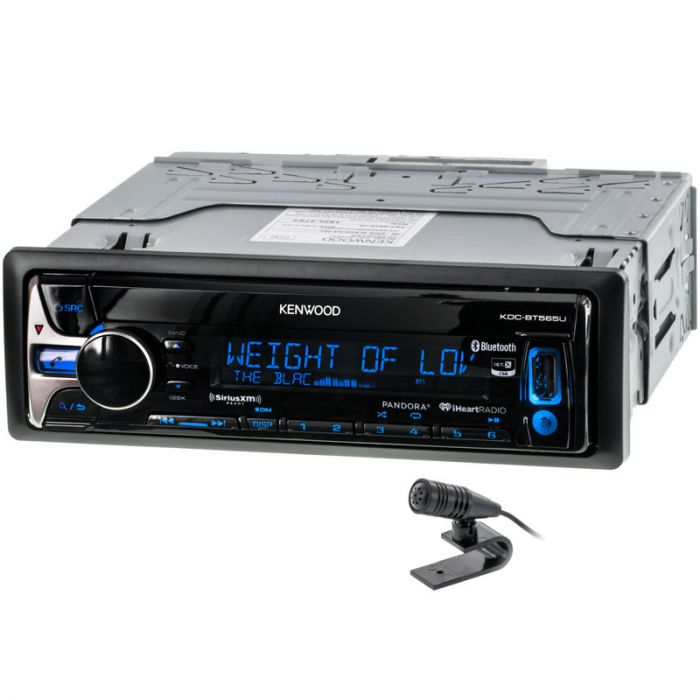

Kenwood KDC-BT565U Single DIN CD Car Stereo Receiver with Bluetooth

$117.99
Out of stock
SKU
KDC-BT565U

Key Features

  • Single DIN In-Dash CD receiver
  • Full detachable face-plate for extra security
  • Front USB input for thumb-drives
  • AM/FM tuner
  • 13-band EQ
  • SiriusXM radio ready
  • Steering wheel control input
  • 2.5V preamp outputs (Front, Rear and Subwoofer)
Unit includes: Single DIN Stereo, Wiring harness, Remote control, Mounting hardware, Bluetooth microphone and Instruction manual

Kenwood KDC-BT565U Single DIN CD Car Stereo Receiver with Bluetooth

    Features:
  • Single DIN In-Dash CD receiver
  • Full detachable face-plate for extra security
  • Multi-Segmented 13 Digital 1.5 Line LCD Display
  • Variable button illumination for perfect matching of your factory button color
  • Dimmer and brightness control
  • Built in Bluetooth for phone calls and wireless audio streaming
  • AM/FM tuner
  • Siri Eyes Free voice control for iphone
  • Android Rapid Charge
  • Android Music Playback
  • Compatible Kenwood Music Play Android App
  • iPod interface control (30 Pin connector) with optional KCA-iP102 cable
  • iPod interface control (Lightning connector) with optional KCA-iP103 cable
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
  • Hidden CD-slot for extra clean look
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Steering wheel control input
  • Front USB input for thumb-drives


Media playback features:
  • Plays CD, CD-RW, CD-R, MP3, WMA, AAC, WAV, and FLAC files
  • Electronic shock protection with built in buffer
  • MP3/WMA/iTunes AAC/FLAC Audio Playback on CD/USB
  • MP3 ID3 tag information, display artist and song information
  • Linear PCM decoder for excellent digital audio quality
  • FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
  • Pandora® Radio App Compatible from iPod touch, iPhone with proper cable
  • Pandora® Radio App Compatible from Android and Blackberry through Bluetooth
  • iHeart® Radio App Compatible from iPod touch, iPhone with proper cable


Audio features:
  • 13-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / User / Jazz)
  • Manual EQ with 62.5 Hz / 100Hz / 160 Hz / 250 Hz / 400 Hz / 630 Hz / 1 kHz / 1.6 kHz / 2.5 kHz / 4 kHz / 6.3 kHz / 10 kHz / 16 kHz frequency centers ±9dB
  • Tweeter High-Pass filter with variable slopes and crossover frequencies (Adjustable from 1 kHz to 12.5 kHz) and (Adjustable left and right gain from -6dB - 0dB
  • Front High-Pass filter with variable slopes and crossover frequencies (Adjustable from 30 to 250 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
  • Rear High-Pass filter with variable slopes and crossover frequencies (Adjustable from 30 to 250 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
  • Variable subwoofer level control (-50dB to +10dB) with selectable Low-Pass digital crossover filter (Adjustable from 30 to 250 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB / -24dB)
  • Subwoofer phase control 0° - 180°
  • Speaker size setup for perfect crossover mapping from subwoofer to door speakers (3.5" / 4" / 4.75" / 5" / 6.5" / 6.75" / 7" / 4x6" / 5x7" / 6x8" / 6x9" / 7x10")
  • Boost bass with 6 levels Level1 / Level2 / Level3 / Level4 / Level5 / Off
  • Sound reconstruction restores digital files
  • Loudness function (Boost bass and upper frequencies)
  • Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
  • Digital time alignment with independent front, rear, and subwoofer delay


Tuner features:
  • Includes AM & FM tuner with 24 preset stations memory
  • RDSB (Radio data service) Tuner
  • SiriusXM radio ready with SXV300 Sirius XM tuner
  • SiriusXM radio replay, replay up to the last 60 minutes of your current channel
  • SiriusXM radio SmartFavorites - automatically buffers the broadcast audio content of SmartFavorites channels in the background so you can rewind or replay any missed content


    Bluetooth features:
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 3.0 certified
  • Bluetooth 2.1+ EDR certified
  • Siri Eyes Free voice support
  • Dual Phone connection capable
  • Android Rapid Charge
  • Bluetooth Auto Pairing
  • Wireless Music Browsing


Inputs and outputs:
  • 3 - 2.5V preamp outputs (Front, Rear and Subwoofer)
  • 1 - 3.5mm front audio input for connection to external source
  • 1 - SiriusXM radio tuner input
  • 1 - Rear USB connection
  • 1 - Rear microphone input
  • 1 - Steering wheel control input requires ASWC steering wheel interface


    Dimensions:
  • Single DIN chassis
  • Dimensions: 7"W x 6-1/4"D x 2"H
More Information
Manufacturer Kenwood
Part Number KDC-BT565U
Chassis Size Single DIN
Illumination color Full Color
Faceplate features Detachable face plate
Disc Playback CD
Anti-Shock Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
Front mounted auxiliary input 3.5 mm audio input
Audio Video inputs 1 Audio Input
USB input Yes
SD Card input No
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 2 volts
Steering Wheel Control Yes, requires external module
Built in Crossover Band-pass, High-pass, Low-pass
Wireless Remote Control Yes
Warranty 1 Year
UPC Code 019048213501
Return period 30 days
Exchange period 30 days
