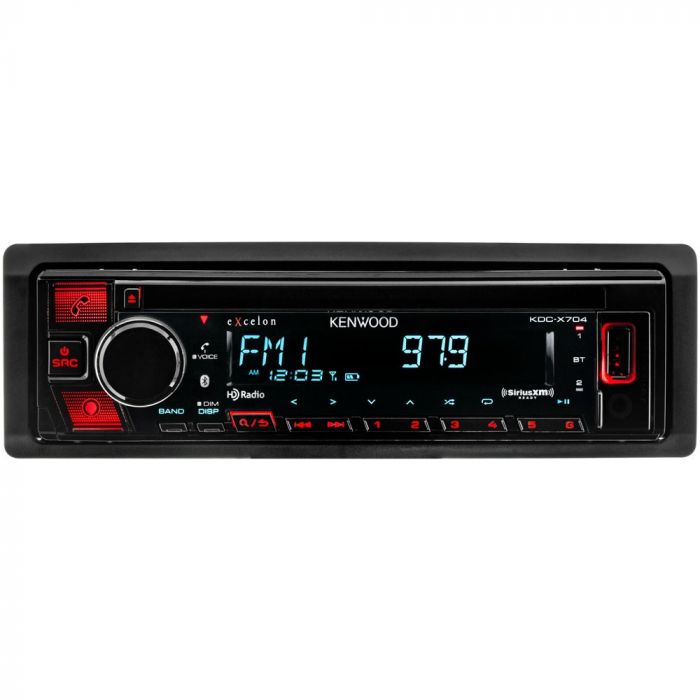

Kenwood eXcelon KDC-X704 Single DIN Car Stereo receiver with Bluetooth, HD Radio and Amazon Alexa

Description

Unit includes: Single DIN Stereo, Wiring harness, Mounting hardware, Bluetooth microphone and Instruction manual

Kenwood eXcelon KDC-X704 Single DIN Car Stereo receiver with Bluetooth, HD Radio and Amazon Alexa

Features:

Single DIN In-Dash CD Receiver
Built in Bluetooth with A2DP for wireless audio streaming
Built-In Amazon Alexa
HD Radio
Full detachable face-plate for extra security
Disc Slot features Anit-dust CD Door Cover
2-Zone Variable-Color Illumination
1.5 line LCD display with variable-color illumination
Music Mix: Up to 5 Bluetooth devices can be connected to the head unit at the same
SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
2 Phones Full-Time Connection
AM/FM radio tuner
Multi language(English, Spanish)
Kenwood App Remote lets you control receiver settings with your smartphone
Voice control for iPhone via Siri
iPod and iPhone control with standard USB to lightning interface cable, simply connect your iPhone or iPod touch and access your entire music library
Power Output: 4 channels x 50 watts peak and 4 channels x 22 watts RMS
MP3, AAC, WAV, WMA & FLAC playback from USB
Displays CD text and MP3 ID3 Tag including title, artist & album
Easily accessible with wireless remote and graphic touch screen
Pandora, iHeart Radio and Spotify control
Kenwood Remote app control
Kenwood Sound Reconstruction, restores musical to compressed music

Audio features:

Plays CD, CD-R, CD-RW, MP3, ACC, WAC, WMA and FLAC
Electronic shock protection with built in buffer
Controls: Volume, Fader, Bass, Treble, Balance
13-band customizable Graphic equalizer with 8 presets
Variable subwoofer level control with selectable Low-Pass and High-Pass digital crossover filter
Digital Time Alignment
Volume Offset
Sound Effects: Stage EQ, Drive EQ, Sound Realizer
Speaker Selection
Vehicle Selection
Sound Reconstruction
Loudness and Bass Boost
CD text information, display artist and song information
MP3 ID3 tag information, display artist and song information
24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback

Tuner features:

Includes AM & FM tuner with 24 preset stations memory
Best Station Memory (BSM)
RDS (Radio data service) Tuner
SiriusXM radio ready with SXV300 Sirius XM tuner

Amazon Alexa

Built-In Amazon Alexa

Ask Alexa to play music, hear the news, check weather, control smart home devices, and more

Voice Recognition

Bluetooth features:

Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
External microphone for optimal placement
2 Phones Full-Time Connection
Music Mix: Up to 5 Bluetooth devices can be connected to the head unit at the same
Bluetooth 2.0+ certified
Compatible with most Bluetooth phone that support Bluetooth 2.0 and above

Inputs and outputs:

3 - 5V pre-amp outputs (front, rear and subwoofer)
2 - USB rear connection, accept up to a 32Gb
1 - Rear 3.5mm Audio connection for connection to multiple devices
1 - Rear Bluetooth Microphone input
1 - Rear Radio Antenna Adapter
1 - Steering wheel control input requires ASWC steering wheel interface

Dimensions:

Single DIN chassis
Dimensions: 7-3/16"W x 4-3/16"D x 2"H

Specifications

More Information
Manufacturer	Kenwood
Part Number	KDC-X704
Chassis Size	Single DIN
Illumination color	Full Color
Faceplate features	Detachable face plate
Disc Playback	CD
Built in Bluetooth	Built in Bluetooth
NFC (Near Field Communication)	No
HD Radio	Yes
Satellite Radio	Sirius XM Ready
Front mounted auxiliary input	3.5 mm audio input
Audio Video inputs	1 Audio Input
USB input	Yes
Audio Formats	AAC, FLAC, Mpeg-3, WAV, WMA
RCA Pre-amp Audio outputs	3 Pairs (Front, Rear, Sub)
Preamp voltage	5 volts
Steering Wheel Control	Yes, requires external module
Built in Crossover	High-pass, Low-pass
Warranty	1 Year
UPC Code	019048228925
Return period	30 days
Exchange period	30 days
