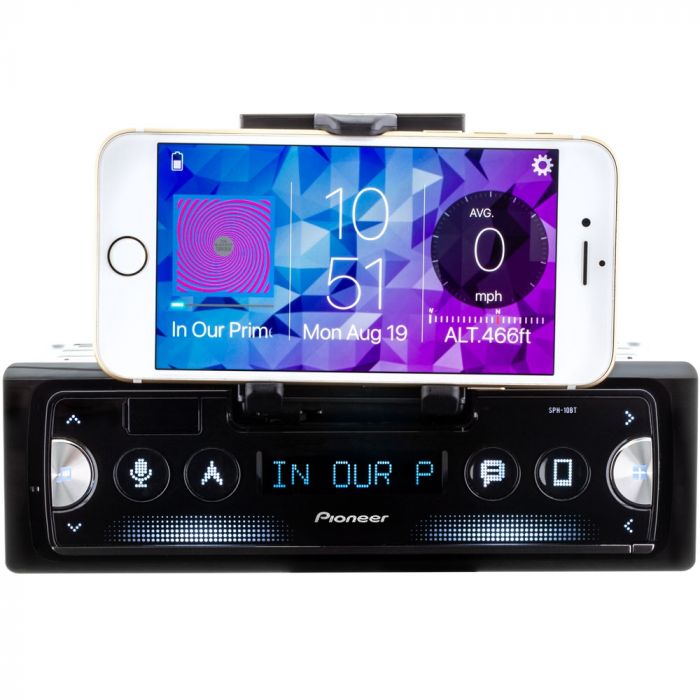

Pioneer SPH-10BT Smart Sync Single DIN Receiver with Built-In Smartphone Cradle, Bluetooth and USB
Expert Knowledge
Talk to a specialist
- Smart Sync Single DIN In-Dash car stereo receiver
- Full Color Illumination
- Android and iOS support
- MP3, WAV, AAC, WMA and FLAC playback from USB
- Pioneer Smart Sync to integrate music, navigation, safety and messaging apps
- 31-band Graphic equalizer with preset and custom options
- High, Low pass crossovers with subwoofer control
Pioneer SPH-10BT Smart Sync Single DIN Receiver with Built-In Smartphone Cradle, Bluetooth and USB
-
Features:
- Smart Sync Single DIN In-Dash car stereo receiver
- Pop-out smartphone cradle for touchscreen control via Pioneer Smart Sync app
- Pioneer Smart Sync to integrate music, navigation, safety and messaging apps
- Built in Bluetooth with HFP, A2DP, AVRCP, SSP, for wireless audio streaming and wireless phone operation
- Stereo can operate closed without cradle
- Full Color Illumination
- No Disc Slot
- Android Music Support: MTP and AOA 2.0
- Dual Bluetooth connectivity
- 31-band Graphic equalizer with preset and custom options
- No smartphone playback via USB port, only USB Thumb Drive
- Power Output:4 channels x 50 watts peak, 4 channels x 17 watts RMS
- MP3, WAV, AAC, WMA and FLAC playback from USB
-
Digital Media Playback features:
- Plays MP3, WAV, AAC, WMA and FLAC files via USB Thumb Drive
- MP3 ID3 tag information, display artist and song information
- Electronic shock protection with built in buffer
- Music text information, display artist and song information
- Includes Supertuner IIID AM & FM tuner with 24 station 6 presets memory
-
Pioneer Smart Sync
- Links your smartphone to Pioneer car audio and entertainment systems
- With the Pioneer Smart Sync app, you can bring your smartphone’s maps, messages, and music together in the car
- Pioneer SPH-10BT features new buttons such as NAV, BASS Boost and a Rotary knob that are optimized with the Pioneer Smart Sync App
- Access your music, navigation, and messaging apps from one location while driving
- Voice Recognition
- Hands Free Calling
- Variable Wallpapers
- SiriusXM radio ready via Smart Sync and Sirius XM App
-
Audio features:
- Controls: Volume, Fader, Bass, Treble, Balance
- 31-band Graphic equalizer with preset and custom options
- Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160
- High-Pass filter with variable slopes and crossover frequencies
- Low-Pass filter with variable slopes and crossover frequencies
- Digital Time Alignment
- Advanced Sound Retriever
- Listening Position Select
- Tuner features:
- Includes Supertuner IIID AM & FM tuner with 18 preset stations memory
- Best station memory
- Local seek
- RDS (Radio data service) Tuner
- SiriusXM radio ready via Smart Sync and Sirius XM App
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP 1.6 : Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- SPP: Serial Port Profile
- SSP - Secure Simple pairing
- Guest mode
- Dual phone connection supported
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0+ certified
-
Inputs and outputs:
- 3 - 2V preamp outputs (front, rear and subwoofer)
- 1 - Front USB connection
- 1 - Radio Antenna
- 1 - ND-PS1 backup sensor system input
- 1 - Front 3.5mm Audio connection for connection to multiple devices
- 1 - Steering wheel control input requires ASWC steering wheel interface
-
Dimensions:
- Singel DIN chassis
- Dimensions: 7"W x 4-1/8"D x 2"H
| Manufacturer | Pioneer |
|---|---|
| Part Number | SPH-10BT |
| Chassis Size | Single DIN |
| Faceplate features | Detachable face plate |
| RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear/Sub) |
| Preamp voltage | 4 volts |
| Illumination color | Full Color |
| Touchscreen | No |
| Front camera input | No |
| Back up camera input | No |
| Built-in DVD Player | No |
| Disc Playback | No |
| SD Card input | No |
| USB input | Yes |
| Smartphone Compatible | Yes |
| Built in Crossover | High-pass, Low-pass |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Navigation | via Smartphone |
| Steering Wheel Control | Yes, requires external module |
| CEA2006 Compliant | No |
| Warranty | 1 Year |
| UPC Code | 8.84938E+11 |
| Return period | 30 days |
| Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
