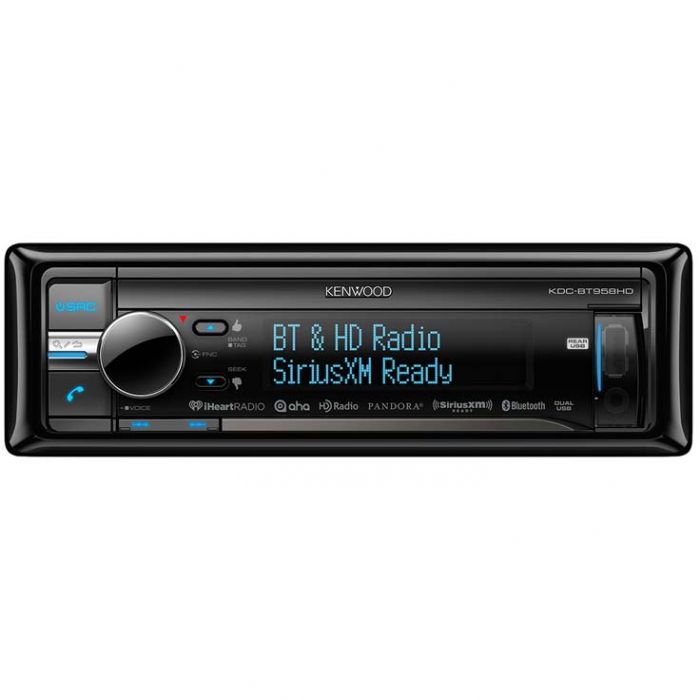

Kenwood KDC-BT958HD Single DIN CD Car Stereo Receiver with Bluetooth and HD-Radio
- Single DIN In-Dash CD receiver
- Full detachable face-plate for extra security
- Dual USB input for thumb-drives
- AM/FM HD-Radio tuner
- Full DSP with 7-band EQ, Time alignment, and digital crossovers
- SiriusXM radio ready
- Steering wheel control input
- 4V preamp outputs (Front, Rear and Subwoofer)
Kenwood KDC-BT958HD Single DIN CD Car Stereo Receiver with Bluetooth and HD-Radio
- Features:
- Single DIN In-Dash CD receiver
- Full detachable face-plate for extra security
- Full dot matrix 3 Line LCD Display
- Variable button illumination for perfect matching of your factory button color
- Automatic dimmer and brightness control
- Built in Bluetooth for phone calls and wireless audio streaming
- AM/FM HD-Radio tuner
- Siri Eyes Free voice control for iphone
- Android Music Playback
- Compatible Kenwood Music Play Android App
- iPod interface control (30 Pin connector) with optional KCA-iP102 cable
- iPod interface control (Lightning connector) with optional KCA-iP103 cable
- Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 22 watts RMS
- Hidden CD-slot for extra clean look
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Steering wheel control input
- Front USB input for thumb-drives
Media playback features:
- Plays CD, CD-RW, CD-R, MP3, WMA, AAC, WAV files
- Electronic shock protection with built in buffer
- MP3/WMA/iTunes AAC Audio Playback on CD/USB
- MP3 ID3 tag information, display artist and song information
- Pandora® Radio App Compatible from iPod touch, iPhone with proper cable
- Pandora® Radio App Compatible from Android and Blackberry through Bluetooth
- iHeart® Radio App Compatible from iPod touch, iPhone with proper cable, Android through Bluetooth
- Aha® Radio App Compatible from iPod touch, iPhone with proper cable, Android through Bluetooth
Audio features:
- 7-band parametric equalizer with 8 preset and custom options (Drive EQ / Natural / Rock / Pops / Easy / Powerful / User / Jazz)
- Manual EQ with 62.5 Hz / 160 Hz / 400 Hz / 1 kHz / 2.5 kHz / 6.3 kHz 16 kHz frequency centers ±9dB
- Front High-Pass filter with variable slopes and crossover frequencies (Adjustable from 40 to 220 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
- Rear High-Pass filter with variable slopes and crossover frequencies (Adjustable from 40 to 220 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
- Variable subwoofer level control (-15dB to +15dB) with selectable Low-Pass digital crossover filter (Adjustable from 40 to 220 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB / -24dB)
- Subwoofer phase control 0° - 180°
- Speaker size setup for perfect crossover mapping from subwoofer to door speakers (Small / Medium / Large)
- Boost bass with 6 levels Level1 / Level2 / Level3 / Off
- Loudness function (Boost bass and upper frequencies)
- Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise
- Digital time alignment with independent front, rear, and subwoofer delay
Tuner features:
- Includes HD Radio AM & FM tuner with 24 preset stations memory
- iTunes tagging
- RDS (Radio data service) Tuner
- SiriusXM radio ready with SXV300 Sirius XM tuner
- SiriusXM radio replay, replay up to the last 60 minutes of your current channel
- SiriusXM radio SmartFavorites - automatically buffers the broadcast audio content of SmartFavorites channels in the background so you can rewind or replay any missed content
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.1+ EDR certified
- Siri Eyes Free voice support
- Bluetooth Auto Pairing
Inputs and outputs:
- 3 - 4V preamp outputs (Front, Rear and Subwoofer)
- 1 - 3.5mm front audio input for connection to external source
- 1 - SiriusXM radio tuner input
- 1 - Front USB connection
- 1 - Rear USB connection
- 1 - Rear microphone input
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7"W x 6-1/4"D x 2"H
Manufacturer | Kenwood |
---|---|
Part Number | KDC-BT958HD |
Chassis Size | Single DIN |
Illumination color | Full Color |
Faceplate features | Detachable face plate |
Disc Playback | CD |
Anti-Shock | Yes |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | Yes |
Radio Data Service - RDS | Yes |
Satellite Radio | Sirius XM Ready |
Front mounted auxiliary input | 3.5 mm audio input |
Audio Video inputs | 1 Audio Input |
USB input | Yes |
SD Card input | No |
Audio Formats | AAC, Mpeg-3, WAV, WMA |
RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
Preamp voltage | 4 volts |
Steering Wheel Control | Yes, requires external module |
Built in Crossover | High-pass, Low-pass |
Wireless Remote Control | Yes |
Warranty | 1 Year |
UPC Code | 0019048206541 |
Return period | 30 days |
Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
-
