JVC KW-R940BTS Double-DIN In-Dash CD Receiver with Amazon Alex and Bluetooth
Expert Knowledge
Talk to a specialist
- Double-DIN in-dash CD receiver
- 13-digit LCD dual-line display with 2-zone variable color display
- Plays USB drives loaded with MP3, WMA, WAV, AAC, and FLAC music files
- Built-In MOSFET 50W x 4 Amplifier
- Alexa, iHeart, Pandora and Spotify support
- 3 sets of 4 volt RCA outputs
- Built in Bluetooth with A2DP for wireless audio streaming
- Double DIN radio
- (1) Wiring harness
- (2) Antennas
- Mounting hardware
- External microphone
- Instruction manual
- Features:
- Double DIN In-Dash CD receiver
- 13-digit LCD dual-line display with 2-zone variable color display
- Built in Bluetooth with A2DP for wireless audio streaming
- iPhone compatibility via USB
- AM/FM radio tuner
- Voice control for iPhone, tell your car stereo who to call or what station to listen to
- iPod with USB, simply connect your iPhone or iPod touch and access your entire music library
- Pandora support with USB, simply connect your iPhone or iPod touch and stream Pandora
- App Mode for direct control of your iPhone and iPod apps
- Power Output: 4 channels x 50 watts peak and 4 channels x 22 watts RMS
- Plays USB drives loaded with MP3, WMA, WAV, AAC, and FLAC music files (FLAC files up to 16-bit/96kHz)
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Easily accessible with wireless remote and graphic touch screen
- Auto dimmer and brightness controls for illuminated buttons and display
- Amazon Alexa compatible
- Media Playback features:
- Plays USB drives loaded with MP3, WMA, WAV, AAC, and FLAC music files (FLAC files up to 16-bit/96kHz)
- MP3 ID3 tag information, display artist and song information
- Electronic shock protection with built in buffer
- CD text information, display artist and song information
- Includes Supertuner IIID AM & FM tuner with 24 station 6 presets memory
- Audio features:
- Controls: Volume, Fader, Bass, Treble, Balance
- 13-band Graphic equalizer with preset and custom options
- Variable subwoofer level control with selectable Low-Pass digital crossover filter
- High-Pass filter with variable slopes and crossover frequencies
- Bass Boost
- Loudness: 3 Modes
- Built in time-alignment
- Listening Position
- Advanced Sound Retriever
- Built-in MOSFET 50W x 4 Amplifier
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Inputs and outputs:
- 3 - Sets of 4V preamp outputs (front, rear and subwoofer)
- 1 - Front USB connection
- 1- Front 3.5mm Audio connection for connection to multiple devices
- 1 - Satellite Radio Input - SiriusXM Radio ready with SXV300V1 Sirius XM Connect Satellite Radio Tuner
- 1 - Steering wheel control requires ASWC steering wheel interface
- Double DIN chassis
- Dimensions: 7"W x 7-1/8"D x 3-15/16"H
- Dimensions:
| Manufacturer | JVC |
|---|---|
| Part Number | KW-R940BTS |
| Chassis Size | Double DIN |
| Illumination color | Full Color |
| 2-Zone Color Illumination | Yes, Variable-Color |
| Faceplate features | None |
| Disc Playback | CD |
| Amazon Alexa | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | Sirius XM Ready |
| Front mounted auxiliary input | 3.5 mm audio input |
| Audio Video inputs | None |
| Audio Video Outputs | None |
| USB input | Yes |
| SD Card input | No |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| Time Alignment | Yes |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 4 volts |
| Steering Wheel Control | Yes, requires external module |
| Built in Crossover | High-pass, Low-pass |
| Wireless Remote Control | Optional |
| Warranty | 1 Year |
| UPC Code | 046838080746 |
| Return period | 30 days |
| Exchange period | 30 days |
Our testing and analysis of the JVC KW-R940BTS
JVC KW-R940BTS is one hell of a bargain stereo and more than an upgrade to the factory stereo in your 2002 Civic. It gets the job done with all the features that you really need at a cost at $150, plus a few unique ones, all while looking great.
What's inside the box
Inside the box is a wiring harness, external microphone for hands free calling, hardware, warranty card, instruction manual, and double din stereo.
Rear connections
The rear connections include bluetooth microphone, radio antenna, 2.5V RCA pre-amp outputs for front, rear and subwoofer, Sirius XM, and wiring harness for power, ground and speaker.

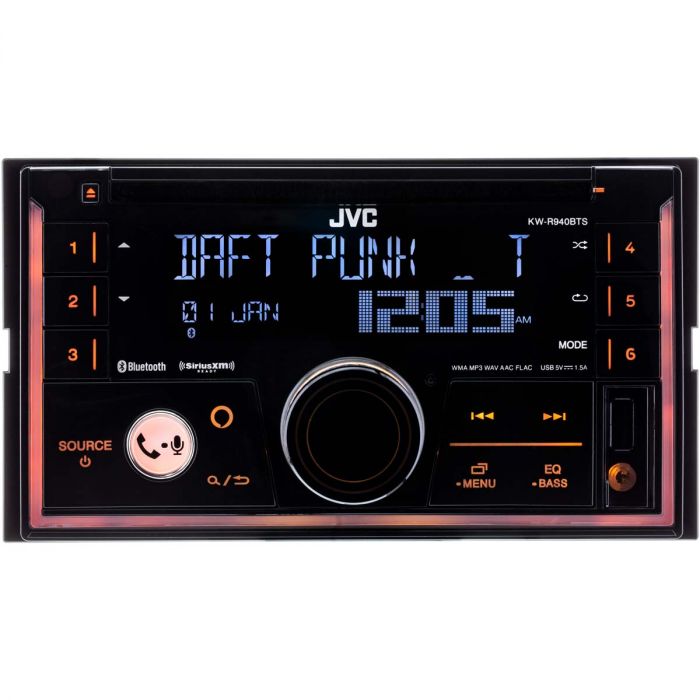

Design
JVC’s KW-R940BTS is the updated version of the KW-R930BTS, and I was only able to find one change to the new model, built-in Amazon Alexa. The R930 was a complete redesign, but the R940 is virtually identical to it. They completely redesigned the whole stereo, and I’m loving it. The rotary dial was smooth as butter. And it does have a disc slot, so no need to throw out those old Nelly mixes you made with Limewire in 2003.
The KW-R940BTS probably has the most unique dual zone color illumination that I’ve seen, with not only customizable RGB color selection for each zone, but also several preset color animations like sunset, flower, ocean, etc. So soothing. The 2 line- VA LCD display only has white illumination.
Extras
When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver. For our bi-lingual customers, the on-screen display menu is now available in Spanish. Use JVC’s Remote App to control the stereo with your iOS or Android device. For our bi-lingual customers, the on-screen display menu is now available in Spanish.
Audio sources
Bluetooth also provides hands-free calling with full access to your phone to receive, send or end calls, and wireless music playback with tags for tracks and artist names. Connect two phones at the same time. There is one front USB port which also provides music streaming from an iPhone or Android device, as well as 1.5A phone charging.
Music app sources include Pandora, iHeartRadio and Spotify, but any music or radio app will work via the BT Audio and USB source. Use a USB thumb drive to play stored audio files. It is compatible with MP3, WMA, WAV, AAC and FLAC files. The front USB is accompanied by a rear 3.5mm Auxiliary input for audio as well.
The stereo is Sirius XM Ready with the SXV300V1 tuner, and SWC ready with the Axxess ASWC-1 interface, links in the video bio.The radio tuner features 18 FM and 6 AM preset memory. The stereo does noy come with a wireless remote control, purchase the RM-RK52 separately.
JVC KW-R940BTS Testing
Let’s test this stereo out, JVC rates the stereo 20W x 4 channels.
KW-R940BTS Two channels driven, 4 ohm, 1 KHz, 14.4v
Volume number: 33
HP8903B Audio Analyzer: 19.23W RMS per channel, 1.02% distortion and 8.7 volts of output.
AMM-1: 14 Watts
KW-R940BTS Two channels driven, 4 ohm, 40 Hz, 14.4v
Volume number: 33
HP8903B Audio Analyzer: 18.97W RMS per channel, 1.08% distortion and 8.64 volts of output.
AMM-1: 15 Watts
KW-R940BTS RCA outputs, 1 KHz, 14.4v
Volume number: Full volume
HP8903B Audio Analyzer: 4.67 Volts RMS per channel, 1% distortion.
KW-R940BTS RCA outputs, 40 Hz, 14.4v
Volume number: Full volume
HP8903B Audio Analyzer: 4.63 Volts RMS per channel, 1% distortion.
