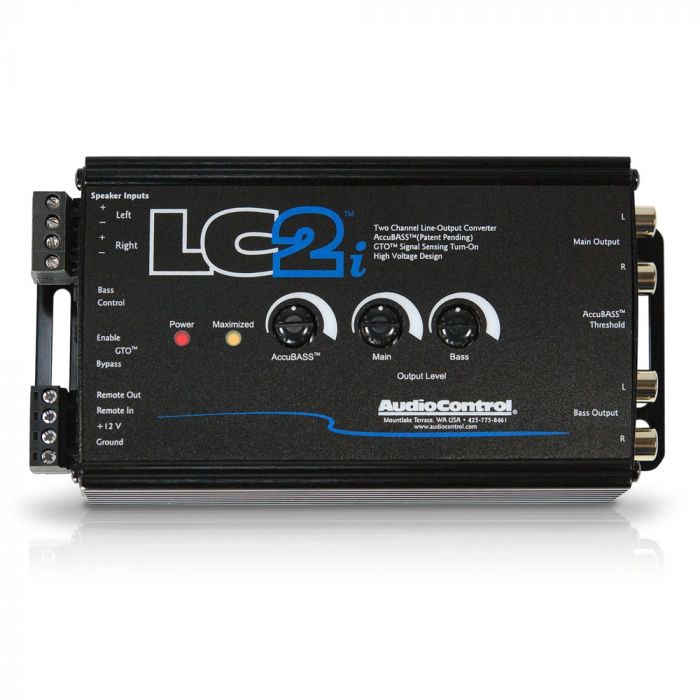

AudioControl LC2i Two Channel Line Out Converter with AccuBASS and Subwoofer Control

$99.99
In stock
SKU
LC2i

Key Features

  • Two channels of active speaker level inputs - accepts up to 400 watts per channel
  • Designed for maximum sound quality and enhanced audio performance
  • Corrects for the bass roll-off that is common with many factory-installed audio systems
  • Signal sense with remote turn on output
AudioControl LC2i Two Channel Line Out Converter with AccuBASS and Subwoofer Control
    Features:
  • Two channels of active speaker level inputs - accepts up to 400 watts per channel
  • Designed for maximum sound quality and enhanced audio performance
  • Corrects for the bass roll-off that is common with many factory-installed audio systems
  • Restores the Bass as the volume is turned up, improving the audio performance
  • GTO™ (Great Turn-On) Circuit - Powers up the LC2i when it detects signal on the speaker level input
  • Patent Pending AccuBASS™ circuitry
  • High Power input - conservatively rated to accept 65 watts per channel
  • Ideal for use while adding amplifiers to the OEM system of your vehicle
  • Built in remote turn-on circuit for factory systems that do not use remote signals
  • Three gain controls for matching outputs
  • Precision matched stereo
  • Full 10Hz to 22kHz frequency response (+/- 1.5 dB)
  • Compact size
    Inputs and Outputs:
  • (6) - Speaker level inputs
  • (6) - RCA outputs
  • (1) - 12 volt input
  • (1) - Ground input
  • (1) - 12 volt remote turn on (Input)
  • (1) - 12 volt remote turn on (Output)
    Dimensions:
  • Size: 5-1/2" (W) x 3-1/4" (D) x 1-1/2" (H)
    Technical Specifications:
  • Maximum speaker-level input: 400 watts @ 4 ohms
  • Maximum output level: 8.5Vrms
  • Output gain: ±15 dB
  • Frequency response: 33Hz - 22,000 Hz
  • Total harmonic distortion: 0.01%
  • Input Impedance: 20 Kohms
  • Output Impedance: 150 ohms
  • Power supply: High headroom PWM switching
  • Power draw: 150mA
  • Recommended fuse rating: 1 Amp
  • Remote Trigger Ouput Current: 1 Amp
More Information
Manufacturer AudioControl
Part Number LC2i
Number of Channels 2 Channel
Remote turn on circuit Yes
Bass Knob / Remote Gain Optional
Bass Correction Built in bass correction
Warranty 1 Year
Return period 30 days
Exchange period 30 days
