Accelevision LCD42L 4.2" Wide screen LCD Back lite LCD Module
$128.99
Out of stock
SKU
28361
Expert Knowledge
Talk to a specialist

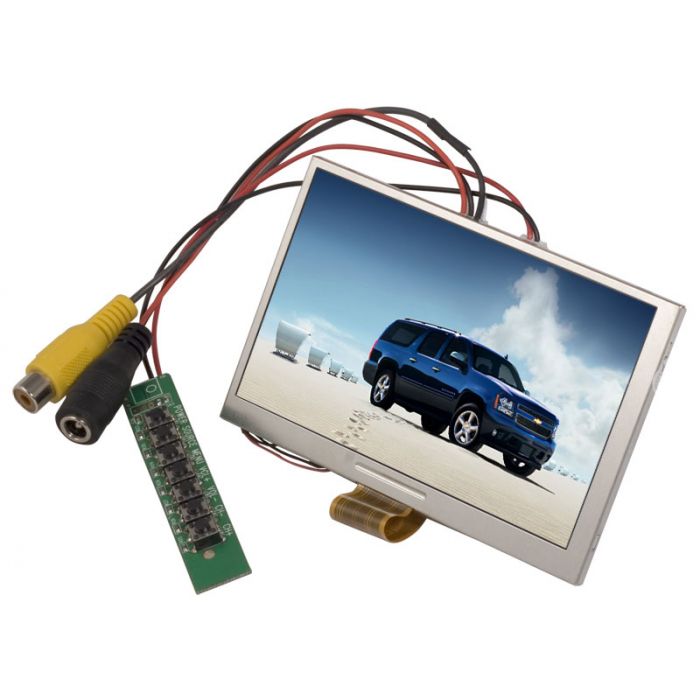

Accelevision LCD42L 4.2" Wide screen LCD Back lite LCD Module
Unit includes: Raw module and Wiring Harness
Accelevision LCD42L 4.2" Wide screen LCD Back lite LCD Module Specifications:
Accelevision LCD42L 4.2" Wide screen LCD Back lite LCD Module Specifications:
- Wide Viewing Angle
- LED back lite for minimal power consumption and uniform back light intensity
- Operates on 5 - 12 volts
- NTSC/PAL
- Single RCA Composite video input
- Menu control buttons for on screen display and power control
- Resolution: 960 (H) x 234 (V)
- Power Source: DC 12V @ 120mA
- Push button on and off switch
- Brightness: 250 NIT
- Dimensions: 2 9/16" (H) x 4 1/16" (W) x 7/16" (D)
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD42WL |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 960 x 234 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 250 Nit |
| Modulation | NTSC and PAL |
| Composite video input | Yes |
| Operation Voltage | 12-15 Volt DC |
| Monitor Color | White |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
