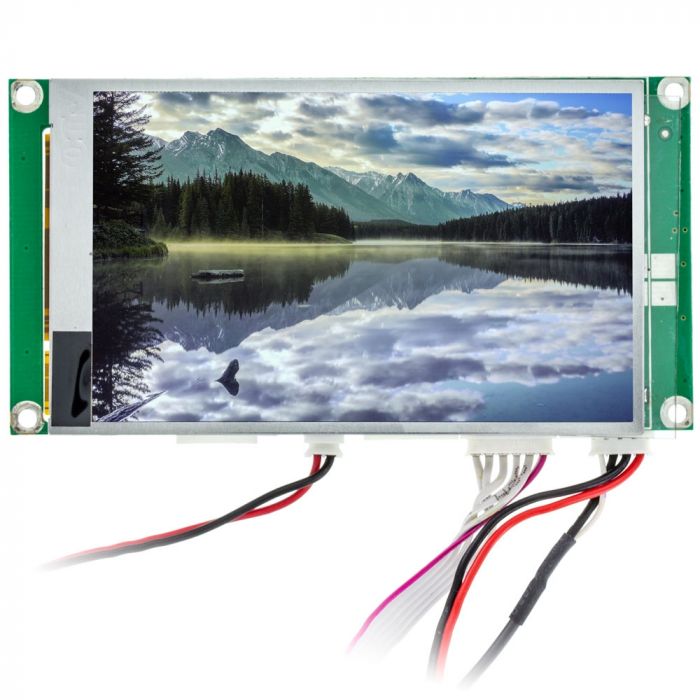

Accelevision LCD35LWVGA 3.5" High Resolution Widescreen LCD module with VGA input
$117.99
In stock
SKU
LCD35LWVGA
Expert Knowledge
Talk to a specialist
- 3.5 inch universal widescreen raw LCD module for use in any custom application
- Utilizes high density smartphone display with 260 pixels per inch
- Resolution: 800 (H) x 480 (V)
- VGA input for use with computers or chart plotters or any other high resolution device
- Composite RCA video input
- Low power consumption
Unit includes: 3 inch raw module and Wiring Harness
Accelevision LCD35LWVGA 3.5" Widescreen LCD module with VGA input
Accelevision LCD35LWVGA 3.5" Widescreen LCD module with VGA input
- Features:
- 3.5 inch universal widescreen raw LCD module for use in any custom application
- Utilizes high density smartphone display with 260 pixels per inch
- VGA input for use with computers or chart plotters or any other high resolution device
- Composite RCA video input
- LED back lite for minimal power consumption and uniform back light intensity
- Board can be mounted to one side for thinner profile
- Operates on 10 - 12 volts DC
- NTSC/PAL auto switching
- On screen menu with adjustments for color, brightness, tint, hue, etc
- Small control board with buttons for power, menu, and OSD controls
- Resolution: 800 (H) x 480 (V)
- Power Source: DC 12V @ 95mA
- Brightness: 350 NIT
- Inputs and outputs
- 1 - RCA Composite video input
- 1 - VGA input
- 1 - DC power jack
- Dimensions:
- Dimensions (with control board): 2-1/4" (H) x 4" (W) x 9/16" (D)
- Screen Dimensions: 2-1/16" (H) x 3-7/16" (W) x 1/8" (D)
- Viewable screen area: 1-7/8" (H) x 3" (W)
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD35LWVGA |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 350 Nit |
| Swivel Screen | No |
| Touchscreen | No |
| Modulation | NTSC and PAL |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | Yes - VGA input |
| Audio Video inputs | 1 Video Input |
| Audio Video Outputs | None |
| Composite video input | Yes |
| Front mounted auxiliary input | None |
| USB input | No |
| SD Card input | No |
| Trigger wire | No |
| Image Flip Function | No |
| Quad Screen | No |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-15 Volt DC |
| Ac Adapter included | No |
| Wireless Remote Control | No |
| Overall Height | 2.25 inches |
| Overall Length | 0.50 inches |
| Overall Width | 4.00 inches |
| Warranty | 1 Year |
| California Proposition 65 | |
| UPC Code | 736836543021 |
| Return period | 30 days |
| Exchange period | 30 days |
