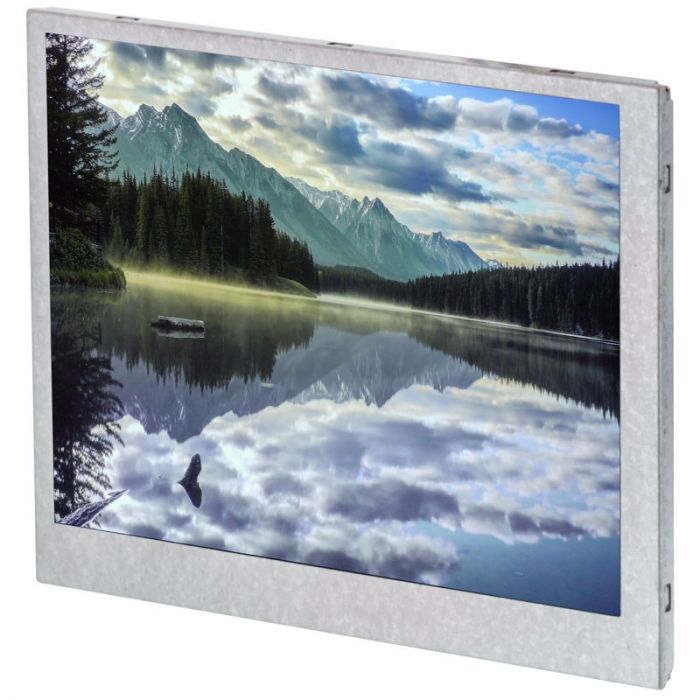

Accelevision LCD4LH 4" Raw LCD with LED Back lite
$85.99
In stock
SKU
LCD4LH
Expert Knowledge
Talk to a specialist
- 4 inch Super thin LCD module
- Single RCA composite video input
- Auto power on when power is applied
- 4 button control board for power-off, brightness, color, tint, and image rotation
Unit includes: 4 inch raw module and Wiring Harness
Accelevision LCD4LH 4" Raw LCD with LED Back lite
Accelevision LCD4LH 4" Raw LCD with LED Back lite
- Features:
- 4 inch Super thin LCD module
- LED back lite for minimal power consumption and uniform back light intensity
- Operates on 9 - 12 volts
- Single RCA composite video input
- Auto power on when power is applied
- OSD - on screen display for control of color, tint, contrast
- Brightness button allows you to change LCD brightness
- Resolution: 960 (H) x 234 (V)
- 16:9 wide screen aspect ratio
- Power Source: DC 12V @ 150mA
- Push button on and off switch
- Brightness: 250 NIT
- LCD Dimensions: 3" (H) x 3-3/4" (W) x 1/8" (D)
- Control Board Dimensions: 2-1/8" (H) x 2-3/8" (W) x 3/8" (D)
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD4LH |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 960 x 234 |
| Widescreen Display | 4:3 Normal Aspect Ratio |
| LCD back light type | LED |
| LCD Screen Brightness | 250 Nit |
| Modulation | NTSC and PAL |
| Headphone Jack | No |
| HDMI input | No |
| VGA input | No - VGA input |
| Audio Video inputs | 1 Video Input |
| Composite video input | Yes |
| Front mounted auxiliary input | None |
| USB input | No |
| SD Card input | No |
| Image Flip Function | No |
| Quad Screen | No |
| Operation Voltage | 8-15 Volt DC |
| Ac Adapter included | No |
| Wireless Remote Control | No |
| Warranty | 1 Year |
| California Proposition 65 | |
| UPC Code | 736836545735 |
| Return period | 30 days |
| Exchange period | 30 days |
