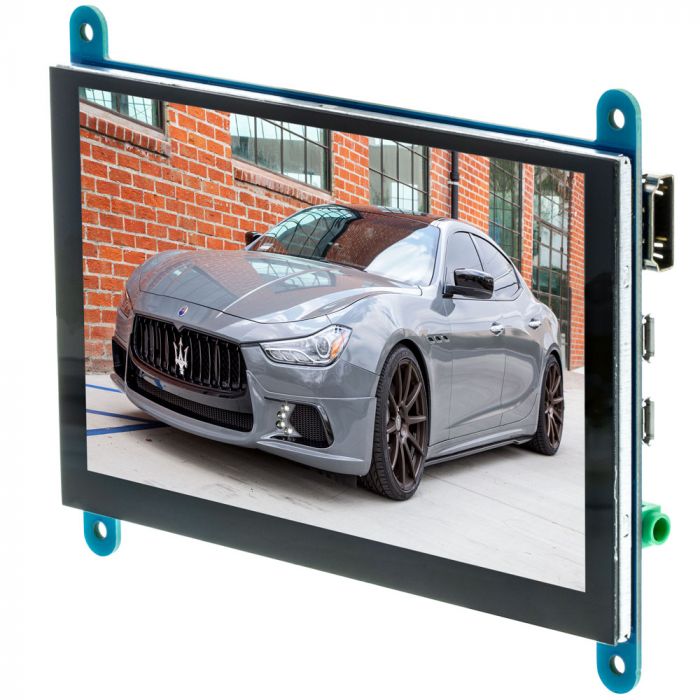

Accelevision LCD5HDMIUSB 5 Inch HDMI Monitor with Capacitive Touchscreen, HDMI input and 2 Micro USB Inputs
$149.99
In stock
SKU
LCD5HDMIUSB
Expert Knowledge
Talk to a specialist
- 5 inch HDMI Monitor
- HDMI input on circuit board
- Capacitive Touchscreen
- 2 - Micro USB inputs >
- Auto power on and off function
- 12 volt trigger for auto power on and input select
- Includes IR remote control
- Circuit board mounting flanges with pre-drilled holes
Unit includes: 5 inch raw module, HDMI Cable, USB Cable, Mounting Hardware and Instruction Disc
Accelevision LCD5HDMIUSB 5 Inch HDMI Monitor with Capacitive Touchscreen, HDMI input and 2 Micro USB Inputs
Accelevision LCD5HDMIUSB 5 Inch HDMI Monitor with Capacitive Touchscreen, HDMI input and 2 Micro USB Inputs
- Features:
- 5 inch HDMI module with HDMI and Micro USB inputs
- Wide Viewing Angle allows it to be used in nearly any custom application
- Circuit board mounting flanges with pre-drilled holes
- Capacitive Touchscreen
- HDMI input on circuit board
- Bottom mount controls so that unit can be operated and enclosed in a custom enclosure
- IR receiver can be integrated in custom enclosure and allow remote control to operate
- Includes IR remote control
- Operates on 12 volts DC
- NTSC/PAL/SECAM manual and auto switching
- Auto power on and off function can be enabled on screen
- 12 volt trigger for auto power on and input select
- Menu control buttons for on screen display and power control
- Resolution: 800 (H) x 480 (V)
- Power Source: DC 12V @ 300mA
- Contrast Ratio: 400:1
- Brightness: 350 NIT
- Inputs and Outputs
- 1 - HDMI input
- 2 - Micro USB inputs
- 1 - RCA Stereo audio input
- 1 - 12 volt DC power input
- 1 - 12 volt trigger
- Dimensions
- Overall screen dimensions: 3" (H) x 4-3/4" (W)
- Overall dimensions with flange: 3-5/16" (H) x 5" (W) x 3/4" (D)
- Screen cutout dimensions: 2-5/8" (H) x 4-3/8" (W)
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD5HDMIUSB |
| LCD Screen Size | 5 inch - 6 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| Touchscreen | Yes - Capacitive touchscreen |
| Built-in DVD Player | No |
| HDMI input | Yes |
| VGA input | No - VGA input |
| USB input | Dual USB |
| Return period | 30 days |
| Exchange period | 30 days |
