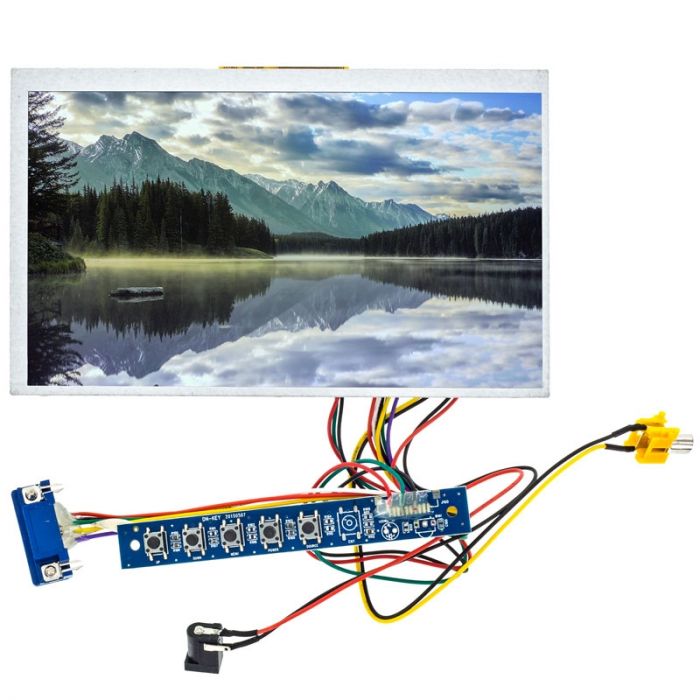

Quality Mobile Video LCD7WVGAC 7" Raw LCD monitor with VGA input and RCA video input
$106.99
Out of stock
SKU
LCD7WVGAC
Expert Knowledge
Talk to a specialist
- 7" Raw LCD Screen
- Single RCA Video Inputs
- Built in VGA Input
- Resolution: 1024 (H) x 600 (V)
Unit includes: Raw module, and Wiring Harness
Quality Mobile Video LCD7WVGAC 7" Raw LCD monitor with VGA input and RCA video input
Quality Mobile Video LCD7WVGAC 7" Raw LCD monitor with VGA input and RCA video input
- Features:
- 7 inch RAW LCD monitor for custom applications with unique installation criteria
- 150° wide viewing angle
- 700:1 contrast ratio
- Menu control buttons for on screen display and power control
- Resolution: 1024 (H) x 600 (V)
- Power Source: DC 12V @ 400mA
- Push button power switch
- Brightness: 230 NIT
- Inputs and Outputs:
- (1) - VGA input
- (1) - RCA video input
- Dimensions:
- Screen dimensions without control board: 4-1/8" (H) x 6-1/2" (W) x 1/8" (D)
- Screen dimensions with control board on back: 4-1/8" (H) x 6-1/2" (W) x 13/16" (D)
| Manufacturer | Clarus |
|---|---|
| Part Number | LCD7WVGAC |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 1024 x 600 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 250 Nit |
| Touchscreen | Yes |
| Modulation | NTSC and PAL |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | Yes - VGA input |
| Audio Video inputs | 1 Video Input |
| Audio Video Outputs | None |
| Composite video input | Yes |
| Front mounted auxiliary input | None |
| USB input | No |
| SD Card input | No |
| Trigger wire | No |
| Image Flip Function | No |
| Quad Screen | No |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-15 Volt DC |
| Ac Adapter included | No |
| Wireless Remote Control | No |
| Overall Height | 4.00 inches |
| Overall Length | 0.75 inches |
| Overall Width | 6.50 inches |
| Warranty | 1 Year |
| California Proposition 65 | |
| UPC Code | 736836548309 |
| Return period | 30 days |
| Exchange period | 30 days |
