Clarus TOP-SS-LCD7005 7" Wide screen LCD Module with digital media player and remote control
$139.99
In stock
SKU
TOP-SS-LCD7005
Expert Knowledge
Talk to a specialist
- 7 inch Super thin LCD module with integrated digital media player
- Dual RCA Composite video inputs
- Auto power on with triggered input, automatically selects video input, video 1 is priority
- 5 button control board for brightness, color, tint, and image rotation
- Remote control

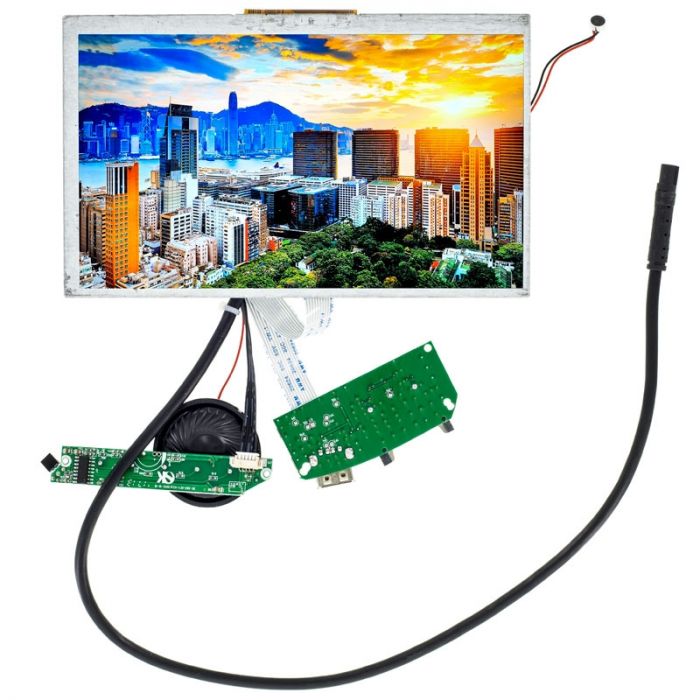

Unit includes: 7 inch raw module, Wiring Harness, and Remote control
Clarus TOP-SS-LCD7005 7" Wide screen LCD Module with digital media player and remote control
Clarus TOP-SS-LCD7005 7" Wide screen LCD Module with digital media player and remote control
- 7 inch Super thin LCD module with integrated digital media player
- Digital media player video compatible file types: MP4 / AVI / MOV / RM / RMVB / MGP / DAT / VOB
- Digital media player audio compatible file types: MP3 / WMA / RM
- Digital media player photo compatible file types: JPG / BMP / GIF / PNG / TIFF
- LED back lite for minimal power consumption and uniform back light intensity
- Remote control allows full operate from the remote control, IR receiver is located on button control board and IR receiver must be exposed for remote to work
- Dual RCA Composite video inputs
- Triggered video input, powers on with a 12 volt positive signal, automatically selects video input, video 1 is priority
- Image flip function allows the monitor to reverse an image, or rotate the image so that the display can be placed upside down
- OSD - on screen display for control of color, tint, contrast
- Brightness button allows you to change LCD brightness
- Spring loaded capacitance buttons allow you to make buttons out of nearly any material
- Built in 1-1/2 inch speaker
- Built in FM-transmitter to broadcast audio to an FM radio station
- 16:9 Aspect ratio
- Resolution: 800 (H) x 480 (V)
- Power Source: DC 12V @ 300mA
- Push button on and off switch
- Brightness: 350 NIT
- Inputs and Outputs:
- (2) - RCA inputs
- (1) - 12 volt power input
- (1) - 12 volt ground input
- (1) - 12 volt trigger input
- (1) - USB input
- (1) - SD card input
- Dimensions:
- LCD Dimensions: 3-7/8" (H) x 6-1/2" (W) x 1/4" (D)
- Control Board Dimensions: 1-3/16" (H) x 2-3/8" (W) x 3/8" (D)
| Manufacturer | Clarus |
|---|---|
| Part Number | TOP-SS-LCD7005 |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 350 Nit |
| Touchscreen | Optional |
| Modulation | NTSC and PAL |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in Speakers | Yes |
| HDMI input | No |
| VGA input | No - VGA input |
| Audio Video inputs | 2 Video Inputs |
| Audio Video Outputs | None |
| Composite video input | Yes |
| Front mounted auxiliary input | None |
| USB input | Yes |
| SD Card input | Yes, SD Card |
| Trigger wire | Yes |
| Image Flip Function | Image rotate |
| Quad Screen | No |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-15 Volt DC |
| Ac Adapter included | No |
| Wireless Remote Control | Yes |
| Overall Height | 3.88 inches |
| Overall Length | 0.50 inches |
| Overall Width | 6.50 inches |
| Warranty | 1 Year |
| California Proposition 65 | |
| Return period | 30 days |
| Exchange period | 30 days |
