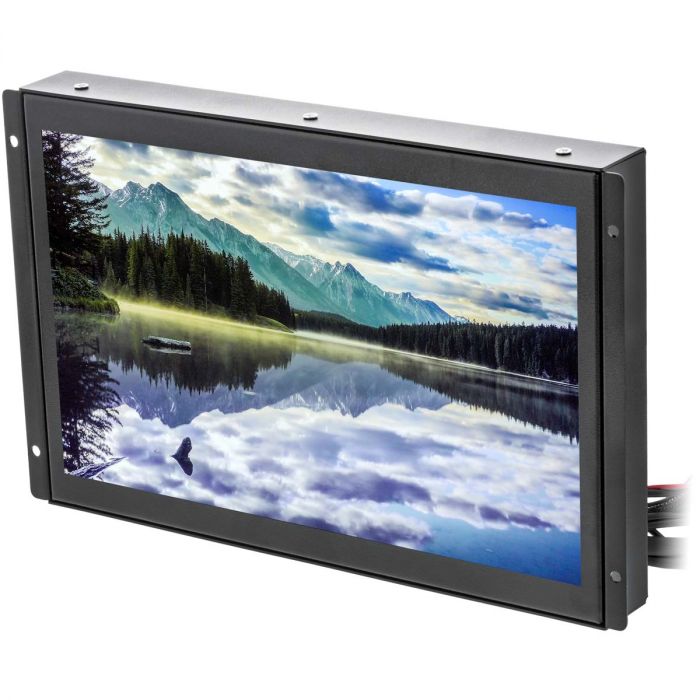

Clarus LCDMC102W 10.2 inch 1080p In Wall or Flush mount LCD display with HDMI / RCA and VGA Inputs

Rating:
100% of 100
$189.99
In stock
SKU
LCDMC102W

Key Features

  • 10.2" TFT LCD Screen In Wall Mount
  • 1080p HDMI input
  • VGA Input
  • Single RCA Video Input
  • USB/SD card input
  • Metal Housed for clean and rugged installation
  • Includes Wireless Remote Control
Unit includes: 10.2 inch LCD monitor, Wireless Remote Control, and Instruction manual

Clarus LCDMC102W 10.2 inch 1080p In Wall or Flush mount LCD display with HDMI / RCA and VGA Inputs
    Features:
  • 10.2" TFT LCD Screen flush mount with in-wall trim for automotive or residential applications
  • Full HD 1080p Support through HDMI
  • 16:9 Wide-screen aspect ratio
  • Unit can be mounted in-wall or in a desk to suit any application both vertical and horizontal
  • Steel Monitor Housing Frame Cut-Out Holes for Easy Mounting
  • On Screen Display for Brightness, Contrast, Hue, Saturation and video select
  • Built in SD/USB card reader with audio and video playback
  • Wireless Remote Control
  • Includes Wireless Remote Control, Cut-Out Template, Mounting Screws
    Inputs and Outputs:
  • (1) - RCA Video input
  • (1) - VGA input
  • (1) - HDMI input
  • (1) - USB input
  • (1) - IR remote receiver
  • (1) - RCA Audio output (Stereo)
  • (1) - 12 volt power lead input
    Technical parameters:
  • HDMI Support: 1080p, 1080i, 720p, 480p, 576p
  • Pixel Resolution: 800 x 480 (RGB)
  • Contrast Ratio: 500:1
  • Brightness: 300cd/m
  • PAL/NTSC Auto Color System
  • Screen Aspect Ratio Selectable - 16:9 / 4:3
  • Power Consumption: 11 Watt
  • Power Supply: DC 12V
    Dimensions:
  • Cut-Out Dimensions: 6-3/8" (H) x 9-1/2'' (W) x 1-1/4'' (D)
  • Total Dimensions with flange: 6-3/8'' (H) x 10-1/8'' (W) x 1-1/4'' (D)
More Information
Manufacturer Accelevision
Part Number LCDMC102W
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Touchscreen No
Modulation NTSC and PAL
Headphone Transmitter No
Headphone Jack No
Built in Speakers No
HDMI input Yes
VGA input Yes - VGA input
Audio Video inputs 1 Video Input
Audio Video Outputs 1 Audio output (Stereo)
Composite video input Yes
Front mounted auxiliary input None
USB input Yes
SD Card input Yes, SD Card
Housing material Metal
Slide track on back No
Mounting thread for stand mount No
Mount included No
Trigger wire No
Image Flip Function No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 6.38 inches
Overall Length 1.25 inches
Overall Width 10.13 inches
Warranty 1 Year
Return period 30 days
Exchange period 30 days
