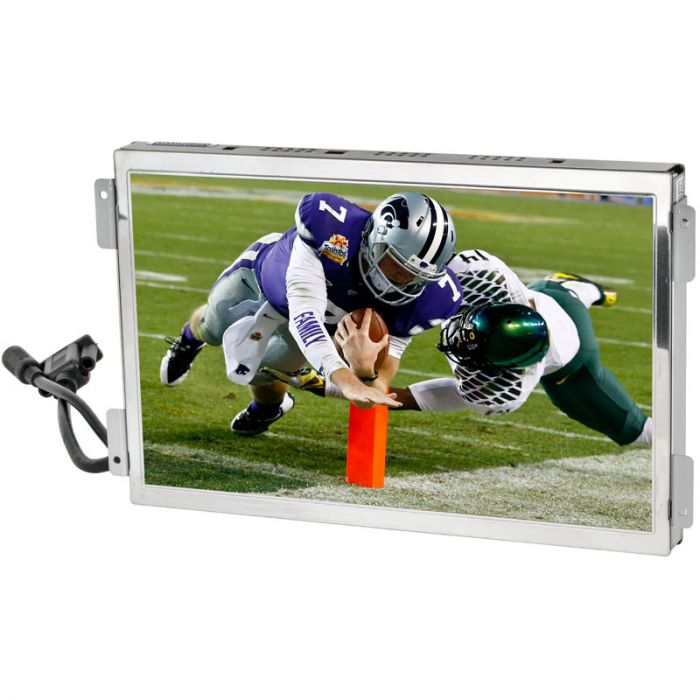

Accelevision LCD102WVGA 10.2 inch Wide Screen LCD Module - VGA and 2 Video inputs
$353.99
In stock
SKU
LCD102WVGA
Expert Knowledge
Talk to a specialist
- 10.2 inch Raw LCD module with VGA and Composite video inputs
- Rugged metal mounting flanges with pre-drilled holes
- Adhesive back soft touch controls
- IR receiver
- Includes IR remote control
- Power Source: DC 12V @ 1100mA
Unit includes: 10.2 inch raw module, 6 foot VGA Extension cable, Composite video cable, Remote control and DC power plug
Accelevision LCD102WVGA 10.2 inch Wide Screen LCD Module - VGA and 2 Video inputs
Accelevision LCD102WVGA 10.2 inch Wide Screen LCD Module - VGA and 2 Video inputs
- Features:
- 10.2 inch Raw LCD module with VGA and Composite video inputs
- Wide Viewing Angle allows it to be used in nearly any custom application
- Rugged metal mounting flanges with pre-drilled holes
- Adhesive back soft touch controls so that unit can be operated and enclosed in a custom enclosure and still have access to control functions without remote
- IR receiver can be integrated in custom enclosure and allow remote control to operate
- Includes IR remote control
- Operates on 12 volts DC
- NTSC/PAL/SECAM manual and auto switching
- Menu control buttons for on screen display and power control
- Front mounting flange is removable for custom mounting options
- Resolution: 800 (H) x 480 (V)
- Power Source: DC 12V @ 1100mA
- Contrast Ratio: 400:1
- Brightness: 350 NIT
- Inputs and Outputs
- 1 - VGA input
- 2 - RCA Video inputs
- 1 - 12 volt DC power input
- Dimensions
- Overall dimensions with flange: 6-1/8" (H) x 10-1/8" (W) x 1-1/4" (D)
- Cutout dimensions: 6-1/8" (H) x 9-1/4" (W)
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD102WVGA |
| LCD Screen Size | 9 inch - 10 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | CCFL |
| LCD Screen Brightness | 350 Nit |
| Touchscreen | No |
| Modulation | NTSC and PAL |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | Yes - VGA input |
| Audio Video inputs | 2 Video Inputs |
| Composite video input | Yes |
| USB input | No |
| SD Card input | No |
| Trigger wire | No |
| Image Flip Function | No |
| Quad Screen | No |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-15 Volt DC |
| Ac Adapter included | No |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| California Proposition 65 |  Warning:This product can expose you to chemicals including lead, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| UPC Code | 736836537808 |
| Return period | 30 days |
| Exchange period | 30 days |
