Metra MET-CH14 Car Stereo Interface harness for 2005- 2018 Chrysler, Dodge, Jeep, Mitsubishi and Volkswagen Vehicles
$79.99
In stock
SKU
MET-CH14
Expert Knowledge
Talk to a specialist
- Audio interface harness and control box for 2005- 2018 Chrysler, Dodge, Jeep, Mitsubishi and Volkswagen Vehicles
- Complete car stereo integration harness for non-amplified and amplified audio systems
- Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
- Provides NAV outputs (parking brake, reverse, and speed sense
- High level speaker inputs for connections to factory speakers
- Low level subwoofer connections
- Steering wheel interface built in

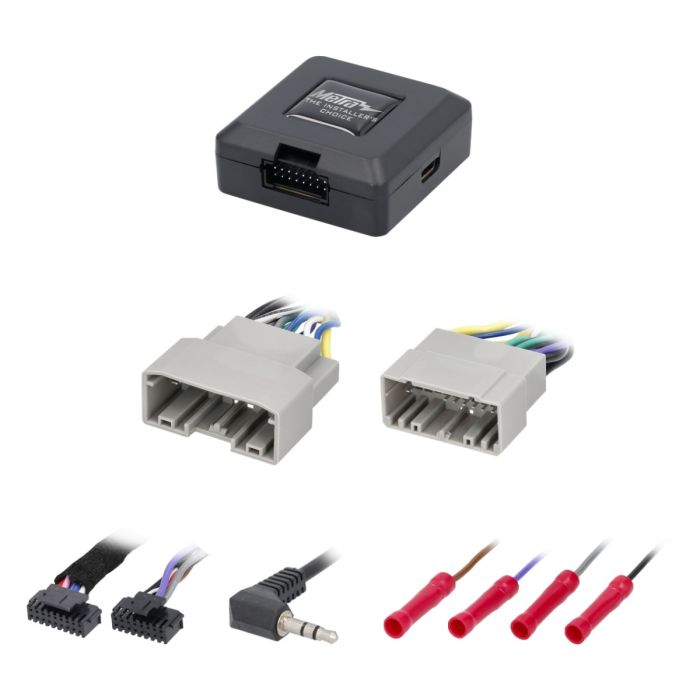

Unit includes: MET-CH14 interface module, Vehicle-specific wiring harness, 3.5mm auxiliary pigtail, Complete installation instructions, and Instruction manual
The Metra MET-CH14 is a cost-effective, highly reliable data interface that allows you to retain critical factory vehicle functions when replacing the OEM radio with an aftermarket head unit.
Engineered specifically for Fiat, Jeep and Ram Vehicles vehicles from 2005- 2018, this interface supports non-amplified and amplified factory audio systems. It delivers seamless integration for steering wheel audio controls, NAV outputs, and accessory power — making it an ideal solution for professional installers and DIYers using radios purchased from online retailers.
Metra MET-CH14 Car Stereo Interface harness for 2005- 2018 Chrysler, Dodge, Jeep, Mitsubishi and Volkswagen Vehicles- Features
- Retains steering wheel audio controls (SWC)
- Provides essential NAV outputs: Parking Brake, Reverse, and Vehicle Speed Sense
- Built-in accessory power output (12V)
- Quick and easy DIP switch programming for SWC configuration
- Compatible with most major aftermarket radio brands
- Type-C USB updatable firmware
- Supports both non-amplified and amplified systems
- All outputs rated at 250mA
- Metra MET-CH14 Car Stereo Interface harness for 2005- 2018 Chrysler, Dodge, Jeep, Mitsubishi and Volkswagen Vehicles Instruction manual
-
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Blue - Power antenna turn on (+)
- Light Green - Parking brake wire(-)
- Blue with Pink Stripe - VSS (Vehicle speed sensor)
- Green with Purple Stripe - Reverse wire (+)
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
- White RCA – Left Subwoofer signal
- Red RCA – Right Subwoofer signal
- Compatible With:
- Chrysler
- 2011 - 2014 Chrysler 200
- 2005 - 2010 Chrysler 300
- 2007 - 2009 Chrysler Aspen
- 2006 - 2010 Chrysler PT Cruiser
- 2007 - 2010 Chrysler Sebring
- 2008 - 2016 Chrysler Town & Country
- Dodge
- 2008 - 2014 Dodge Avenger
- 2007 - 2012 Dodge Caliber
- 2008 - 2014 Dodge Challenger
- 2006 - 2010 Dodge Charger
- 2006 - 2011 Dodge Dakota
- 2008 - 2013 Dodge Durango
- 2009 - 2016 Dodge Grand Caravan
- 2009 - 2010 Dodge Journey
- 2005 - 2008 Dodge Magnum
- 2007 - 2011 Dodge Nitro
- 2006 - 2010 Dodge Ram 1500
- 2006 - 2010 Dodge Ram 2500
- 2006 - 2010 Dodge Ram 3500
- Jeep
- 2006 - 2010 Jeep Commander
- 2007 - 2016 Jeep Compass
- 2005 - 2013 Jeep Grand Cherokee
- 2008 - 2012 Jeep Liberty
- 2007 - 2016 Jeep Patriot
- 2007 - 2017 Jeep Wrangler
- 2018 Jeep Wrangler JK
- Mitsubishi
- 2006 - 2009 Mitsubishi Raider
- Volkswagen
- 2009 - 2013 Volkswagen Routan
| Manufacturer | Metra |
|---|---|
| Part Number | MET-FD4 |
| Integration Module | Radio Replacement and Steering Wheel |
| Wiring harness function | Retain Factory Steering Wheel Controls |
| Steering Wheel Control | Yes, requires external module |
| RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| Vehicle Brand | Jeep, Mitsubishi, Volkswagen |
| UPC Code | 086429515097 |
| Return period | 30 days |
| Exchange period | 30 days |
