Metra MITO-01 2006 - 2012 Mitsubishi amplified audio system interface

Metra MITO-01 2006 - 2012 Mitsubishi amplified audio system interface

Metra MITO-01 2006 - 2012 Mitsubishi amplified audio system interface -

More Views

Metra
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Metra MITO-01 Product Highlights

  • Designed for Mitsubishi amplified audio systems
  • Retains the factory amplifier and integrates it with an aftermarket radio
  • Interface is designed to be used with factory amplified systems and converts aftermarket radio outputs to factory amplified audio system inputs
  • 4 - RCA level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • Eliminates COM ERROR message on display
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Frequently Bought Together

Overview

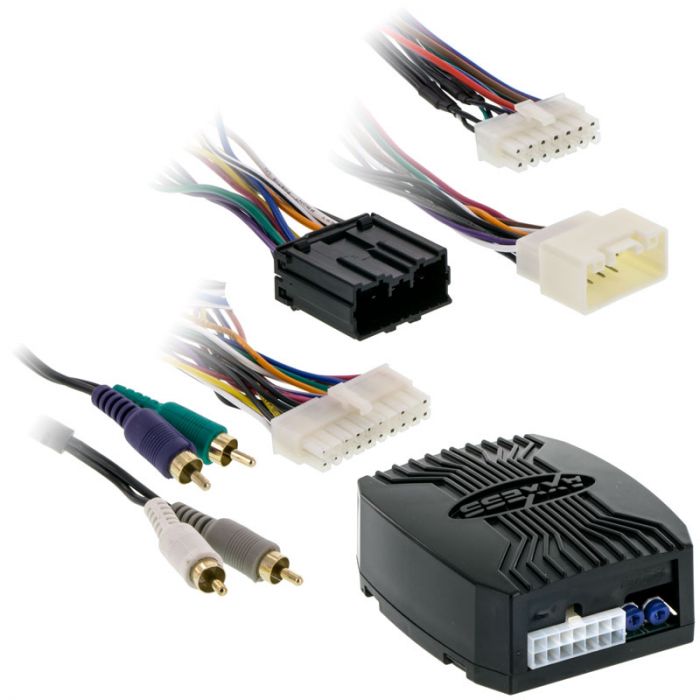

Unit includes: A) MITO-01 interface, B) 14-pin harness with stripped leads and RCA cables, C) 2-pin harness, and Instruction manual

Metra MITO-01 2006 - 2012 Mitsubishi amplified audio system interface:

Interface Features:
  • Designed for Mitsubishi amplified audio systems
  • Retains the factory Rockford Fosgate amplifer and integrates it with an aftermarket radio
  • Interface is designed to be used with factory amplified systems and converts aftermarket radio outputs to factory amplified audio system inputs
  • Can be used with ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
  • Amplifier can be interfaced with high or low level outputs and interface has capability for both
  • 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • 4 - RCA level inputs for aftermarket car stereo's RCA outputs
  • Retains balance and fader
  • Eliminates COM ERROR message on display
  • Provides multimedia wires (parking brake, reverse, and speed sense)


Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange - illumination
  • Blue with White Stripe - Amplifier turn on
  • Brown - Radio mute
  • Light Green - Parking brake
  • Blue with Pink Stripe - VSS (Vehicle speed sensor)
  • Green with a Purple Stripe - Reverse gear trigger
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
  • White RCA - Left Front Speaker output
  • Grey RCA - Right Front Speaker output
  • Green RCA - Left Rear Speaker output
  • Purple RCA - Right Rear Speaker output


Kit Components:
  • A) MITO-01 interface
  • B) MITO-01 harness
  • C) 14-pin harness with stripped leads and RCA jacks
  • D) 2-pin harness with stripped leads
  • E) Instruction manual


Tools Required:

Optional parts:

Vehicle Applications:

Mitsubishi:
  • 2006 - 2012 Eclipse
  • 2007 - 2011 Endeavour
  • 2007 - 2012 Galant


Technical Specifications

Manufacturer Metra
Part Number MITO-01
Integration Module N/A
Steering Wheel Control Input N/A
RCA Pre-amp Audio inputs N/A
Speaker level inputs N/A
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 086429183845
