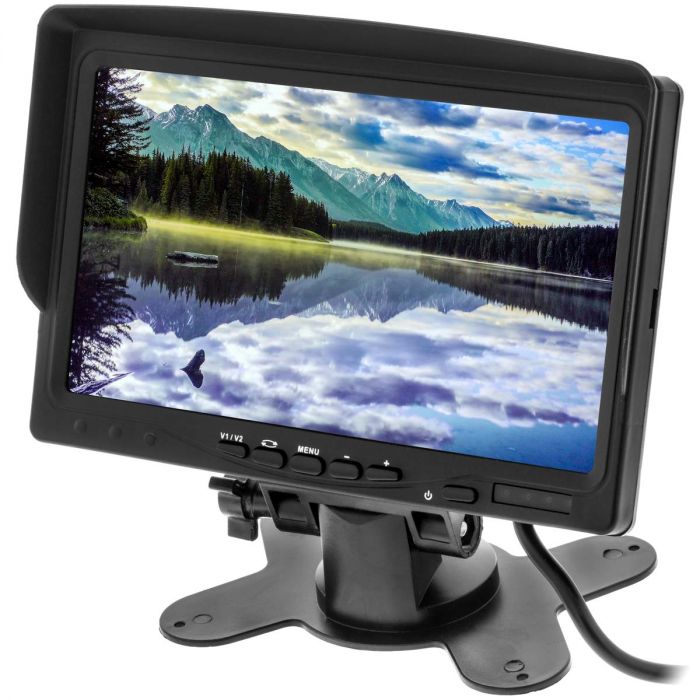

Accelevision PLCD700 7" Universal Monitor with Stand, Surface/Flush Mount

$49.99
In stock
SKU
PLCD700

Key Features

  • 7-inch monitor with removable front panels
  • (1) - RCA Camera input
  • (1) - RCA Audio video input
  • Slide track on back for use with a variety of mounts
  • Image rotation function to modify display settings for different cameras mounted in non normal positions
Unit includes: 7 inch LCD display, Front panel with sun shade, Front panel without sunshade, Wiring harness, Pedestal Bracket, Remote control, and Instruction manual

Accelevision PLCD700 7" Universal Monitor with Stand, Surface/Flush MountFeatures:
  • 7 inch TFT LCD digital panel monitor
  • Removable front panel with built in sun shield
  • Removable front panel without built in sun shield
  • Fan mount monitor with thumb screw angle adjustments
  • Slide track on back for use with a variety of mounts
  • Image rotation function to modify display settings for different cameras mounted in non normal positions
  • Automatic switching without trigger
  • Optional PAL and NTSC system
  • Resolution 800 x 480 x 3 RGB
  • Power Supply 12Vdc - 24Vdc
  • Remote Control Full Function, OSD (on screen display) Menu
  • Built-in Speaker
  • Contrast, Color and Brightness
  • Language Selection
    • Inputs and Outputs:
    • (1) - RCA Camera input
    • (1) - RCA Audio video input
    • (1) - 12 Volt power connection
    • (1) - 12 Volt ground connection
      Dimensions:
    • Dimensions of monitor no bracket: 6-7/8" (W) x 4-1/2"(H) x 3/4" (D)
    • Dimensions of flush mount bracket (Cutout): 7-5/16" (W) x 4-5/8"(H) x 15/16" (D)
    • Dimensions of flush mount bracket (Overall): 7-9/16" (W) x 5-5/61"(H) x 15/16" (D)
    More Information
    Manufacturer Accelevision
    Part Number PLCD700
    LCD Screen Size 7 inch - 8 inch
    Native Screen Resolution 800 x 480
    Widescreen Display 16:9 Widescreen Display
    LCD back light type LED
    LCD Screen Brightness 300 Nit
    Touchscreen No
    Headphone Jack No
    Built in Speakers Yes
    HDMI input No
    VGA input No - VGA input
    Audio Video inputs 1 Video Input
    Audio Video Outputs 1 Audio/Video output
    Composite video input Yes
    Front mounted auxiliary input None
    USB input No
    SD Card input No
    Housing material Plastic
    Slide track on back Yes
    Mounting thread for stand mount Yes
    Mount included Yes, Pedistal stand
    Trigger wire Auto video sense trigger
    Image Flip Function Image rotate
    Quad Screen No
    Cigarette Lighter Cord Included No
    Operation Voltage 12-15 Volt DC
    Headrest Shroud included Yes
    Wireless Remote Control Yes
    Monitor Color Black
    Color Black
    Overall Height 4.50 inches
    Overall Length 0.75 inches
    Overall Width 6.88 inches
    Warranty 90 days
    Return period 30 days
    Exchange period 30 days
