Clarus TOP-SS-Z476 7" TFT LCD Monitor with HDMI and VGA Inputs

Clarus TOP-SS-Z476 7" TFT LCD Monitor with HDMI and VGA Inputs

Clarus CVABR-Z476 7" TFT LCD Monitor with HDMI and VGA Inputs - Main

More Views

Ships Free!

Overall Rating 5 (Based on 3 reviews)

Clarus TOP-SS-Z476 Product Highlights

  • Digital 7 inch active matrix LCD panel
  • HDMI Video Input
  • VGA Video Input
  • 1 - RCA Video Input
  • 250 NIT high-brightness
  • Built in speaker for audio playback
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: 7 inch LCD monitor, RCA Video input cable, HDMI cable, VGA cable, Remote control, Fan mount, Cigarette lighter cord, AC adapter, and Instruction manual

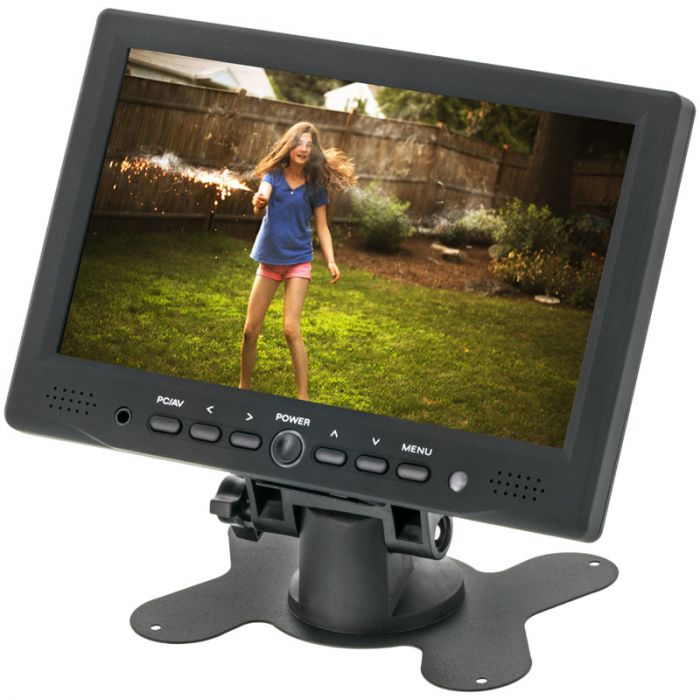

7 inch monitor with HDMI

The Clarus CVABR-Z476 is a low cost 7 inch TFT LCD monitor with RCA video inputs, HDMI and VGA inputs. This do all monitor accepts every type of input and you can enjoy an HD quality image. The HDMI input makes it was to connect to any digital source that has an HDMI output. The single cable connection makes installation a breeze. The included fan mount makes mounting virtually anywhere very easy. The monitor operates on 12 volts and can be used in a home or car.

Clarus TOP-SS-Z476 7" TFT LCD Monitor with HDMI and VGA Inputs

  • Digital 7 inch active matrix LCD panel with 16:9 widescreen aspect ratio
  • Accepts all types of inputs, HDMI, RCA audio video, and VGA input
  • LED backlight for excellent uniform brightness
  • Eco and normal picture mode - adjust brightness for lower power consumption
  • Built in speaker for audio playback
  • 4-Way image flip function allows you to orient the monitor anyway that you need and rotate the image
  • Wireless remote control
  • Menu control buttons for on screen display and power control
  • Fan mount for easy mounting on top of dash
  • Power Source: DC 12V
    Inputs and outputs
  • 1 - HDMI video input
  • 1 - VGA video input
  • 1 - RCA Composite audio video input
  • 1 - Headphone jack output
    Display specifications:
  • Native Resolution: 800 (H) x 480 (V)
  • Brightness: 300 NIT
  • Contrast ratio: 500:1
  • Viewing angle: 70° Left, 70° Right, 50° Up, 70° Down
  • Input Voltage: DC10-15V
  • VGA input resolutions: 640 x 480 / 800 x 600 / 1024 x 768 / 1920 x 1200
  • HDMI input resolutions: 480i / 480p / 576i / 576p / 720p (50Hz) / 720p (60Hz) / 1080i (50Hz) / 1080p (50Hz) / 1080i (60Hz) / 1080p (60Hz)

Technical Specifications

Manufacturer Clarus
Part Number TOP-SS-Z476
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen No
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack Yes
Built in FM Modulator No
Built in Speakers Yes
HDMI input Yes
VGA input Yes - VGA input
Audio Video inputs 1 Audio Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Phone Mirroring No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire No
Image Flip Function Image rotate
Quad Screen No
Cigarette Lighter Cord Included Yes
Operation Voltage 12 - 15 Volt DC
Ac Adapter included Yes
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 90 days
UPC Code No

Customer Reviews

Great Product! Terrific Customer Service!!
Review by
Install (5 star for easy)
Finally a small monitor with an HDMI input at a reasonable price. Terrific image. But the best thing is Quality Mobile video's customer service. They even called me on my phone to let me know about a slight shipping delay. Who does this anymore?!!! Amazing--will continue to shop here! (Posted on 3/31/2016)
Great Value!
Review by
Install (5 star for easy)
I'm glad I found the Clarus; I've mated it up with a Raspberry Pi Computer and they work wonderfully together! I did replace the A/C adapter with a 12vdc 2a "standard" model to reduce the amount of space taken up; I'm really enjoying my Raspberry Pi computer and the Clarus 7" TFT LCD Monitor!
(Posted on 1/12/2016)
Great Monitor!
Review by
Install (5 star for easy)
Excellent monitor, with a good high quality image. Perfect for indie filmakers like myself. (Posted on 1/9/2016)

Write Your Own Review

You're reviewing: Clarus TOP-SS-Z476 7" TFT LCD Monitor with HDMI and VGA Inputs

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Joseph Taylor, Monday, February 12, 2018


Can the Clarus TOP-SS-Z476 7" TFT LCD Monitor with HDMI and VGA Inputs be used to play the PS4 on?


  • Posted by Store Owner on Monday, March 12, 2018
    A: Yes, you can use this monitor for that.
Posted by Dustin Scott, Monday, November 28, 2016


I live in the US, and I noticed the wall plug is a different one than ours.. can I just get a different plug if I get this item or would you guys just send a different plug?


  • Posted by Store Owner on Tuesday, November 29, 2016
    A: This includes an adapter for US use.
