Axxess MZCC-01 2011 - 2012 Mazda CX-9 A/C Control retention interface
$80.99
Out of stock
SKU
MZCC-01
Expert Knowledge
Talk to a specialist
- Mazda complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Retain the climate control functions for the 2011-2012 Mazda CX-9 without the Bose amplified sound system
- Retains the factory A/C controls with the aftermarket stereo
- Provides power and communication to factory systems

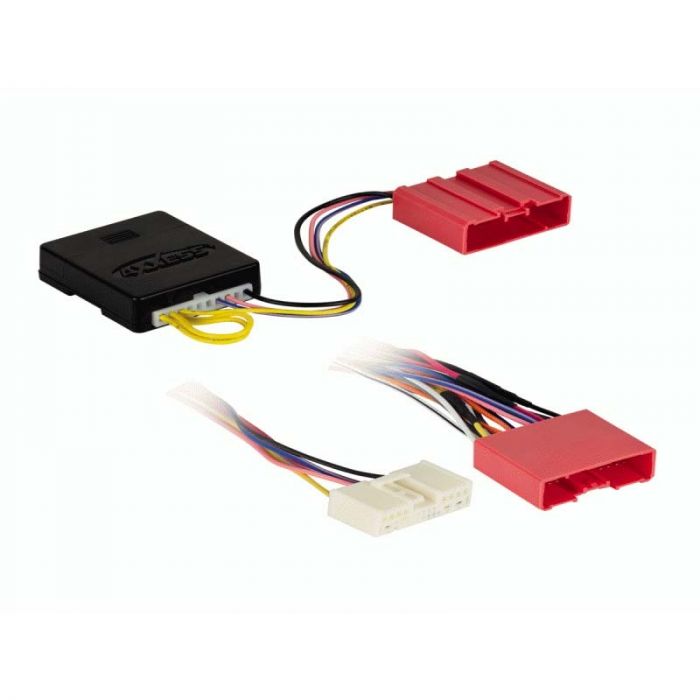

Unit includes: AX-MAZ1-SWC Interface control box, 16 pin wire harness, 18 pin to 12 pin and 24 pin harness, and Instruction manual
Axxess AX-MAZ1-SWC Mazda radio replacement interface with steering wheel and navigation outputs
Fitments:
Mazda
Axxess AX-MAZ1-SWC Mazda radio replacement interface with steering wheel and navigation outputs
- Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions including the factory A/C controls
- Retain the climate control functions for the 2011-2012 Mazda CX-9 without the Bose amplified sound system
- For BOSE amplified systems please use the AXXESS MZTO-01 interface
- Retains the factory A/C controls with the aftermarket stereo
- Provides power and communication to factory systems
- Axxess MZCC-01 2011 - 2012 Mazda CX-9 A/C Control retention interface Instruction manual
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Brown - Mute connection
- Light green - (-) Parking brake lead
- Blue/Pink - VSS (Vehicle speed sensor)
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
Fitments:
Mazda
- 2011 - 2012 CX-9
| Manufacturer | Metra |
|---|---|
| Part Number | MZCC-01 |
| Integration Module | None |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | No |
| Warranty | 1 Year |
| Vehicle Year | 2011, 2012 |
| Vehicle Brand | Mazda |
| Vehicle Model | CX-9 |
| UPC Code | 086429262250 |
| Return period | 30 days |
| Exchange period | 30 days |
