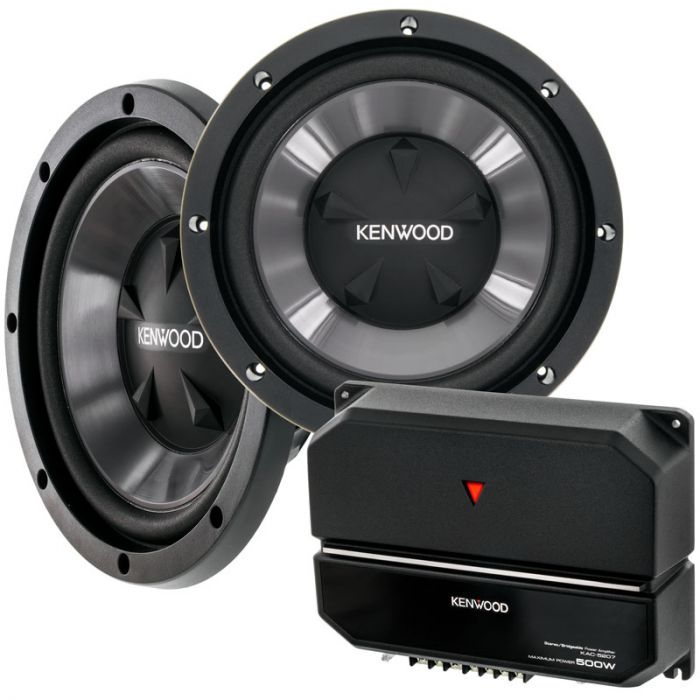

Kenwood P-W1221 Dual 12" subwoofer system with amplifier bundle

$203.99
Out of stock
SKU
P-W1221

Key Features

  • Complete Kenwood subwoofer system bundle
  • Includes (2) Kenwood KFC-W112S 12" subwoofers
  • Includes (1) Kenwood KAC-5207 Amp
  • Requires subwoofer enclosure
  • Perfect for Trucks and SUV's
Unit Includes: (2) KFC-W112S 12 inch subwoofers, (1) KAC-5207 Amplifier, Mounting hardware, Input wiring leads, Warranty Card, and Instruction manual


Kenwood KFC-W112S 12" Subwoofer

Features
  • Dual 12 inch subwoofer system is perfect for trucks and SUV's
  • High quality sound with included amplifier
  • Polypropylene cone for excellent rigidity
  • High-roll Urethane Surround
  • Silver Plated Terminals
  • Frequency Response: 25Hz - 800Hz (+0dB, -3dB)
  • Recommended sealed volume (Each woofer) 1.25 ft3
  • Recommended ported volume (Each woofer) 1.5 ft3
  • 1.64 pound strontium magnet
  • Sensitivity: 90dB /watt at 1m
  • Includes subwoofer mounting hardware

Power Handling RMS
  • 200 watts

Power Handling Max
  • 800 watts

Dimensions
  • Cutout diameter: 10-7/8"
  • Depth: 5-3/8"
Kenwood KAC-5207 Class-AB Power Amplifier

Features
  • Class AB amplifier
  • 2 or Mono channel operation
  • 2 Ohms Stereo Load Capable
  • Power MOS-FET Switching Power Supply
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Cast Aluminum Heat Sink Design
  • Built in Low-Pass Filter (80Hz, -18dB/oct)
  • Signal to Noise Ratio: 100dB (Reference: Rated Power into 4 Ohms at 14.4V)
  • Frequency Response: 20Hz-50kHz (+0dB, -3dB) Class-AB
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable), Bridged connection 4Ω to 8Ω Allowable
  • Weight (kg): 1.7 (kg)/3.4 (lbs.)
  • CEA-2006 Compliant

Max Power Output
  • 500 Watts

RMS Power Output
  • 70 Watts x 2 (4 ohms)
  • 85 Watts x 2 (2 ohms)

Inputs and Outputs
  • Battery and Ground: Screw Type Terminal Block (M4)
  • Speaker Output: Screw Type Terminal Block (M4)
  • Line-in: RCA
  • Speaker Input: JST Connector

Dimensions
  • 230mm x 56mm x 167mm
More Information
Manufacturer Kenwood
Part Number P-W1221
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS 28 Hz
QES 0.48
QMS 9.49
QTS 0.457
RE 3.7 Ohms
VAS 95.4 L
Xmax (millimeters) 4 mm
Sensitivity 90 dB
Frequency Response 25Hz - 800Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 200 Watts
Power Handling Peak 800 watts
Shallow Mount Subwoofer No
Mounting Depth 5.33 Inches
Cutout Dimensions 10.88 Inches
Sealed Enclosure Recommended Size 1.25 ft3
Ported Enclosure Recommended Size 1.5 ft3
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
