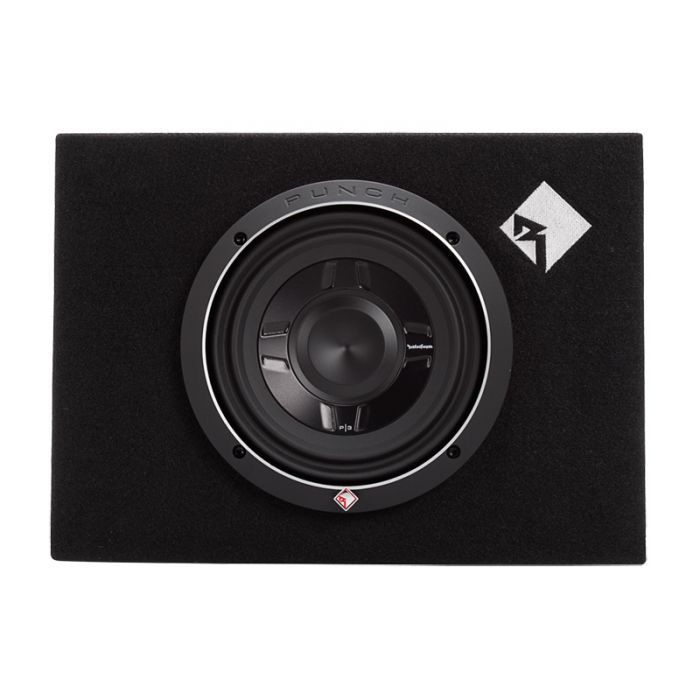

Rockford Fosgate P3S-1X8 Single P3 8" Shallow Loaded Subwoofer Enclosure for Car
More Views
Rockford Fosgate
Ships Free!
Rockford Fosgate P3S-1X8 Product Highlights
- It is a single P3 8" shallow loaded enclosure with 150 Watts RMS power handling
- It is designed for spaces where traditional subwoofer enclosures wouldn’t fit
- It has a sealed slim-line wedge design that ensures maximum mechanical power handling,
- It is constructed with durable 5/8" MDF
- It is covered in a high-density carpet
- It features quick-release 10 AWG input terminals
- It is wired exclusively with Rockford Fosgate speaker cable
Buy everything you need as a package and SAVE!
Overview
The Unit Includes: One loaded subwoofer enclosure and trim ring
Rockford Fosgate P3S-1X8 Single P3 8" Shallow Loaded Subwoofer Enclosure :
Features:
Power Handling Max:
Power Handling RMS:
Quick Specs:
Dimensions:
Rockford Fosgate P3S-1X8 Single P3 8" Shallow Loaded Subwoofer Enclosure :
Features:
- Computer optimized design
- Constructed with 5/8" MDF
- 1-Ohm wired impedance
- Covered with high density carpet
- Sealed truck box style enclosure
- 10 AWG input terminals
- Wired exclusively with Rockford Fosgate speaker cable
- Included trim ring ready to accept optional stamped mesh grille insert
Power Handling Max:
- Maximum Power: 300 Watts
Power Handling RMS:
- 150 Watts nominal continuous power handling RMS
Quick Specs:
- Nominal Impedance: 1 –Ohm
Dimensions:
- 13.5 x 19.0 x D1 5.3 - D2 3.3 (in)
- 34.29 x 48.26 x D1 13.46 - D2 8.38 (cm)
Technical Specifications
| Manufacturer | Rockford Fosgate |
|---|---|
| Part Number | P3S-1X8 |
| Driver Size | 8 inch |
| Number of speakers / subs | 1 |
| Sub enclosure shape | Square / Rectangle Box |
| Subwoofer Shape | Round |
| Internal Airspace (Per woofer) | No |
| Voice coils | Dual voice coil |
| Impedance (per voice coil) | No |
| Xmax (millimeters) | 8.4 mm |
| Sensitivity | 82 dB |
| Frequency Response | 38-250 Hz |
| Sub enclosure type | Sealed |
| Firing Direction | No |
| Power Handling RMS | 100 Watts |
| Power Handling Peak | 300 Watts |
| Cutout Dimensions | No |
| Color | Black |
| Subwoofer Enclosure Finish | No |
| Warranty | 1 Year |
| Vehicle Year | No |
| Vehicle Brand | No |
| Vehicle Model | No |
| UPC Code | 780687340766 |
