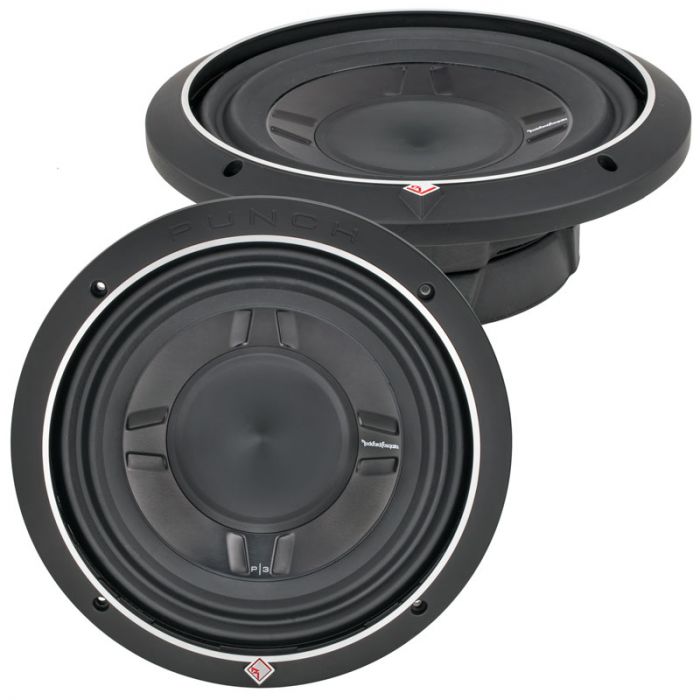

Rockford Fosgate P3SD4-10 10" Punch P3S Shallow Mount Subwoofer - Dual 4 Ohm coils

In stock

Key Features

  • 10" Shallow mount subwoofer
  • Dual 4-Ohm voice coils
  • 300 Watts RMS power handling
  • 10-AWG nickel plated push terminals
  • Anodized aluminum cone and dust cap
  • Dual linear spiders
  • Embedded 16 AWG tinsel leads
  • StampCast shallow basket
  • V.A.S.T. increases radiating cone area
The Unit Includes: 10 inch shallow subwoofer driver, Diamond cut cast aluminum trim ring, and Instruction manual.

Rockford Fosgate Punch Stage 3

Rockford Fosgate has taken their P3 shallow subwoofers to the highest level. The Stage 3 shallow subwoofers offer deep bass and unparalleled quality with the thinnest profile. These subwoofers accept up to 400 watts of power RMS, the 10" Anodized aluminum cone and dustcap provides excellent sound quality with minimal distortion. The shallow motor assembly has a new dual linear spider with embedded tinsel leads that keeps the cone in perfect alignment and allows for high excursion levels.

Anodized Aluminum Voice Coil Former

Heat is the #1 concern with subwoofers, dissipating the heat is the challenge. Rockford Fosgate P3S shallow subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Aluminum is an excellent heat-sink and allows the Rockford P3SD4-10 subwoofer to stay cool during high volume conditions. The high-temperature voicecoil is designed with a Nomex reinforcement collar and meant to handle even the loudest volume levels.

CEA-2031 Compliant

The Rockford Fosgate P3SD4-10 conforms to CEA-2031 industry standards. This means your 10" subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time can damage voice coils.

VAST Surround

V.A.S.T. Stands for Vertical Attach Surround Technique, this technology significantly increases a subwoofer's effective radiating cone area up to 25%. This design allows for more output from an equivalent speaker size without increasing installation challenges. This is done by eliminating the large flat glue surface area (the landing), which allows the surround to be shifted for increased cone area. This improves efficiency and output dramatically.

Stitched Tinsel Leads

To reduce fatigue and prevent catastrophic damage from shorts the P3SD4-10 10" subwoofer uses stitched tinsel leads. By using this technology fatigue on the leads is dissipated over a greater area which improves the life of the subwoofer and contributes to a robust design.

Rockford Fosgate P3SD4-10 10" Punch P3S Shallow Mount Subwoofer - Dual 4 Ohm coils

  • 10 inch low profile shallow mount subwoofer for trucks and other vehicles where box size presents an installation challenge
  • 2.5" Voice Coil with spun-laced Nomex insulating collar
  • Anodized aluminum cone and dustcap
  • Dual linear spider with embedded 16 AWG tinsel leads
  • M-Roll Santoprene™ surround
  • Optimized for both sealed and vented enclosures
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • Shallow Motor Assembly

Power Handling Max:
  • Maximum Power: 600 Watts

Power Handling RMS:
  • 300 Watts nominal continuous power handling RMS

Quick Specs
  • Nominal Impedance: Dual 4 Ohm
  • Sensitivity: 83 dB @ 1Watt / 1meter

  • Mounting depth: 3.50 inches. (89.0 mm)
  • Cutout diameter: 9.06 inches. (230.0 mm)
More Information
Manufacturer Rockford Fosgate
Part Number P3SD4-10
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 4 ohm
FS 42.0 Hz
QES 0.90
QMS 6.00
QTS 0.78
RE 6.80
VAS 14.3 L
Xmax (millimeters) 8.1 mm
Sensitivity 83 dB
Frequency Response 45 Hz - 250 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 300 Watts
Power Handling Peak 600 watts
Shallow Mount Subwoofer Yes
Mounting Depth 3.00 Inches
Cutout Dimensions 9.00 Inches
Sealed Enclosure Recommended Size 0.50 ft3
Ported Enclosure Recommended Size 1.00 ft3
Color Black
Warranty 1 Year
UPC Code 780687332808
Return period 30 days
Exchange period 30 days
