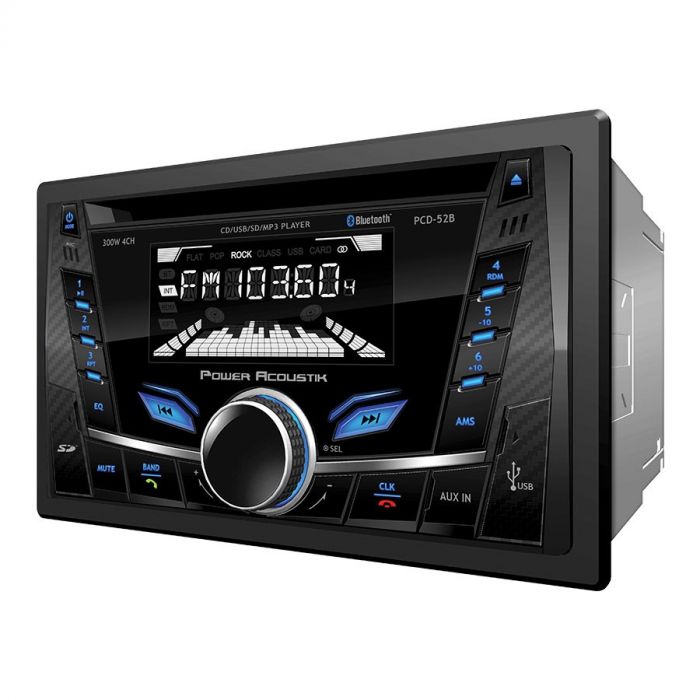

Power Acoustik PCD-52B Double DIN CD Receiver with Bluetooth
Expert Knowledge
Talk to a specialist
- Double DIN CD Receiver with Bluetooth
- Built in Bluetooth
- Variable Color Illumination
- Built-in Disc Slot
- Front USB port
- Front SD Card slot
- Front 3.5mm AUX input
Power Acoustik PCD-52B Double DIN CD Receiver with Bluetooth
- Features:
- Double DIN CD Receiver with Bluetooth
- ISO 2-Din Chassis, Mounting Brackets Included
- Variable Color Illumination
- Bluetooth 4.0 Phone Calling + A2DP Audio Streaming
- 10-Band 8dB Boost/Cut Equalizer & Preset EQs
- Built in microphone for voice recognition
- Front USB port
- Front SD Card slot
- Front 3.5mm AUX input
- Built-in Disc Slot
- Digital Media Playback:
- Audio Playback from Up to 64GB USB Flash Drive or Micro SD Card
- MP3 & WMA Audio Playback
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- Internal microphone on the front of unit
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- 2 - 2V Pre-Amp Outputs (Front and Rear Speakers)
- 1 - Subwoofer Pre-Amp Output
- 2 - Rear Video outputs to connect to an external monitors
- 1 - Rear Radio Antenna
- 1 - Front USB input
- 1 - Front AUX input
- 1 - Micro SD Card input
- Double DIN chassis
- Dimensions: 7"W x 7"D x 4"H
- Bluetooth:
- Inputs and Outputs:
| Manufacturer | Power Acoustik |
|---|---|
| Part Number | PCD-52B |
| Chassis Size | Double DIN |
| Illumination color | Full Color |
| Faceplate features | None |
| Disc Playback | CD |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| Front mounted auxiliary input | 3.5 mm audio input |
| USB input | Yes |
| SD Card input | Yes, microSD Card |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| Built in Crossover | High-pass, Low-pass |
| Warranty | 1 Year |
| UPC Code | 709483052239 |
| Return period | 30 days |
| Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
