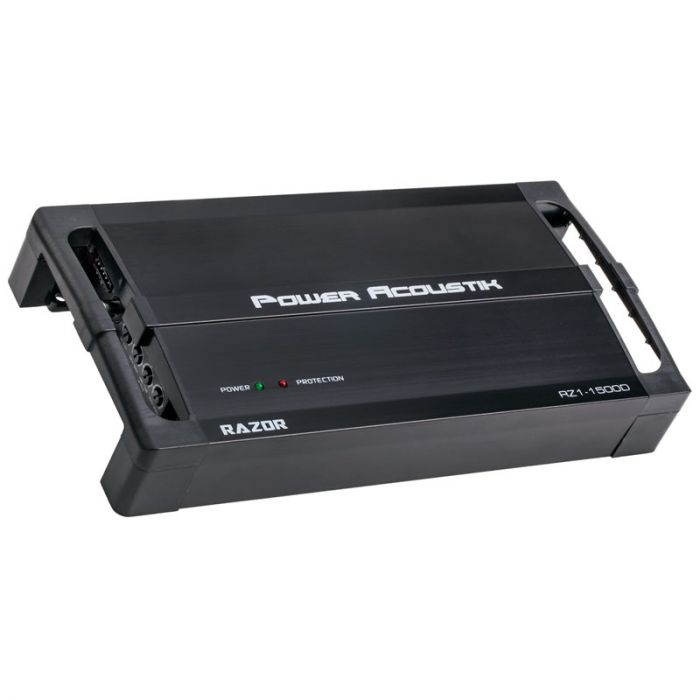

Power Acoustik RZ1-1500D Razor Series Class D Full Range Monoblock Amplifier
$105.99
In stock
SKU
RZ11500D
Expert Knowledge
Talk to a specialist
- 1500 Watt 1-channel Class-D Full range amplifier
- Pulse Width Modulated MOSFET power supply for exceptional power and current output
- Dark anodized aluminum heat sink for excellent heat dissipation
- Frequency response: 20 Hz - 30 kHz
- Speaker level inputs
- Max power 2-Ohm: 1500 Watts x 1
Unit includes: Mono amplifier, Remote bass control, Mounting hardware, and Installation instructions>
Sound Storm (SSL) EV1500M Evolution Series 1500 Watt Class-AB Mono Block Amplifier
Features:
Inputs and Outputs:
Max Power Output:
RMS Power Output:
Built in Crossover:
Dimensions:
Sound Storm (SSL) EV1500M Evolution Series 1500 Watt Class-AB Mono Block Amplifier
Features:
- 1500 Watt 1-channel Class-D amplifier specifically designed for subwoofers
- Pulse Width Modulated MOSFET power supply for exceptional power and current output
- Dual LED indicators: green for power and red for protection
- Soft turn on circuitry to reduce popping and high-volume damage
- Dark anodized aluminum heat sink for excellent heat dissipation
- Side mounted controls for crossover and gain
- Two-stage protection covers thermal, and speaker short circuits
- On-board Bass boosts from 0 to +12dB at 45 Hz
- Variable low-pass filter: 35-250 Hz, 12 dB/ octave
- Frequency response: 20 Hz - 30 kHz
- Nickel plated power and ground connectors suitable for ring or spade connectors
- Nickel plated RCA inputs
- Input sensitivity Low level: 250mV - 6V
- Includes wired bass control
- Speaker level inputs
- 1 Year Standard Warranty
Inputs and Outputs:
- 1 - RCA pair low level input
- 8 AWG power input connections
- 8 AWG speaker output connections
- 1 - Stereo speaker level inputs
Max Power Output:
- 2-Ohm: 1500 Watts x 1
RMS Power Output:
- 4-Ohm: 600 Watts x 1
- 2-Ohm: 900 Watts x 1
Built in Crossover:
- Mono Channels: Variable 50Hz - 250Hz @ 12dB/octave
Dimensions:
- Overall Dimensions: 10” (L) x 4-3/4” (W) x 1-1/2” (H)
| Manufacturer | Power Acoustik |
|---|---|
| Part Number | RZ11500D |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Total RMS Power at 1 ohm | 0.00 |
| Total RMS Power at 2 ohm | 900.00 |
| Total RMS Power at 4 ohm | 600.00 |
| Total Peak Power Output | 1,500.00 (Watts) |
| Amplifier Bridging | Not Bridgable |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| Preamp voltage | 6 volts |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 8 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 709483043756 |
| Return period | 30 days |
| Exchange period | 30 days |
