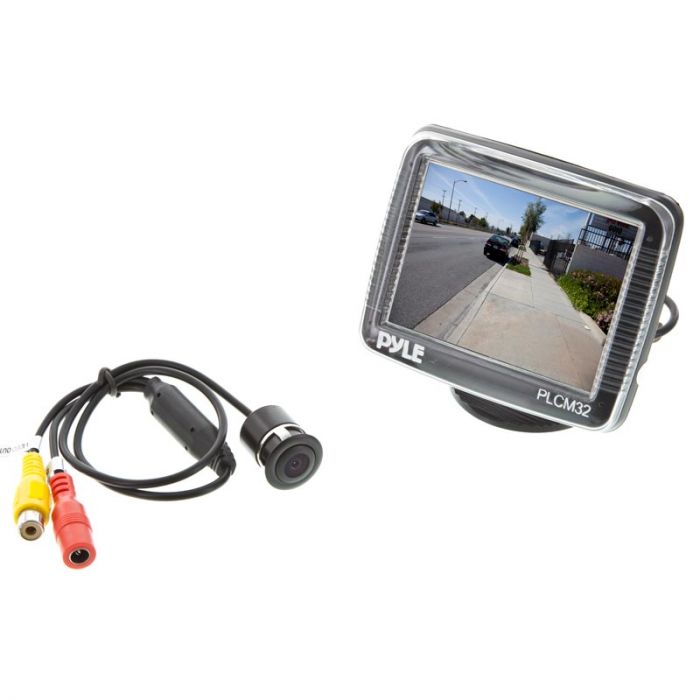

Pyle PLCM32 3.5" TFT LCD Monitor with surface / flush mount camera
Pyle PLCM32 3.5" TFT LCD Monitor with surface / flush mount camera
Key Features
3.5'' TFT LCD stand monitor Automatically switch when reversing 2 video inputs Camera includes flush and surface mount attachments Drill bit included
Unit includes: 3.5" LCD monitor, Flush / surface mount camera, Drill bit, 15 foot RCA cable, Wiring harness, and Instruction manual
Pyle PLCM32 3.5" TFT LCD Monitor with surface / flush mount camera features:
3.5'' TFT LCD stand monitor
Automatically switch when reversing
2 video inputs
NTSC system
Brightness: 250 cd/m
Contrast: 200:1
Screen dim: 3-3/4" (W) x 3-5/8" (H) x 1-5/8" (L)
17-ft male to male RCA video cable
Drill bit included
CMD image sensor
Total pixels: 628 x 586
Resolution: 420 TV Lines
Camera includes flush and surface mount attachments
Min. illumination: 0.1 LUX
Auto image adjustment
Video output: 1.0 Vpp-75Ω
Power Supply: DC 12V 200 mA
Camera dim: 3/4" (D) x 1" (L)
More Information
Manufacturer
Pyle
Part Number
PLCM32
LCD Screen Size
3 inch - 4 inch
Native Screen Resolution
480 x 234
Widescreen Display
4:3 Normal Aspect Ratio
LCD Screen Brightness
250 Nit
LCD back light type
LED
Trigger wire
Auto video sense trigger
Modulation
NTSC only
Slide track on back
No
Image Flip Function
No
Built in Speakers
No
Mount included
Yes, Pedistal stand
Auto on/off
Yes
Cigarette Lighter Cord Included
No
Audio Video inputs
1 Video Input
Wireless Remote Control
Yes
Monitor Type
Stand alone monitor
Back up camera type
Flush Mount Key hole camera
Built in Bluetooth
No Bluetooth
Reverse Image
Yes - Reverse Image
Camera Sensor type
CMD
Camera diameter
3/4" inch
Viewing Angle
110 degrees
Parking grid lines
No
Built in Microphone
No
Infrared Illumination
No
Waterproof ingress protection
IP66 - Dust; String Water Jets/Waves
Connector Type
RCA Cable
Wireless Transmission
Wired connection
Color
Black
Operation Voltage
12-15 Volt DC
Warranty
1 Year
UPC Code
068888892506
Return period
30 days
Exchange period
30 days
