Safesight SC0302-SC3102 3.5" Back up monitor with micro flush mount reverse camera

Rating:
88 % of 100
$117.99
In stock
SKU
SC0302-SC3102

Key Features

  • 3.5'' TFT LCD stand monitor
  • Automatically switch when reversing
  • 2 video inputs
  • Drill bit included

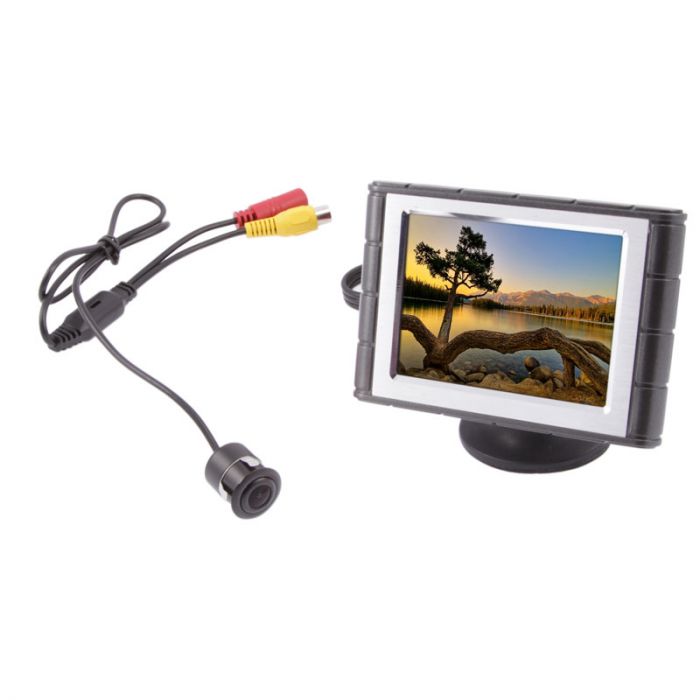

Unit includes: Reverse back up camera, 3.5" LCD Monitor, 18 foot RCA cable with power lead, Hole saw, DC Power cord

Safesight SC3102 3.5" Back up monitor
    Monitor Features:
  • 3.5" Active matrix TFT LCD Screen
  • 2 video inputs
  • Video input sense for reverse use, doesn't need a trigger wire run from the reverse light
  • Adjustable brightness button on back of display
  • Mirror image function button on back of display
  • 65 degree adjustable base for many different mounting options
  • Attractive aluminum bezel on monitor for modern look
    Monitor dimensions:
  • Dimensions without stand: 4 1/8" (W) x 2 15/16" (H) x 5/8" (D)
  • Dimensions without stand: 4 1/8" (W) x 4" (W) x 2 1/8" (D)


Safesight SC0302 Micro flush mount reverse camera with drill bit
    Camera features:
  • CMD image sensor for better picture quality
  • Micro flush mount camera - Micro sized
  • Drill bit is included for flush mounting in bumper included
  • Parking Assist grid lines for better distance determination
  • 18 foot RCA cable with integrated power wire for continuous use, not only for backing up great for trailers
  • Mirror image cut wire allows this camera to be used as a front camera or rear camera and have the proper orientation on screen
  • Parking grid line cut wire allows camera to display parking grid or for clear image
    Camera technical specifications
  • 648 x 488 CMD resolution imager
  • IP67 waterproof rating
  • 170 degree viewing angle
    Inputs and Outputs
    • (1) - 12 volt power connector (Red) center pin positive
    • (1) - RCA connector Video output
    • (1) - Green looped wire (Reverse image control)
    • (1) - White looped wire (Parking grid line control)
      Camera dimensions:
    • Camera dimensions: 3/4" (Diameter) x 15/16" (Length)
    • 18mm drill hole
More Information
Manufacturer Safesight
Part Number SC0302-SC3102
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 4:3 Normal Aspect Ratio
LCD Screen Brightness 300 Nit
LCD back light type LED
Trigger wire Auto video sense trigger
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers No
Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 2 Video Inputs
Wireless Remote Control No
Monitor Type Stand alone monitor
Back up camera type Flush Mount Key hole camera
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CMD
Camera diameter 5.8 mm
Viewing Angle 170 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Connector Type RCA Cable
Wireless Transmission Wired connection
Color Black
Operation Voltage 12-15 Volt DC
Warranty 1 Year
Return period 30 days
Exchange period 30 days
