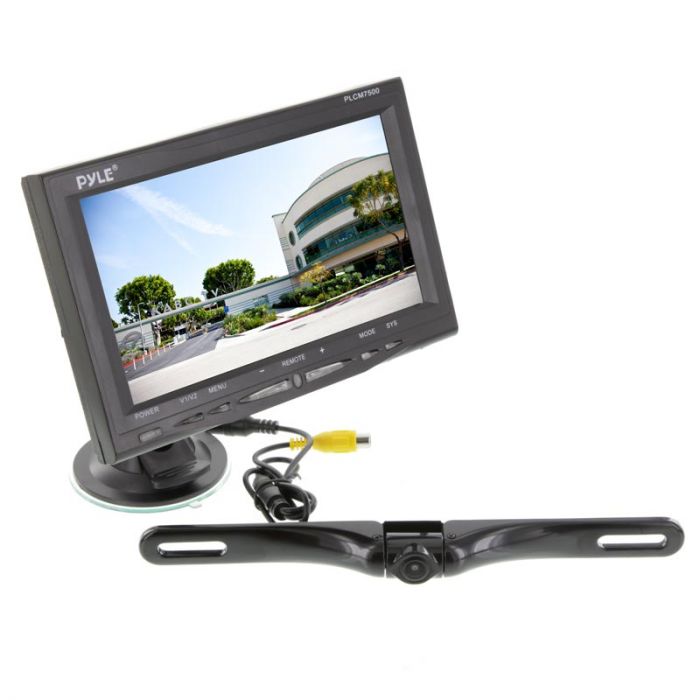

Pyle PLCM7500 7" TFT LCD Suction Cup Monitor with license plate mount camera

Pyle PLCM7500 7" TFT LCD Suction Cup Monitor with license plate mount camera

Pyle PLCM7500 7 inch back up camera system with license plate camera

More Views

Free Shipping on orders $99+

Overall Rating 4.8 (Based on 2 reviews)

Pyle PLCM7500 Product Highlights

  • 7'' TFT LCD stand monitor
  • Automatically switch when reversing
  • 2 video inputs
  • License plate camera
  • Suction cup mount
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!


Unit includes: 7" LCD monitor, License plate mount camera, Mounting hardware, 15 foot RCA cable, Wiring harness, Suction cup mount, Cigarette lighter cord, and Instruction manual

Pyle PLCM7500 7" TFT LCD Suction Cup Monitor with license plate mount camera features:

Monitor features:
  • 7'' TFT LCD stand monitor
  • 16:9 Wide screen display
  • Suction cup mount for top of dash or windshield mounting
  • Includes cigarette lighter cord for easy monitor installation
  • Automatically switches system on when reversing
  • 2 video inputs
  • NTSC / PAL system
  • Resolution: 1440 x 234
  • Brightness: 300 cd/m
  • Contrast: 200:1
  • Screen dimensions: 7-1/2" (W) x 4-3/4" (H) x 1" (D)

  • Camera features:

  • 17-ft male to male RCA video cable with pass through lead
  • License plate mount camera
  • Black zinc finish on metal camera housing
  • Parking grid lines
  • CMOS image sensor
  • Total pixels: 656 x 492
  • Resolution: 420 TV Lines
  • 170 degree viewing angle
  • Min. illumination: 0.2 LUX
  • IP67 weatther rating
  • Auto image adjustment
  • Video output: 1.0 Vpp-75Ω
  • Power Supply: DC 12V 200 mA
  • Camera dimensions: 10" (W) x 1-3/8" (H) x 1-1/4" (D)

Technical Specifications

Manufacturer Pyle
Part Number PLCM7500
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 1440 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Auto video sense trigger
Slide track on back No
Image Flip Function Image rotate
Built in Speakers No
Stand Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included Yes
Audio Video inputs 2 Video Inputs
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type License Plate Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CMOS
Camera diameter 3/4" inch
Viewing Angle 170 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Case included No
Connector Type RCA Cable
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 068888733731

Customer Reviews

Good product after only a short time use
Review by
Install (5 star for easy)
Fairly easy to install, good quality picture. I gave it a 4 star on the install for the difficulty of running the signal cable from the camera to the monitor. (Posted on 3/2/2017)
its a nice size for our RV
Review by
Install (5 star for easy)
Have not use it to much with our R V. It looks like it we be good when we have to back up for camping, or just parking. As far as I can see, it will work out just fine. (Posted on 5/30/2014)

Write Your Own Review

You're reviewing: Pyle PLCM7500 7" TFT LCD Suction Cup Monitor with license plate mount camera

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Gary Wirth, Thursday, March 6, 2014


The plcm7500 7". I want to put it in my 22' RV. Is there lot of cable to fit that size RV? Dose it come with a book to show you how to install it? Dose the camrea cable hook up to the tail light? I only want this to be use to backup my RV. Will this work for me? Gary


  • Posted by Store Owner on Thursday, March 6, 2014

    This system can be installed in an RV but it does not include the length of cable that you will need. You can purchase additional length cables here. Back up camera cables

    Please take a look at these systems as they are designed for RV's and have the proper cables.

    RV back up camera systems
