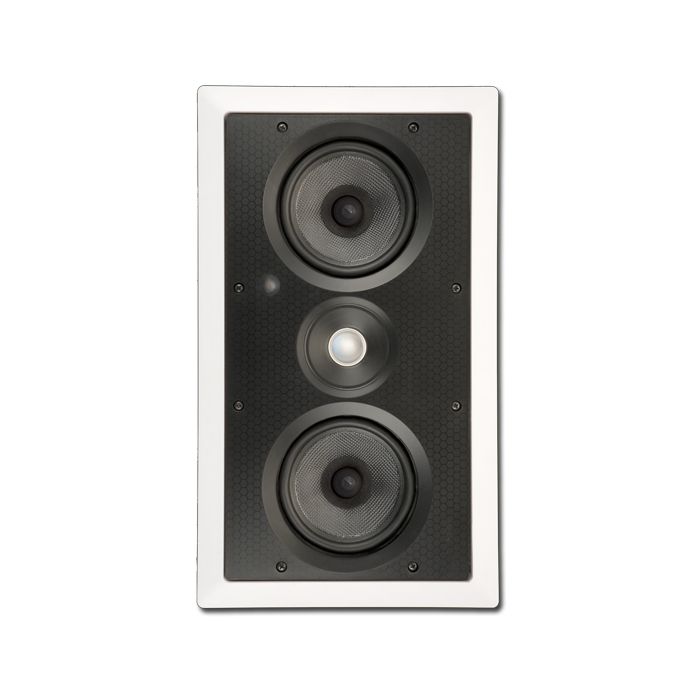

ArchiTech Prestige Series PS-525 LCRS Dual Kevlar 5-1/4" 2-Way In-Wall Speaker
Quality Mobile Video
Free Shipping on orders $99+
Quality Mobile Video PS-525LCRS Product Highlights
1" lens-free aluminized ferrofluid, pivoting dome tweeter Dual 5.25" woven Kevlar® woofers with butyl rubber surrounds Specially designed for use in left, center, right & surround loudspeaker positions of home theater systems Magnetically Shielded Can be used in 2.1, 5.1, 6.1, 7.1 Home Theater systems Mounting provision for IR device
Unit includes: In wall loudspeaker, Speaker grille, Mounting Clamp ring, Clamp screws, and Instruction manual ArchiTech PS-525 LCRS Dual Kevlar 5-1/4" 2-Way In-Wall Speaker features:
Specially designed for use in left, center, right & surround loudspeaker positions of home theater systems
Can be used in 2.1, 5.1, 6.1, 7.1 Home Theater systems
Dual 5.25" woven Kevlar® woofers with butyl rubber surrounds
1" lens-free aluminized ferrofluid, pivoting dome tweeter
Far-forward woofer mount with pole-mounted tweeter minimizes diffraction while maximizing dispersion
Mounting provision for IR device
High temperature Aluminum voice coils
Proven Mounting System
Frame and Grilles may be painted to match mounting surface
Required depth: 3.5"
2-way rectangular design
Imp: 8Ω nominal
50W–100W per channel
Overall Dimensions: 9" (W) x 15-3/4" (H)
Cut-out Dimensions: 7-7/8" (W) x 14-7/16" (H) x 3-1/2" (D)
Quality Mobile Video
45 - 22,000 Hz
Built in Crossover
Speaker level inputs
Impedance (per voice coil)
Power Handling RMS
Sub enclosure type
Number of speakers / subs
Power Handling Peak
Speaker system type
Single voice coil
