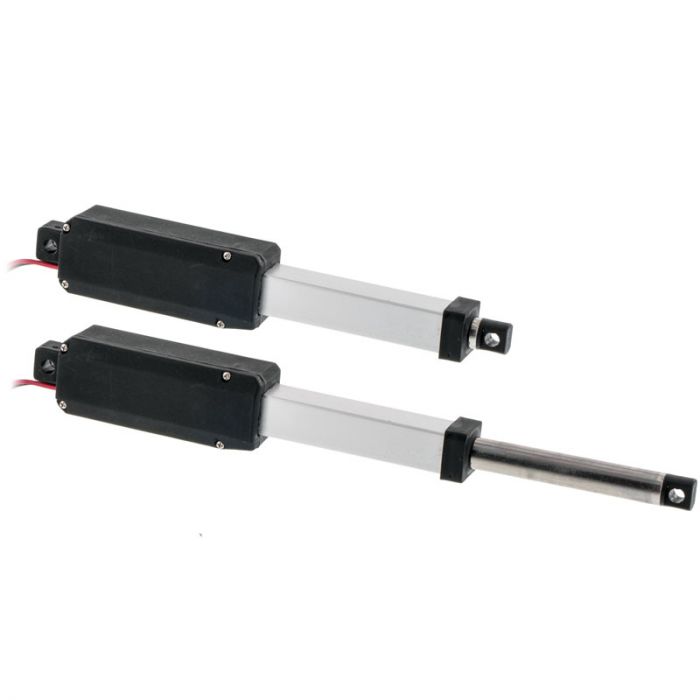

QMV 6102M Micro 12 Volt Linear Actuator with 2" stroke - 4.5 LB Pound Force capacity
QMV 6102M Micro 12 Volt Linear Actuator with 2" stroke - 4.5 LB Pound Force capacity
Key Features
The smallest 12 volt linear actuator on the market Stroke 2" Speed: 0.6 inch per second Capacity: 4.5 LB Pound Force Voltage: 12 volts DC Built in fixed limit switches, these are not adjustable Designed to push or pull a load along its full stroke length
Unit Includes: 2" Linear Actuator
Quality Mobile Video 6102M Micro 12 Volt Linear Actuator with 2" stroke - 4.5 LB Pound Force capacity
Features:
Motorize virtually anything even with minimal space for an actuator with our Quality Mobile Video micro linear actuators
The smallest 12 volt linear actuator on the market perfect for motorizing amplifier racks, dash panels, or to make small robots
Not designed for application where there is high moisture, not IP rated
Simple two wire connection, apply a DC voltage to extend the actuator, and reverse the polarity to retract it
Designed to push or pull a load along its full stroke length
Stroke 2"
Speed: 0.6 inch per second
Capacity: 4.5 LB Pound Force
Voltage: 12 volts DC
Built in fixed limit switches, these are not adjustable
Anodized Aluminum housing with high-impact strength plastic end caps and motor housing
Internally lubricated ACME jack screw
Sold individually
Dimensions:
Closed Length: 5-5/8"
Open Length: 7-5/8"
Overall dimensions (Closed): 15/16" x 3/4" x 5-5/8"
More Information
Manufacturer
Quality Mobile Video
Part Number
6102M
Warranty
1 Year
Actuator load
4.5 pounds
Linear actuator speed
.6 inch per second
Linear actuator stroke
2 inch
Operation Voltage
12-15 Volt DC
Waterproof ingress protection
None
Return period
30 days
Exchange period
30 days
