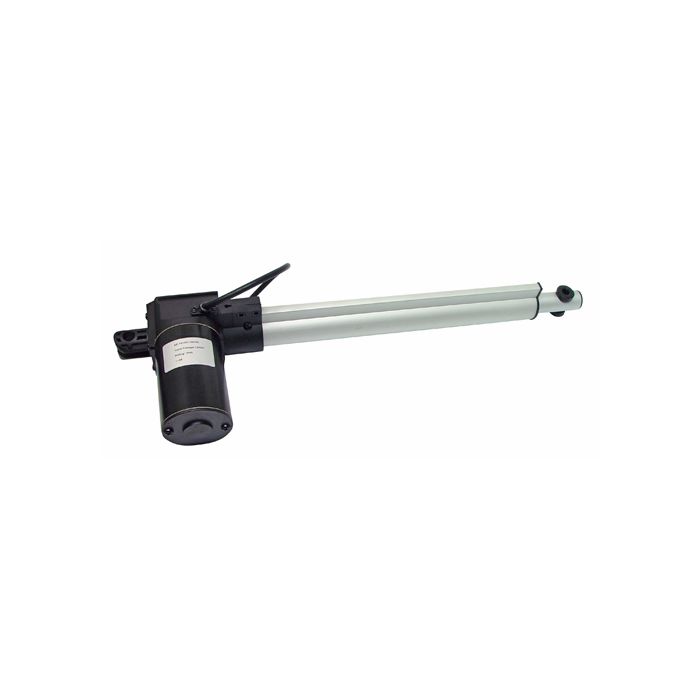

Quality Mobile Video TOP-A7612D 12" Stroke High Speed Linear Actuator 12 Volt with Limit Switches - 150 LB capacity

$134.99
In stock
SKU
TOP-A7612D

Key Features

  • 12 inch stroke
  • High-speed 1-1/2" per second speed
  • 150 pound useful load
  • IP 43 rating
Unit Includes: Linear Actuator and Instruction manual

Quality Mobile Video TOP-A7612D 12" Stroke High Speed Linear Actuator 12 Volt with Limit Switches features:
  • Stroke 12"
  • Closed Length 20 1/2"
  • Open Length 32 1/2"
  • Speed per second 1.5 inch per second
  • Useful load pounds: 150
  • Power consumption 3.5 amps at 12vdc no load
  • Power consumption 5.5 amps at 12vdc at load
  • Built in limit switches
  • Anodized Aluminum Housing
  • Internally lubricated jack screw
  • Side mounted DC motor
  • 10K Ohm Potentiometer for feedback as to where the actuator is in its extension, used in control systems
  • Fixed internal limit switches
  • IP 43 rating
More Information
Manufacturer Quality Mobile Video
Part Number TOP-A7612D
Warranty 1 Year
Actuator load 150 pounds
Linear actuator speed 1.5 inch per second
Linear actuator stroke 12 inch
Operation Voltage 12-15 Volt DC
Waterproof ingress protection IP43 - No Dust protection; Light water spray
Return period 30 days
Exchange period 30 days
