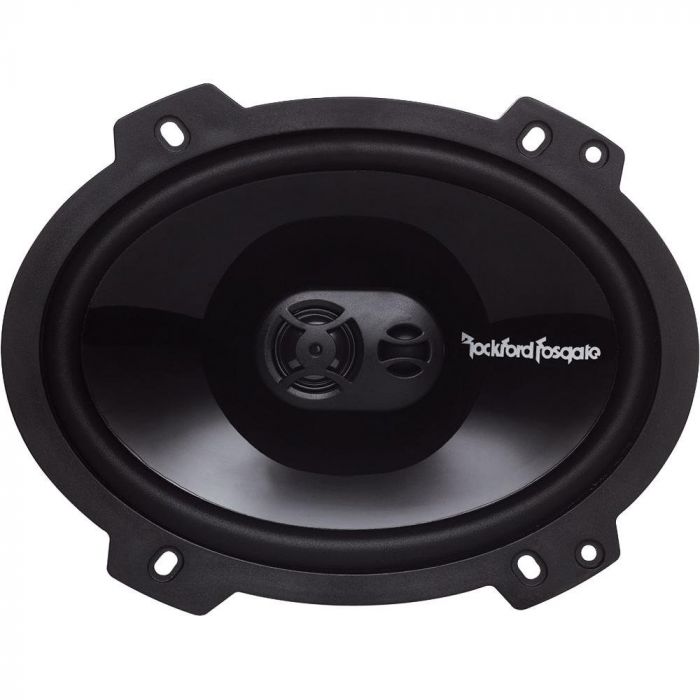

Rockford Fosgate P1683 Punch 3-Way 6"x8" Full Range Speaker

Rockford Fosgate P1683 Punch 3-Way 6"x8" Full Range Speaker

P1683 Punch 3-Way 6"x8" Full Range Speaker


More Views

Rockford Fosgate
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Rockford Fosgate P1683 Product Highlights

  • It is a three-way full range speaker that is rated at 65 watts RMS.
  • It includes two speakers with OEM adapter plate and high-pass crossovers.
  • It comes in a standard FlexFit basket design.
  • It features a butyl rubber surround for an enhanced sound quality.
  • It comes as mineral-filled and polypropylene injection molded cone.
    Expert Advice is a phone call away

    Expert Knowledge

    Talk to a specialist

    Buy everything you need as a package and SAVE!


    System includes: Two speakers, integrated high-pass crossovers and mounting hardware

    Rockford Fosgate P1683 Punch 3-Way 6"x8" Full Range Speaker


    • FlexFit basket design
    • OEM adapter plate included
    • PEI dome tweeter
    • Klippel Verified speakers
    • VAST Surround technology to increases effective radiating cone
    • Butyl rubber surround
    • Mineral-filled & polypropylene injection molded cone

    Power Handling Max:

    • Maximum Power: 130 Watts

    Power Handling RMS:

    • RMS Power: 65 Watts

    Quick Specs:

    • Frequency Response: 65 Hz - 24 KHz
    • Nominal Impedance: 4-Ohm
    • Crossover: Not available - tweeter has built-in crossover
    • Sensitivity: 90dB
    • Type: 3-way full range speakers


    • Midrange Diameter: 6"x8"
    • Midrange Depth: 2.28" (58mm)
    • Tweeter Diameter: 0.75" (19.0mm)

    Technical Specifications

    Manufacturer Rockford Fosgate
    Part Number P1683
    Speaker Size 6 x 8 inch
    Speaker system type 3 - way Component
    Frequency Response 65 - 24,000 Hz
    Voice coils Dual voice coil
    Impedance (per voice coil) 4 ohm
    Power Handling RMS 70 Watts
    Power Handling Peak 130 watts
    Sensitivity 90 dB
    FS 35.9
    QES 0.83
    QMS 5.72
    QTS 0.60
    RE 6.80
    VAS 0.03ft
    Xmax (millimeters) 10 mm
    Mounting Depth $2.25
    Color Black
    Warranty 1 Year
    UPC Code 780687329044
