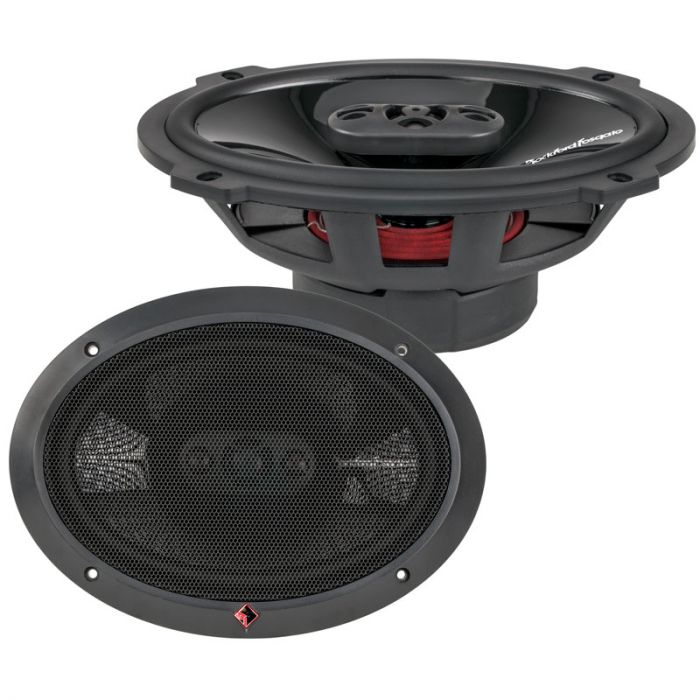

Rockford Fosgate P1694 Punch 4-Way 6" x 9" Full Range Speaker
Expert Knowledge
Talk to a specialist
- 6" x 9" 4-way full range speaker
- Includes OEM adapter plates
- FlexFit basket design
- Butyl rubber surround
- Mineral-filled polypropylene injection molded cone
- Dual 1/2 inch tweeters
- 1 inch titanium mid-range
- ICC crossover
- 75 Watts RMS power handling
Speakers are the most vital component in any audio system let-alone a car stereo system. Rockford Fosgate brings the intermediate line named the Punch series. The P1694 is a full range 6" x 9" speaker that offers supreme flexibility in mounting with its flex-fit basket. The unique mounting area has slots that make lining up to factory mounting screws much easier. The flex-fit basket is especially useful in odd shaped mounting locations where exact screw patterns are not possible.
To make installation even easier, the P1694 has an ICC crossover. ICC stands for integrated concealed crossover; the crossover is concealed in the woofer basket and makes installation simplier. In an effort to decrease installation time further, the P1694 includes an OEM plate that allows you to install these speakers in odd shaped openings without gaps to enhance the bass.
For optimum sound quality and output Rockford Fosgate uses a proprietary technology named V.A.S.T or Vertical Attach Surround Technique. V.A.S.T. technologies increased cone size without increasing the woofer basket size. This technology yields more volume and improved sound quality.
Rockford Fosgate P1694 Punch 4-Way 6" x 9" Full Range Speaker:Features:
- Flex-fit basket design ensures compatibility with odd shaped factory speaker locations
- OEM adapter plate included for easy compatibility with multiple speaker sizes
- PEI dome tweeter
- Klippel Verified speakers
- VAST Surround technology to increases effective radiating cone by nearly 25%
- ICC crossover - hides the crossover for easier installation and cleaner look
- Butyl rubber surround
- Mineral-filled & polypropylene injection molded cone
Power Handling Max:
- Maximum Power: 150 Watts
Power Handling RMS:
- RMS Power: 75 Watts
Quick Specs:
- Frequency Response: 60 Hz - 24 KHz
- Nominal Impedance: 4-Ohm
- Crossover: Not available - tweeter has built-in crossover
- Sensitivity: 91dB
- Type: 4-Way Full-Range speakers
Dimensions:
- Woofer Diameter: 6" x 9"
- Woofer Depth: 3-1/8" (78mm)
- Midrange Diameter: 1"
- Tweeter Diameter: 1/2" (12.0mm)
- Mounting Diameter: 5-3/4" x 8-1/2"
| Manufacturer | Rockford Fosgate |
|---|---|
| Part Number | P1694 |
| Speaker Size | 6 x 9 inch |
| Speaker system type | 4 - way |
| Frequency Response | 40 - 21000 Hz |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| Power Handling RMS | 80 Watts |
| Power Handling Peak | 150 watts |
| Sensitivity | 91 dB |
| FS | 60 Hz |
| QTS | 0.72 |
| RE | 4.0 ohms |
| VAS | 22 L |
| Xmax (millimeters) | 4.5 mm |
| Mounting Depth | 3.07 Inches |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 780687329068 |
| Return period | 30 days |
| Exchange period | 30 days |
