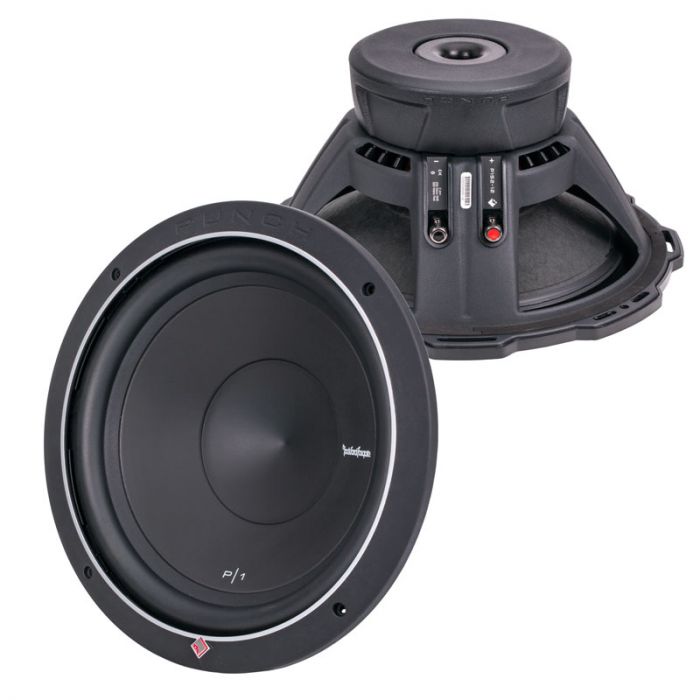

Rockford Fosgate P1S2-12 12" Punch P1 2-Ohm SVC Subwoofer for Car
$117.99
Out of stock
SKU
P1S2-12
Expert Knowledge
Talk to a specialist
- 12" P1 Punch subwoofer
- Single 2-Ohm voice coil
- 250 Watts RMS of power handling
- 10-AWG nickel plated push terminals
- VAST technology that increases the subwoofer’s effective radiating cone area up to 25%
- Kevlar fiber reinforced paper cone for enhanced bass
- StampCast basket that minimizes resonance
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Linear spider is embedded with 16 AWG tinsel leads for more reliable performance
- Flex-fit basket for better installation capabilities
Unit Includes: 12 inch car subwoofer driver, cast aluminum trim ring and instruction manual
Rockford Fosgate P1S2-12 12" Punch P1 2-Ohm SVC Subwoofer for Car
Features:
Rockford Fosgate P1S2-12 12" Punch P1 2-Ohm SVC Subwoofer for Car
Features:
- 12 inch subwoofer with single 2 ohm voice coil
- Kevlar fiber reinforced paper cone
- Custom 10-AWG nickel plated push terminals
- StampCast basket with integrated spider venting
- Vented spider cavity for keeping the voice-coil cool
- Linear spider with embedded 16 AWG tinsel leads
- Tear and fatigue resistant poly-cotton spider
- Protective PVC textured magnet cover
- Ferrite magnet structure
- Optimized motor magnetics with extended pole piece and bumped back plate
- High-temp voice coil with spun-laced Nomex® re-enforcement collar
- Extended pole piece and bumped vented back-plate
- High density NBR half-roll surround with VAST technology
- Soft touch ABS trim ring with optional grille
Power Handling Max:
- Maximum Power: 500 Watts
Power Handling RMS:
- 250 Watts nominal continuous power handling RMS
Quick Specs:
- Nominal Impedance: Single 2 -Ohm
- Sensitivity: 86 dB @ 1Watt / 1meter
Dimensions:
- Mounting depth: 6.0 inches. (152.4 mm)
- Cutout diameter: 11.25 inches. (285 mm)
| Manufacturer | Rockford Fosgate |
|---|---|
| Part Number | P1S2-12 |
| Driver Size | 12 inch |
| Subwoofer Shape | Round |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 2 ohm |
| FS | 25.00 Hz |
| QES | 0.84 |
| QMS | 3.39 |
| QTS | 0.55 |
| RE | 1.8 |
| VAS | 88.3 L |
| Xmax (millimeters) | 9.0 mm |
| Sensitivity | 86 dB |
| Frequency Response | 20 - 250 Hz |
| Sub enclosure type | Banpass, Ported / Vented, Sealed |
| Power Handling RMS | 200 Watts |
| Power Handling Peak | 500 watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | $6.00 |
| Cutout Dimensions | $11.25 |
| Sealed Enclosure Recommended Size | 1.02 ft3 |
| Ported Enclosure Recommended Size | 1.79 ft3 |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 780687342425 |
| Return period | 30 days |
| Exchange period | 30 days |
