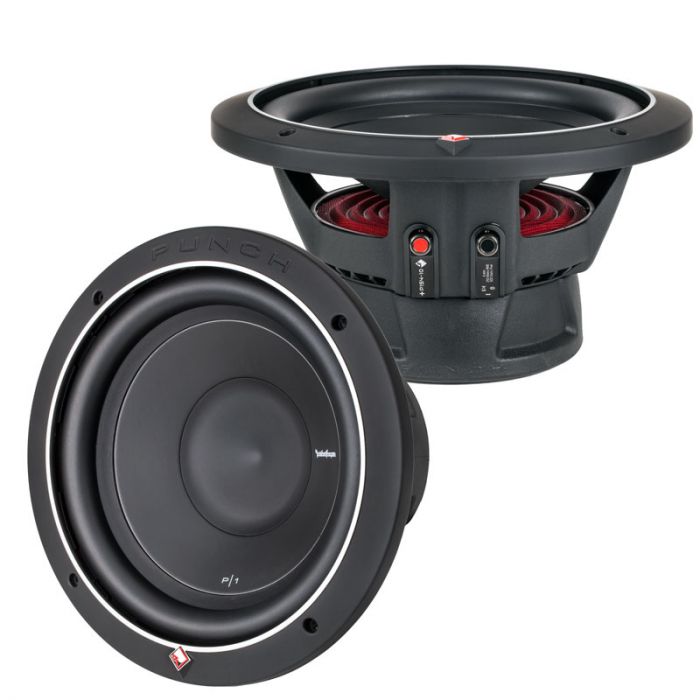

Rockford Fosgate P1S4-10 10" Punch P1 4-Ohm SVC Car Subwoofer
$106.99
Out of stock
SKU
P1S4-10
Expert Knowledge
Talk to a specialist
- 10" Punch subwoofer featuring a single 4-Ohm voice coils and 250 Watts RMS of power handling
- 10-AWG nickel plated push terminals
- It has a Kevlar fiber reinforced paper cone for enhanced bass
- Single tear and fatigue resistant poly-cotton spider with embedded 16 AWG tinsel leads
- Flex-fit basket for better installation
- VAST technology that increases the subwoofer’s effective radiating cone area up to 25%
- High-temperature 4-layer voice coil with spun-laced Nomex reinforcement collar
Unit Includes: 10 inch subwoofer driver, Soft touch ABS trim ring, and instruction manual.
Rockford Fosgate P1S4-10 10" Punch P1 4-Ohm SVC Subwoofer:
Features:
Power Handling Max:
Power Handling RMS:
Quick Specs:
Dimensions:
Rockford Fosgate P1S4-10 10" Punch P1 4-Ohm SVC Subwoofer:
Features:
- 10 inch subwoofer with single 4 ohm voice coil
- Kevlar fiber reinforced paper cone
- Custom 10-AWG nickel plated push terminals
- StampCast basket with integrated spider venting
- Vented spider cavity for keeping the voice-coil cool
- Single tear and fatigue resistant poly-cotton spider with embedded 16 AWG tinsel leads
- Protective PVC textured magnet cover
- Optimized motor magnetics with extended pole piece and bumped backplate.
- High-temperature 4-layer voice coil with spun-laced Nomex reinforcement collar
- Extended pole piece and bumped vented backplate
- Tall profile Natural Butyl Rubber surround with VAST technology
- Soft touch ABS trim ring with optional grille
- 23 Hz - 250 Hz frequency response
Power Handling Max:
- Maximum Power: 500 Watts
Power Handling RMS:
- 250 Watts nominal continuous power handling RMS
Quick Specs:
- Nominal Impedance: Dual 4 -Ohm
- Sensitivity: 84 dB @ 1Watt / 1meter
Dimensions:
- Mounting depth: 5.33 in. (135.4 mm)
- Cutout diameter: 9.125 in. (232 mm)
| Manufacturer | Rockford Fosgate |
|---|---|
| Part Number | P1S4-10 |
| Driver Size | 10 inch |
| Subwoofer Shape | Round |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| FS | 30.00 Hz |
| QES | 0.61 |
| QMS | 3.00 |
| QTS | 0.52 |
| RE | 3.60 ohms |
| VAS | 40.00 L |
| Xmax (millimeters) | 9.0 mm |
| Sensitivity | 85 dB |
| Frequency Response | 23 - 250 Hz |
| Sub enclosure type | Banpass, Ported / Vented, Sealed |
| Power Handling RMS | 200 Watts |
| Power Handling Peak | 500 watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | $5.33 |
| Cutout Dimensions | $9.13 |
| Sealed Enclosure Recommended Size | 0.59 ft3 |
| Ported Enclosure Recommended Size | 1.4 ft3 |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 780687332594 |
| Return period | 30 days |
| Exchange period | 30 days |
