DISCONTINUED - Rockford Fosgate P1S4-8 8" Punch P1 4-Ohm SVC Subwoofer for Car

DISCONTINUED - Rockford Fosgate P1S4-8 8" Punch P1 4-Ohm SVC Subwoofer for Car

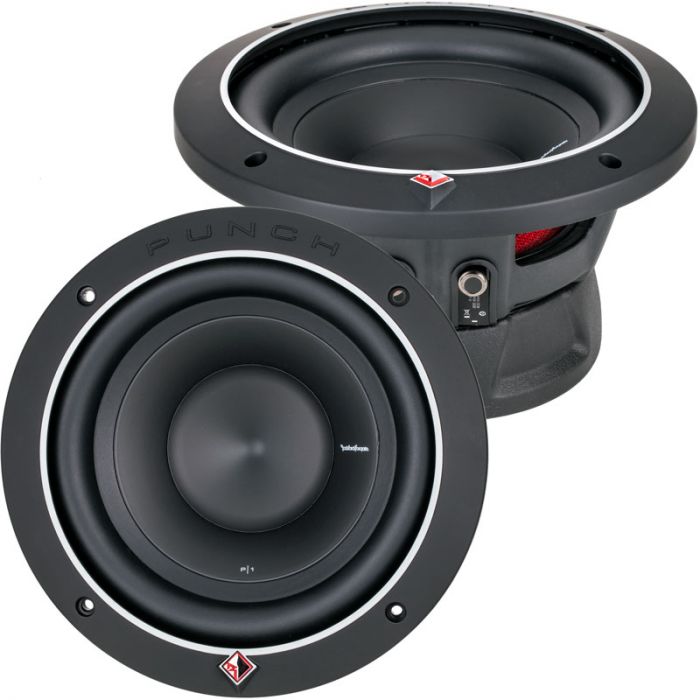

Rockford Fosgate P1S4-8 8" Punch P1 4-Ohm SVC Subwoofer - Main



More Views

Rockford Fosgate
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Rockford Fosgate P1S4-8 Product Highlights

  • It is a 8" Punch subwoofer featuring 4-Ohm voice coils and 200 Watts RMS of power handling
  • Its boasts of a StampCast basket that minimizes resonance
  • It features a Flex-fit basket for better installation
  • Its linear spider is embedded with 16 AWG tinsel leads for more reliable performance
  • It has a Kevlar fiber reinforced paper cone for enhanced bass
  • It features a protective PVC textured magnet cover
  • It features a High-temp voice coil with spun-laced Nomex re-inforcement collar
  • It is fitted with VAST technology that increases the subwoofer’s effective radiating cone area up to 25%
  • It has custom 10-AWG nickel plated push terminals
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!

Overview

Unit Includes: Car subwoofer driver, soft touch ABS trim ring, optional grill insert and instruction manual.

Rockford Fosgate P1S4-8 8" Punch P1 4-Ohm SVC Subwoofer:

Features:
  • StampCast basket with integrated spider vent1ing
  • Linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex re-inforcement collar
  • Kevlar fiber reinforced paper cone
  • Protective PVC textured magnet cover
  • Extended pole piece and bumped vented backplate
  • Custom 10-AWG nickel plated push terminals
  • Soft touch ABS trim ring with optional grille


Power Handling Max:
  • Maximum Power: 400 Watts


Power Handling RMS:
  • 200 Watts nominal continuous power handling RMS


Quick Specs:
  • Nominal Impedance: Dual 4 -Ohm
  • Sensitivity: 84 dB @ 1Watt / 1meter


Dimensions:
  • Mounting depth: 4.39 in. (111.4 mm)
  • Cutout diameter: 7.13 in. (181 mm)

Technical Specifications

Manufacturer Rockford Fosgate
Part Number P1S4-8
Driver Size 8 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS 39.0 Hz
QES 0.53
QMS 4.00
QTS 0.47
RE 3.75
VAS 12 L
Xmax (millimeters) 5.3 mm
Sensitivity 83.5 dB
Frequency Response 39 - 250 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 200 Watts
Power Handling Peak 400 watts
Shallow Mount Subwoofer No
Mounting Depth $4.00
Cutout Dimensions $7.00
Sealed Enclosure Recommended Size No
Ported Enclosure Recommended Size No
Color Black
Warranty 1 Year
UPC Code 780687332570
