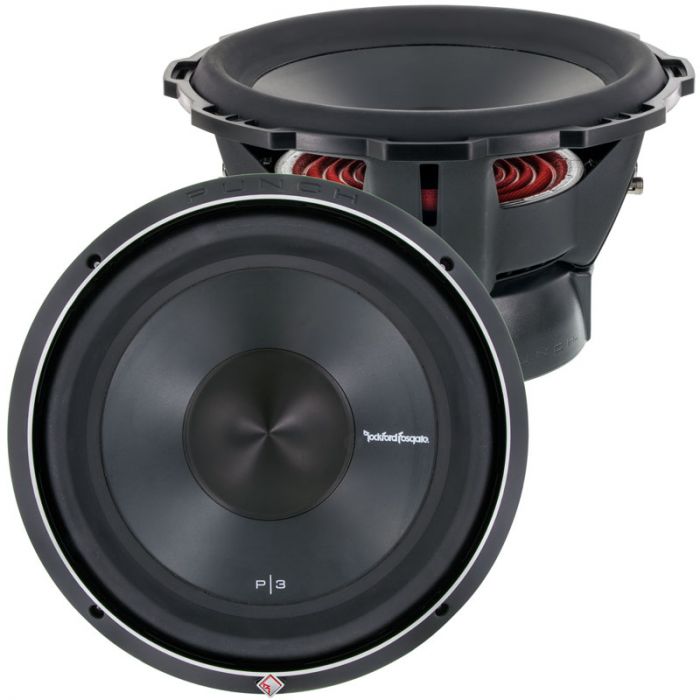

Rockford Fosgate P3D2-12 12" Punch P3 2-Ohm DVC Subwoofer

Unit Includes: Car subwoofer driver, optional grill insert, cast aluminum trim ring and instruction manual

Rockford Fosgate Punch Stage 3

Rockford Fosgate has taken their P3 subwoofers to the highest level. The Stage 3 subwoofers offer deep bass and unparallelled quality with the best features. These subwoofers accept up to 500 watts of power RMS, the reinforced Kevlar 12" cone provides excellent sound quality with minimal distortion. The new dual linear spider keeps the cone in perfect alignment and allows for high excursion levels. Checkout all of the features of the P3D2-12 12" subwoofer.

Heat is the #1 concern with subwoofers, dissipating the heat is the challenge. Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Aluminum is an excellent heat-sink and allows the Rockford P3D2-12 subwoofer to stay cool during high volume conditions. The high-temperature voicecoil is designed with a Nomex reinforcement collar and meant to handle even the loudest volume levels.

The Rockford Fosgate P3D2-12 conforms to CEA-2031 industry standards. This means your 12" subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time can damage voice coils.

V.A.S.T. Stands for Vertical Attach Surround Technique, this technology significantly increases a subwoofer's effective radiating cone area up to 25%. This design allows for more output from an equivalent speaker size without increasing installation challenges. This is done by eliminating the large flat glue surface area (the landing), which allows the surround to be shifted for increased cone area. This improves efficiency and output dramatically.

To reduce fatigue and prevent catastrophic damage from shorts the P3D2-12 12" subwoofer uses stitched tinsel leads. By using this technology fatigue on the leads is dissipated over a greater area which improves the life of the subwoofer and contributes to a robust design.

• 12 inch subwoofer with dual 2 ohm voice coils, allowing you to wire woofer as a 1 ohm or 4 ohm woofer
• Kevlar fiber reinforced paper cone
• Custom 10-AWG nickel plated push terminals
• Rigid die-cast aluminum basket to keep perfect voice coil gap during high excursion levels
• Vented spider cavity for keeping the voice-coil cool
• Dual linear spider with embedded 16 AWG tinsel leads
• Protective PVC textured magnet cover
• Double stack ferrite magnet structure
• Optimized motor magnetics with extended pole piece and bumped back plate
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Extended pole piece and bumped vented backplate
• Tall profile true Santoprene surround with VAST technology
• Diamond cut cast aluminum trim ring with optional grille

Power Handling Max:

• Maximum Power: 1200 Watts

Power Handling RMS:

• 600 Watts nominal continuous power handling RMS

Quick Specs:

• Nominal Impedance: Dual 2 -Ohm
• Sensitivity: 85 dB @ 1Watt / 1meter

Dimensions:

• Mounting depth: 6.66 inches. (169.3 mm)
• Cutout diameter: 11.25 inches. (285 mm)
