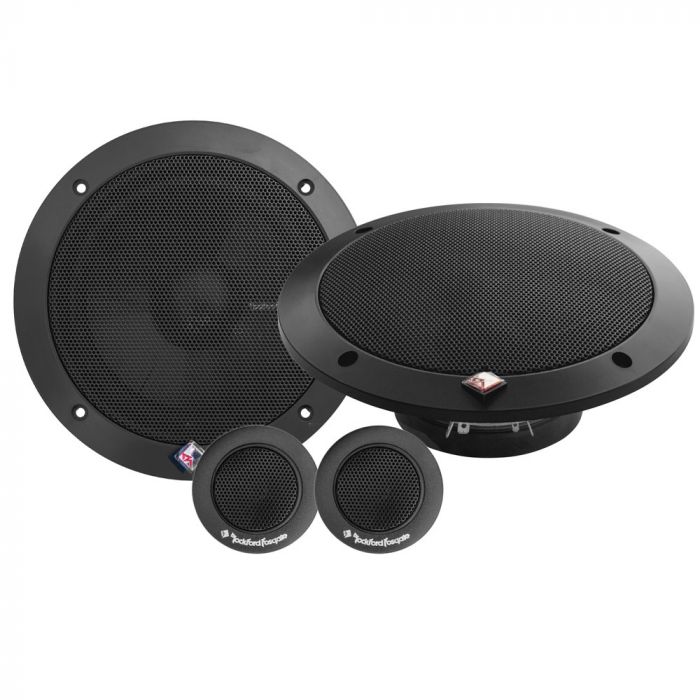

Rockford Fosgate R16-S Prime 6" Component System

Rockford Fosgate R16-S Prime 6" Component System

R16-S Prime 6" Component System

More Views

Rockford Fosgate
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Rockford Fosgate R16-S Product Highlights

  • It is a two-way component system that is rated at 40 watts.
  • It comes with a 1/2" (13mm) Mylar balanced dome tweeter.
  • It features a foam surround system.
  • It includes a Mica-injected polypropylene cone.
  • It has a stamped steel basket design.
    Expert Advice is a phone call away

    Expert Knowledge

    Talk to a specialist

    Buy everything you need as a package and SAVE!


    System includes: Two woofers with grilles, two tweeters with integrated crossovers and mounting hardware

    Rockford Fosgate R16-S Prime 6" Component System

    • 1/2" (13mm) mylar balanced dome tweeter
    • Foam surround
    • Klippel Verified speakers
    • VAST Surround technology to increases effective radiating cone
    • Mica-injected polypropylene cone
    • Stamped steel basket

    Power Handling Max:
    • Maximum Power: 80 Watts

    Power Handling RMS:
    • RMS Power: 40 Watts

    Quick Specs:
    • Frequency Response: 58Hz - 20kHz
    • Nominal Impedance: 4-OhmDimensions
    • Crossover: Tweeter High-Pass (HP): 4.5 kHz at 6dB/octave
    • Sensitivity: 85 dB
    • Type: 2-way component system

    • Midrange Diameter: 6"
    • Midrange Depth: 1.97" (50.1 mm)
    • Tweeter Diameter: 0.5" (13 mm)
    • Tweeter Depth: 1.06" (26.88 mm)

    Technical Specifications

    Manufacturer Rockford Fosgate
    Part Number R16-S
    Speaker Size 6 inch
    Speaker system type 2 - way Component
    Frequency Response 60 - 20000 Hz
    Voice coils Dual voice coil
    Impedance (per voice coil) 4 ohm
    Power Handling RMS 40 Watts
    Power Handling Peak 80 watts
    Sensitivity 89 dB
    FS 30.7
    QES 0.84
    QMS 5.60
    QTS 0.52
    RE No
    VAS 0.03ft
    Xmax (millimeters) 13.9
    Mounting Depth $7.00
    Color Black
    Warranty 1 Year
    UPC Code 780687341145
