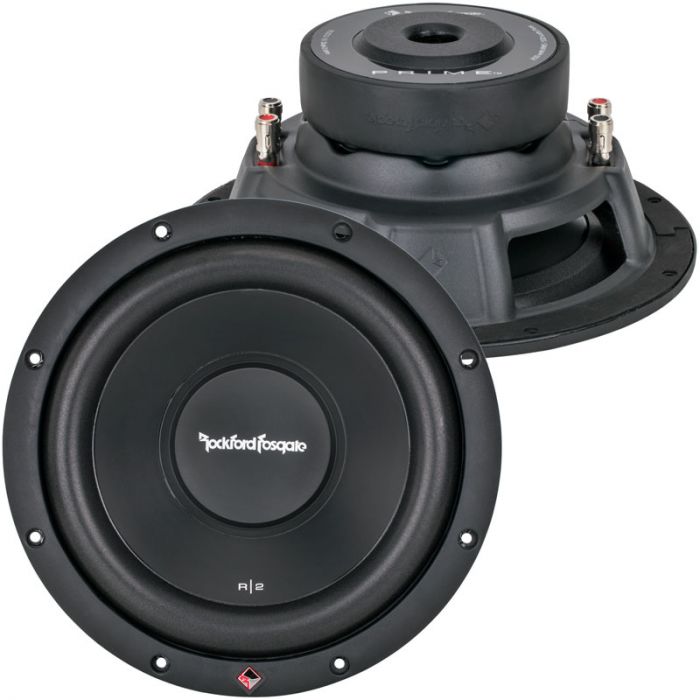

Rockford Fosgate R2D2-10 10" Prime R2 Series Subwoofer - Dual 2-Ohm Voice Coil

$74.99
Out of stock
SKU
R2D2-10

Key Features

  • 10” DVC subwoofer featuring dual 2-Ohm voice coils and 250 Watts RMS of power handling
  • 12 AWG compression terminals
  • StampCast basket with spider venting that keeps the motor cool
  • Anodized Aluminum Voice Coil Former for quick heat dissipation
  • Linear spider with embedded 16 AWG tinsel leads
  • Mica injected polypropylene cone for enhanced bass
  • Optimized for both vented and sealed enclosures
Includes: Car subwoofer driver, integrated PVC trim ring and Instruction manual.

Rockford Fosgate R2D2-10 10" Prime R2 2-Ohm DVC Subwoofer:

Features:
  • 10 inch subwoofer with dual 4 ohm voice coils, allowing you to wire woofer as a 4 ohm or 1 ohm woofer
  • 2 inch high-temperature voice-coil
  • 43 ounce magnet
  • Optimized for both sealed and vented enclosures
  • Anodized aluminum voice coil former
  • 12 AWG compression terminals
  • Mica injected polypropylene cone
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • Linear spider with embedded 16 AWG tinsel leads


Power Handling Max:
  • Maximum Power: 500 Watts


Power Handling RMS:
  • 250 Watts nominal continuous power handling RMS


Quick Specs
  • Nominal Impedance: Dual 2 - Ohm
  • Sensitivity: 86.9 dB @ 1Watt / 1meter


Dimensions:
  • Mounting depth: 4.319 inches (109.7 mm)
  • Cutout diameter: 9.125 inches. (232 mm)
More Information
Manufacturer Rockford Fosgate
Part Number R2D2-10
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 2 ohm
FS 34.6 Hz
QES 0.50
QMS 6.93
QTS 0.47
RE 3.9
VAS 39 L
Xmax (millimeters) 6.5
Sensitivity 87 dB
Frequency Response 45 - 250 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 200 Watts
Power Handling Peak 500 watts
Shallow Mount Subwoofer No
Mounting Depth 4.00 Inches
Cutout Dimensions 9.00 Inches
Sealed Enclosure Recommended Size 0.59 ft3
Ported Enclosure Recommended Size 1.4 ft3
Color Black
Warranty 1 Year
UPC Code 780687332532
Return period 30 days
Exchange period 30 days
