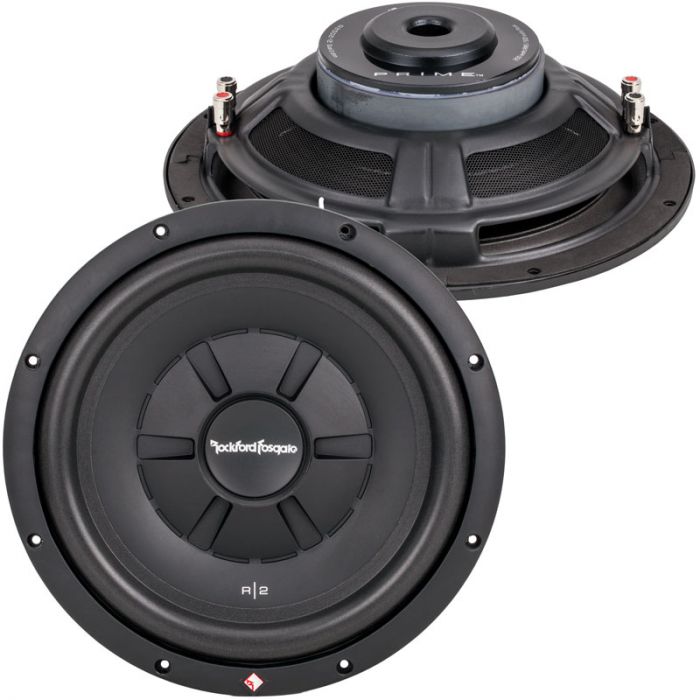

Rockford Fosgate R2SD4-10 10" Prime R2 4-Ohm DVC Shallow Subwoofer for Car
$106.99
Out of stock
SKU
R2SD4-10
Expert Knowledge
Talk to a specialist
- 10” DVC shallow subwoofer with dual 4-Ohm voice coils
- 200 Watts RMS capability
- Elevated motor structure that reduces the speaker depth and lets the subwoofer fit into the tightest spaces
- StampCast basket with integrated spider venting that keeps the motor cool
- Mica injected polypropylene cone
- Linear spider with embedded 16 AWG tinsel leads for reliable performance
- Anodized Aluminum Voice Coil Former that dissipates thermal build-up on the voice coil
- 12 AWG compression terminals
The Unit Include: 10 inch subwoofer driver, Installation hardware and Instruction Manual
Rockford Fosgate R2SD4-10 10" Prime R2 4-Ohm DVC Shallow Subwoofer:
Power Handling Max:
Power Handling RMS:
Quick Specs:
Dimensions:
Rockford Fosgate R2SD4-10 10" Prime R2 4-Ohm DVC Shallow Subwoofer:
- Features:
- 10 inch subwoofer with dual 4 ohm voice coils
- Unique low profile "inset" design, high excursion woofer for placement under or behind seats where there is minimal space
- Monolithic injected polypropylene cone for added rigidity
- Copper voice-coil with anodized aluminum voice coil former for better cooling
- Proprietary attached tear & fatigue resistant poly-cotton spider
- High density compressed half-roll sealed poly-foam surround
- Optimized motor magnetics with extended pole and bumped vented backplate
- Suited for sealed enclosure applications, capable for use in vented boxes as well
- StampCast basket with integrated spider venting
- Linear spider with embedded 16 AWG tinsel leads
- 12 AWG compression terminals
- Heavy gauge stamped steel frame
- Shallow Motor Assembly
- Integrated PVC trim ring
- Sold individually
Power Handling Max:
- Maximum Power: 400 Watts
Power Handling RMS:
- 200 Watts nominal continuous power handling RMS
Quick Specs:
- Nominal Impedance: Dual 2 -Ohm
- Sensitivity: 83 dB @ 1Watt / 1meter
Dimensions:
- Mounting depth: 3.417 inches. (86.8 mm)
- Cutout diameter: 9.125 in. (232 mm)
| Manufacturer | Rockford Fosgate |
|---|---|
| Part Number | R2SD4-10 |
| Driver Size | 10 inch |
| Subwoofer Shape | Round |
| Voice coils | Dual voice coil |
| Impedance (per voice coil) | 4 ohm |
| FS | 39.3 Hz |
| QES | 0.81 |
| QMS | 7.00 |
| QTS | 0.73 |
| RE | 6.60 |
| VAS | 21.7 L |
| Xmax (millimeters) | 8.0 |
| Sensitivity | 82 dB |
| Frequency Response | 45 - 250 Hz |
| Sub enclosure type | Banpass, Ported / Vented, Sealed |
| Power Handling RMS | 200 Watts |
| Power Handling Peak | 400 watts |
| Shallow Mount Subwoofer | Yes |
| Mounting Depth | $3.42 |
| Cutout Dimensions | $9.13 |
| Sealed Enclosure Recommended Size | 0.70 ft3 |
| Ported Enclosure Recommended Size | 1.4 ft3 |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 780687339814 |
| Return period | 30 days |
| Exchange period | 30 days |
