Rosen CS-NISSERIES-US Nissan 6.5 inch Double Din Navigation Receiver with Pandora, Bluetooth, SiriusXM ready and iPod control

Rosen CS-NISSERIES-US Nissan 6.5 inch Double Din Navigation Receiver with Pandora, Bluetooth, SiriusXM ready and iPod control

Rosen CS-NISSERIES-US Nissan 6.5 inch Double Din Navigation Receiver with Pandora, Bluetooth, SiriusXM ready and iPod control

More Views

Rosen Entertainment
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Rosen Entertainment CS-NISSERIES-US Product Highlights

  • In-Dash AM/FM, CD, MP3, Navigation Receiver for select 2007-Up Nissan Vehicles
  • Easy plug and play installation
  • Retains factory steering wheel controls
  • Parrot Bluetooth hands-free interface for voice music streaming & Voice Dialing
  • Complete iPod control allows control from both the iPod and stereo
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: Double DIN radio, Wiring harness, Mounting hardware, Back strap, Double DIN Mounting cage, Removal keys, GPS sensor, Input harness, Output harness, Double DIN Trims, Steering wheel harness, 3.5mm input harness, Audio output harness, Magnetic pad, and Instruction manual

Rosen CS-NISSERIES-US 6.5 inch Double Din Navigation Receiver with Pandora, Bluetooth, SiriusXM ready and iPod control for select 2007-Up Nissan Vehicles features:

Features:

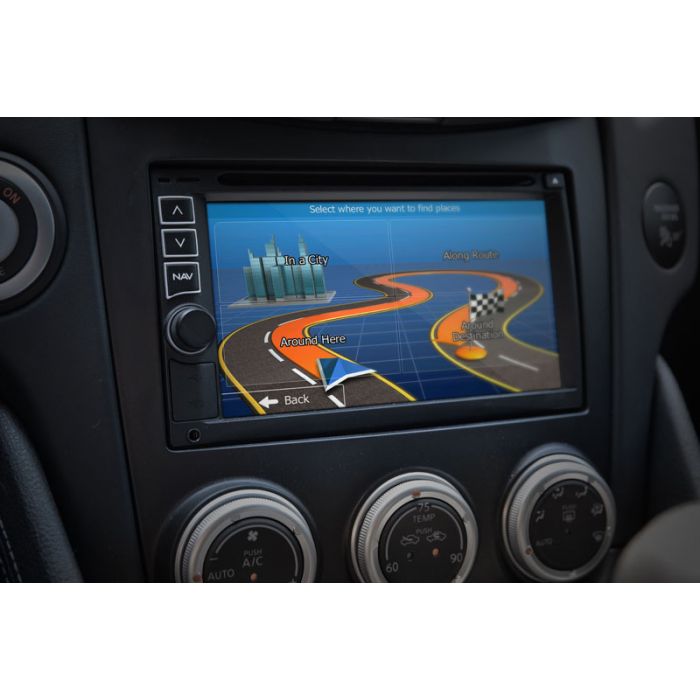

  • 6.5 inch HD wide Double DIN In-Dash TFT and LCD Touch screen monitor with GPS navigation
  • Built in Parrot Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
  • LCD screen Resolution: 800 x 480 Pixels
  • LED Backlighting
  • 6 LCD backlight color options
  • 7 color button illumination
  • 8 Selectable backgrounds
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 17 watts RMS
  • 12 hours or 24 hours clock display
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Easily accessible with wireless remote and graphic touch screen
  • Jpeg picture viewer
  • iPod interface control with Album Art PP1013 cable
  • Satellite radio control with optional PP1010 cable
  • Satellite radio requires SCC1 tuner
  • Pandora Control for iPhone®
  • Built in DSP with nine EQ and Sounfields (User / Flat / Jazz / Pop / Classic /Rock/ News / Urban / Rave/ Movie/Techno)
  • Dual zone control
  • Advanced Touch Slide Operation
  • Rear-View Camera input
  • Built in steering wheel interface control
  • 1 year warranty


Media playback features:
  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP3, MPEG4, WMA
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WMA Audio Playback on CD/DVD/USB/SD Card
  • MP3 ID3 tag information, display artist and song information
  • Jpeg image payback on SD Card
  • H.264/WMA Video Playback on CD/DVD/USB/SD Card
  • Voice Recognition Support
  • Pandora® Radio App Compatible with proper cable


Audio features:
  • D/A Converter for high quality digital to analog conversion
  • 3-band parametric equalizer with preset and custom options with multiple frequency centers
  • High-Pass filter with variable slopes and crossover frequencies
  • Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160


Tuner features:
  • AM & FM tuner with 18 FM and 12 AM preset stations memory
  • RDS (Radio data service) Tuner
  • SiriusXm radio ready with SCC1 Sirius XM tuner


Bluetooth features:
  • Bluetooth technology from the premier manufacturer Parrot for un-parraleled quality
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 2.0+ certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above


Inputs and outputs:
  • 3 Sets of 4V preamp outputs (Front, Rear and Subwoofer)
  • Front 3.5mm Audio Video input
  • Rear Input for Rear Camera
  • 1 Rear Audio video output to connect to an external monitors
  • Rear Audio video input for connection to external source
  • Front USB connection accepts up to a 32Gb
  • Rear USB connection accepts up to a 32Gb
  • SD memory card reader behind faceplate accepts up to a 32Gb memory card
  • Steering wheel control input requires ASWC steering wheel interface
  • Direct connect for iPod with cable - Full on screen control see above for cables


Navigation features:
  • iGO Primo 2.0 navigation software
  • Built in Navigation with 16Gb storage
  • Navigation has mapping information with US, Alaska, Hawaii, and Puerto Rico. Please call for US and Canada or US, Canada, and Mexico as this is sold seperately
  • Hands-free voice guidance with text to speech prompts, so one can keep his eye on road while driving
  • 11 million points of interest and offers real time traffic
  • Lane assist with junction view
  • Detailed 3D topography
  • 3D and 2D views with advanced topography
  • 5 Voice options: English, Spanish, Japanese, Korean, and Mandarin-Chinese
  • Road speed limit warnings
  • Auto detour options


Dimensions:
  • Double DIN chassis
  • Dimensions: 7"W x 7-1/4"D x 4"H


Warranty:
  • 1 year warranty


Fits the following vehicles:
  • 2010 - 2013
  • Nissan
  • Cube
  • 2011 - 2013
  • Nissan
  • Juke
  • 2010 - 2012
  • Nissan
  • Pathfinder
  • 2010 - 2013
  • Nissan
  • Rogue
  • 2010 - 2012
  • Nissan
  • Sentra
  • 2011 - 2013
  • Nissan
  • Utility Van
  • 2007 - 2013
  • Nissan
  • Versa

Technical Specifications

Manufacturer Rosen Entertainment
Part Number CS-NISSERIES-US
Chassis Size Double DIN
Faceplate features Detachable face plate
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage No
LCD Screen Size 7 inch - 8 inch
Illumination color No
LCD Screen Brightness No
Swivel Screen No
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800x480
Front camera input N/A
Back up camera input Yes
Audio Video inputs No
Front mounted auxiliary input 3.5 mm audio input
Audio Video Outputs 2 Audio/Video outputs
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control Yes
iPod Audio Connection Yes, Built in
iPod Video Connection Yes, Built in
SD Card input Yes, microSD Card
USB input Dual USB
HDMI input No
HDMI output No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology N/A
NTSC/PAL NTSC and PAL
Audio Formats Mpeg-3, WMA
Video Formats Divx, MPEG-4
MP3 Playback Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) N/A
HD Radio No
Radio Data Service - RDS No
Satellite Radio Sirius XM Ready
Navigation Built in
GPS Maps USA
Text to Speech Yes
Traffic Tuner No Traffic
Points of Interest 10 - 11 Million
Integration Module N/A
Steering Wheel Control Input Yes, Built in control
Wireless Remote Control Yes
TV Tuner No Tuner
VGA input No - VGA input
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year N/A
Vehicle Brand N/A
Vehicle Model N/A
UPC Code 6-86981-06463-9

Write Your Own Review

You're reviewing: Rosen CS-NISSERIES-US Nissan 6.5 inch Double Din Navigation Receiver with Pandora, Bluetooth, SiriusXM ready and iPod control

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by info@yahoo.com, Saturday, June 12, 2055

Question:

Will this Double Din radio fit my vehicle?

Answers:

  • Posted by Store Owner on Wednesday, June 13, 2018
    A:
    1. The first way to tell if this will fit your vehicle is to check the size. You need a Double DIN opening, with no obstructions in-front of the screen area.
    2. To check the size you can visit www.metraonline.com
    3. Enter your vehicle information in the section labeled Vehicle Fit Guide
    4. If a Double DIN dash kit is available you can use this radio.
    5. Click on Metra Radio Install kits to see what part number you need for your Double Din Dash trim
    6. Click on Metra Antenna adaptors to see what part number you need for your Antenna Adapter
    7. Click on Metra Radio Harness Into Car to see what part number you need for your Wiring Harness. Standard harnesses will only work for basic audio systems. If your vehicle is equipped with an amplified audio system you will need a Radio Replacement Interface, those are available by clicking on Replace Factory Radio
    8. Click on Replace Factory Radio to see what part number you need for your Radio Replacement Interface You may see more than one interface listed depending on vehicle options such as steering wheel control, factory back-up camera and various factory audio systems.
    9. You can also call, email or chat with us and we can select the right installation items for your vehicle.
Posted by Jeffrey, Tuesday, April 15, 2014

Question:

I have 2012 Nissan Pathfinder with 7" LCD screen which shows all the information of the vehicle - radio, cd, fuel consumption, settings etc but not a dvd and no nav. Would this system works? Can I still view and use the vehicle information from the original setting?

Answers:

  • Posted by Salvador Diaz on Tuesday, April 15, 2014
    A:

    No, this is a media head unit only.. It will only allow for DVD and music playback. Will not show you any OEM functions like fuel consumption.Please feel free to give us a call at 800-363-0096 for further details.
