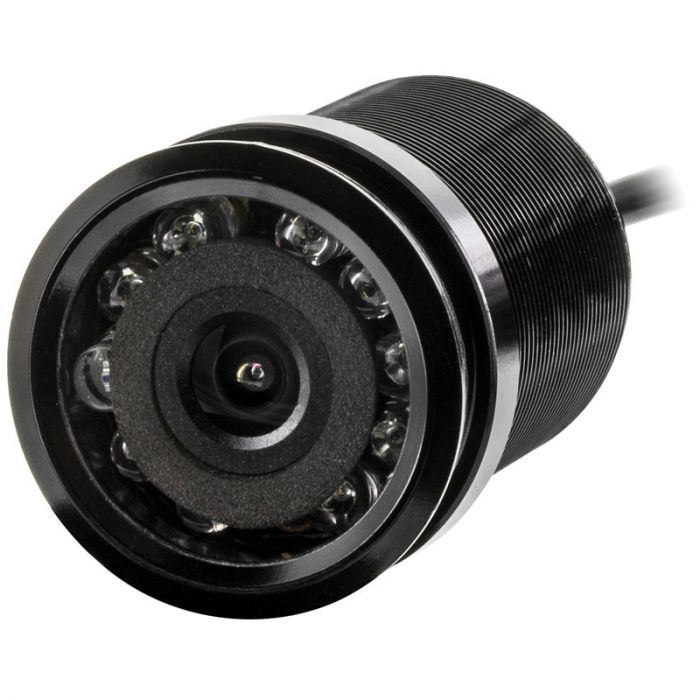

Accelevision RVC1200IRN Flush Mount Bullet Back Up Camera IR - Standard Image

Accelevision RVC1200IRN Flush Mount Bullet Back Up Camera IR - Standard Image

Accelevision RVC1200IRN Flush Mount Bullet Back Up Camera IR - Main

More Views

Accelevision
Ships Free!

Overall Rating 4.8 (Based on 1 reviews)

Accelevision RVC1200IRN Product Highlights

  • Universal flush mount vehicle camera
  • Non-Reverse image for front use
  • 1/3 inch color Sharp CCD sensor
  • (10) Built in IR LED's for illumination for viewing in complete darkness or nightvision
  • 120° wide viewing angle
  • Dimension with flange: 1-3/8" (Length) x 2-1/8" (Diameter)
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: Flush front mount vehicle camera, (4) pin RCA adapter cable

Accelevision RVC1200IRN Flush Mount Bullet Back Up Camera IR - Standard Image
    Features
  • Universal flush front mount vehicle camera
  • Non-reverse image for front camera use
  • (10) Built in IR LED's for illumination for viewing in complete darkness or nightvision
  • 120° wide viewing angle
  • 1/3 inch color Sharp CCD sensor
  • IP67 rated
  • Resolution 420 TV lines
  • Active pixels: 512 (H) x 492 (V)
  • Image sensor: CCD
  • Operating Temperature: -20° C - 70° C
  • AGC: auto White balance: auto
  • Electronic shutter: 1/60 - 1/15,000 second
  • Current consumption: Max 100mA. Power supply 12V DC
  • .0 Lux light sensitivity
  • Black color housing
  • Power consumption: 250 ma @ 12 Vdc
    Dimensions:
  • Dimension without flange: 2-3/16" (Length) x 1-3/8" (Diameter)
  • Dimension with flange: 2-3/8" (Length) x 1-3/8" (Diameter)
  • Drill diameter: 31mm or 1-3/16"

Technical Specifications

Manufacturer Accelevision
Part Number RVC1200IRN
Camera Sensor type CCD
Back up camera type Bullet Camera
License Plate Camera Type No
Camera sensor diameter 4.9 mm
Viewing Angle 120 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image No - Normal Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 8 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Overall Height 1.38 Inches
Overall Length 2.38 Inches
Overall Width 1.38 Inches
Warranty 1 Year
UPC Code No

Customer Reviews

Accelevision RVC1200IRN
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I purchased the Accelevision RVC1200IRN approximately two years ago and I must say it is durable, well constructed and gives a very clear view of what's behind me when parking. I installed the camera into the tailgate of my truck (it didn't come with one) and wired everything up to my stereo. Great product at a great price. Thanks guys! (Posted on 12/18/2018)
