Safesight TOP-5207R RV Commercial Side mount Back Up Color CMOS Camera with 120 degree Wide Angle Night Vision

Rating:
100% of 100
$106.99
In stock
SKU
TOP-5207R

Key Features

  • Side mount camera
  • 1/3" Color CMOS Image Sensor
  • IR nightvision
  • Rugged housing for added durability
  • 4-Pin connector
  • 120 degrees Wide Angle Camera
  • Cuttable wire to switch between reverse and non reverse image
Unit includes: Camera, Camera housing, Mounting hardware, Trim cover, and Instruction manual

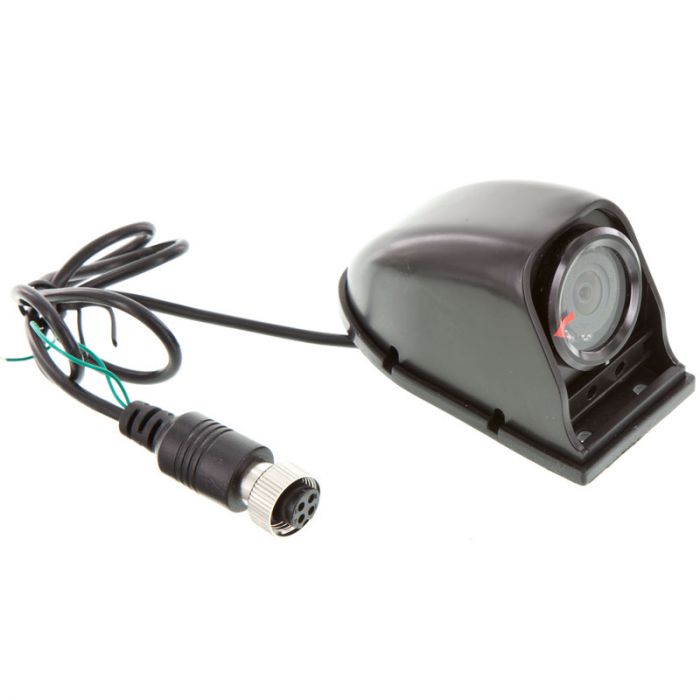

Safesight TOP-5207R Side mount Color CMOS Camera
    Models
  • TOP-5207R-B: Left Side Mount looking back
  • TOP-5207R-A: Right Side Mount looking back
  • TOP-5207R-C: Top Mount looking down

  • Compatibility
  • Camera is compatible with Safesight Back Up Camera Systems and multi-input monitors
  • Camera is designed for side mounting
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Bus, Van, Tractor, Trailer, Crane, Dirt Wagon, etc)

  • Features:
  • High Resolution Side Mount Camera
  • Camera is not adjustable within housing
  • 1/3" Color CMOS Image Sensor
  • 420 TV lines of resolution
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Automatic IR Infrared LED Night Vision
  • Weatherproof, Waterproof, Shockproof and High Temperature Resistance
  • Side Mount Application
  • High impact plastic side mount housing that prevents permanent damage to the camera
  • Rubber base for vibration isolation
  • 4 Pin Connector
  • Cuttable wire to switch between reverse and non reverse image
  • Dimensions: 3-1/4" (L) x 2" (H) x 1-5/8" (D)
More Information
Manufacturer Safesight
Part Number TOP-SS-5207R
Camera Sensor type CCD
Back up camera type Side Mount Camera
Viewing Angle 120 degrees
Waterproof ingress protection Waterproof
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone No
Connector Type 4 Pin Connector
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
