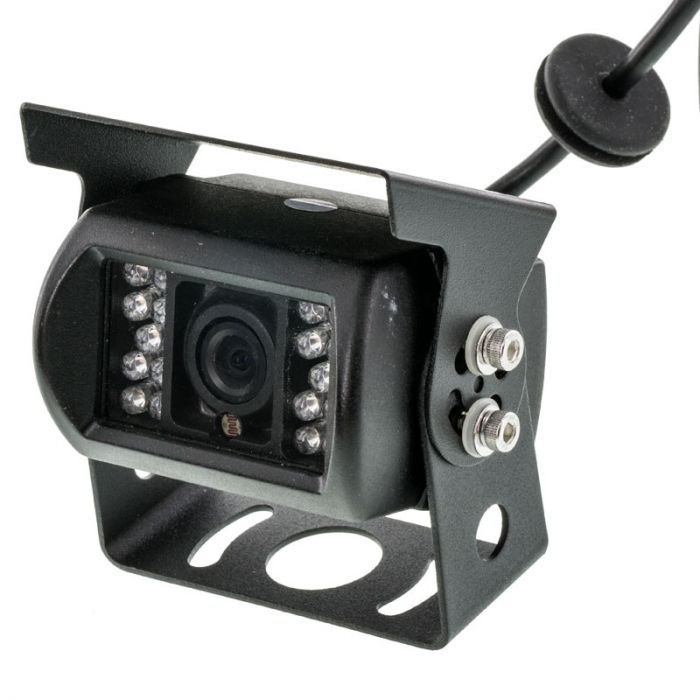

Accelevision RVC500SE Surface Mount Back Up Camera with Adjustable Anti-Glare Shield

$74.99
In stock
SKU
RVC500SE

Key Features

  • Surface mount back commercial back up camera with IR illumination
  • Rugged Aluminium housing for added durability
  • Adjustable sun shade to protect from glare
  • 1/4” color Sharp CCD Image sensor
  • 18 IR LED's for 30 foot illumination range in perfect darkenss
Unit includes: Reverse back up camera, RCA Adapter cable, Power plug, Mounting pad, and Instruction manual

Accelevision RVC500SE Surface Mount Back Up Camera with Adjustable Anti-Glare Shield
    Features:
  • Surface mount back commercial back up camera with IR illumination
  • Rugged Aluminium housing for added durability
  • Adjustable sun shade to protect from glare
  • 1/4” color Sharp CCD Image sensor
  • IP rating: IP67
  • Effective Pixels: 510 x 492
  • Resolution (TV lines): 420
  • Lens Angle: 120°
  • 18 IR LED's for 30 foot illumination range in perfect darkenss
  • Color coded parking grid lines for easier guidance and distance control
  • Power supply: DC 12V
  • Power consumption: less than 300ma
  • -30° C - 70° C Operating temperature
    Dimensions:
  • 3-5/8" (W) x 3-1/8" (H) x 3-1/8"(D)
More Information
Manufacturer Accelevision
Part Number RVC500SE
Camera Sensor type CCD
Back up camera type Surface Mount Camera
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination Yes
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Warranty 1 Year
UPC Code 736836542888
Return period 30 days
Exchange period 30 days
